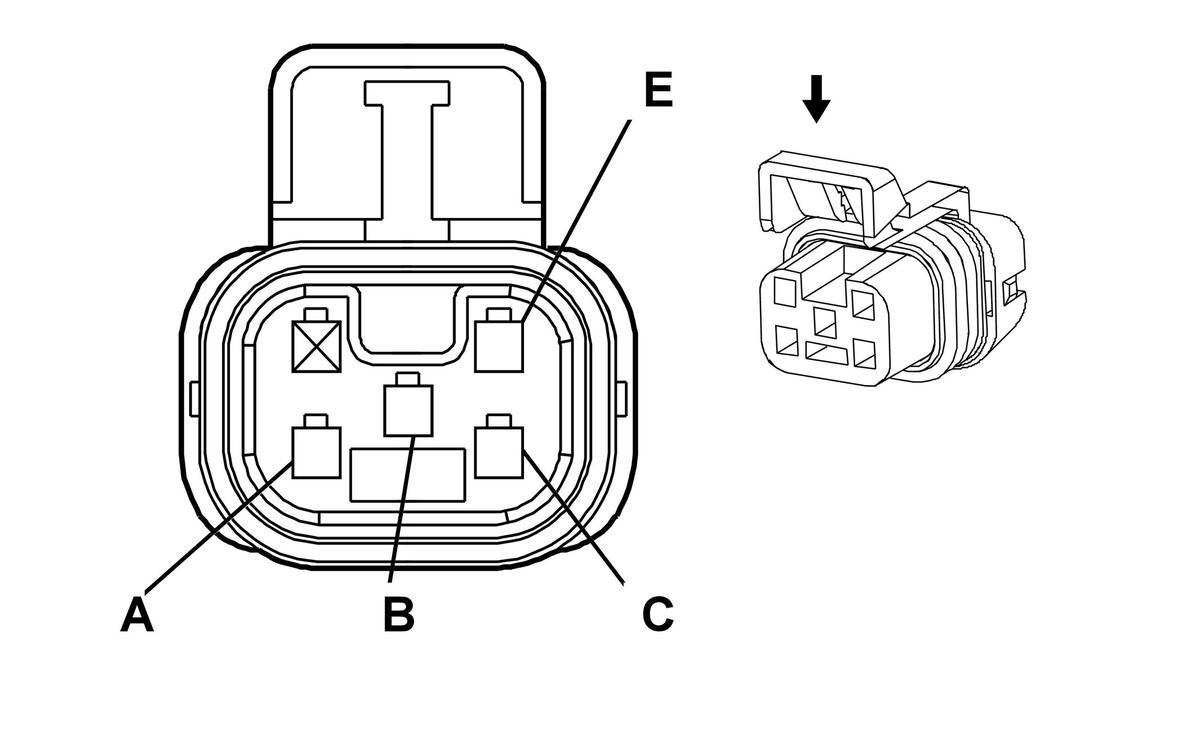

Front Axle Actuator Connector End View
Front Axle Actuator Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 15324541
- 4-Way F Metri-Pack 150 Series Sealed (BLU)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
BLK/WHT |
1695 |
Axle Switch Signal |
| B |
LT BLU |
1296 |
Axle Actuator - Control |
| C |
BRN |
241 |
Ignition 3 Voltage |
| E |
BLK |
2150 |
Ground |
