Fuel Pump/Sender Connector End View - Secondary

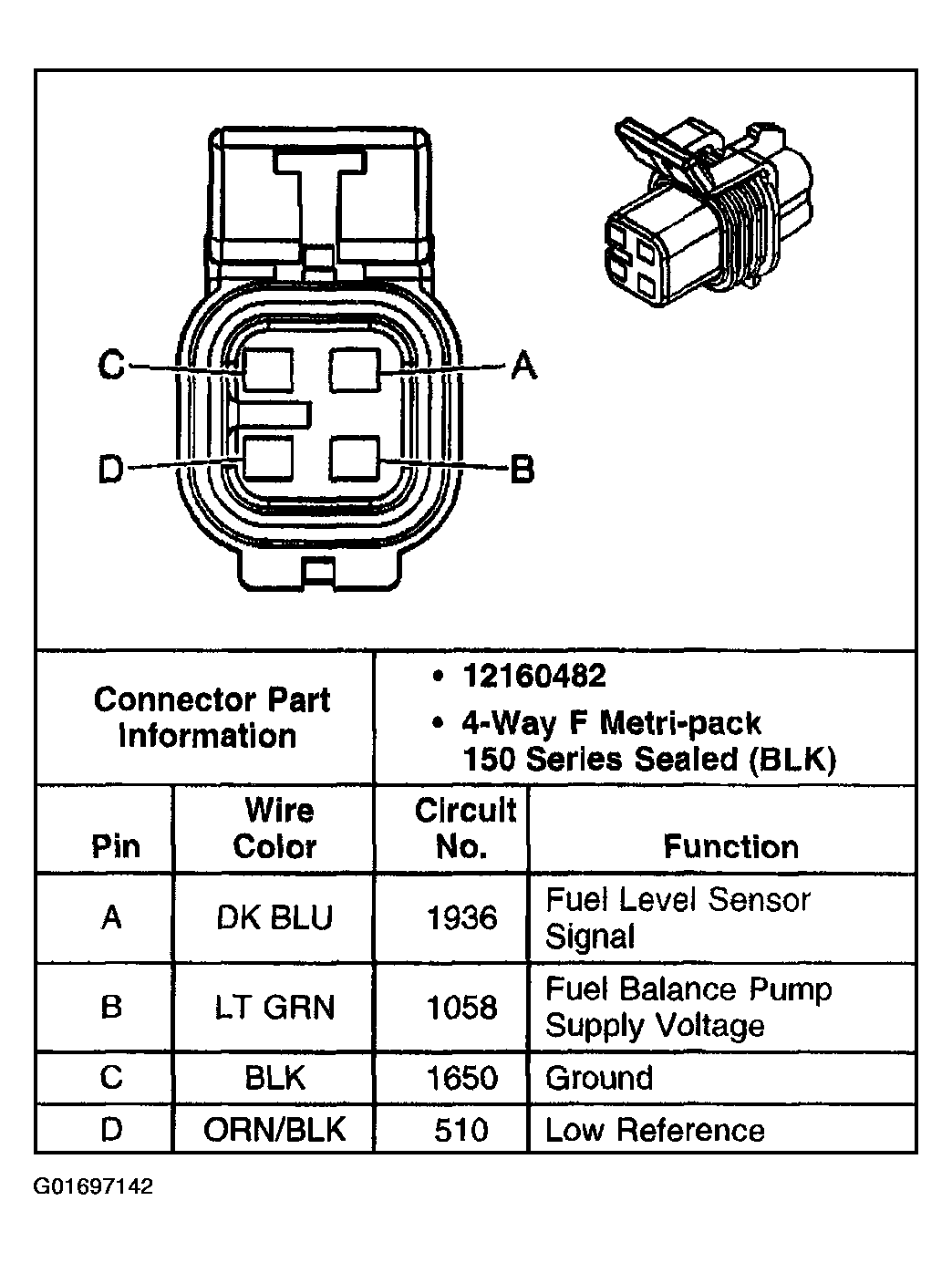

Fig 1: Fuel Pump/Sender Connector End View - Secondary
G01697142Courtesy of GENERAL MOTORS CORP.
