Identifying APP Sensor Connector End View
Identifying APP Sensor Connector End View

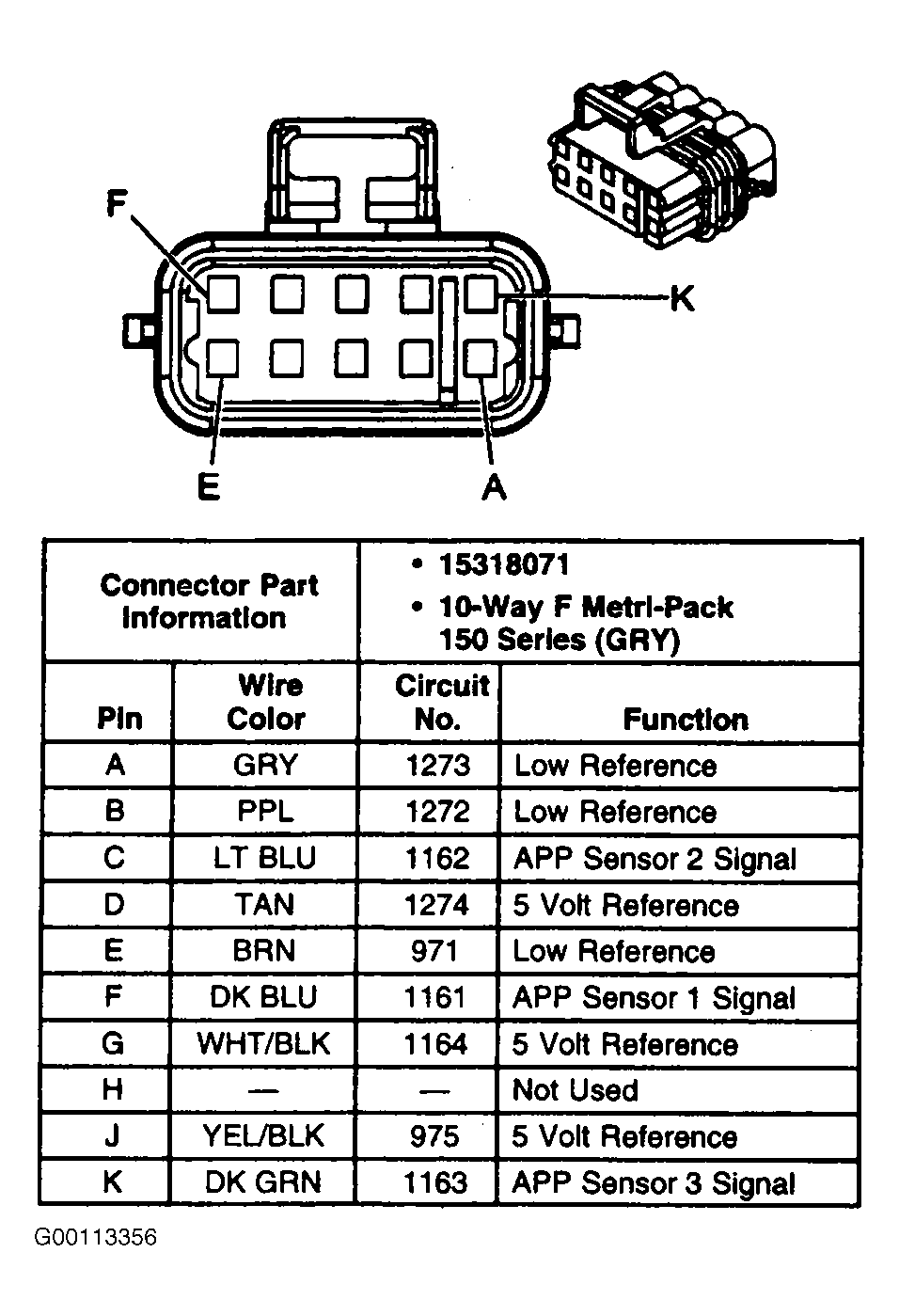

Fig 1: Identifying APP Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
