Identifying CMP Sensor Connector End View

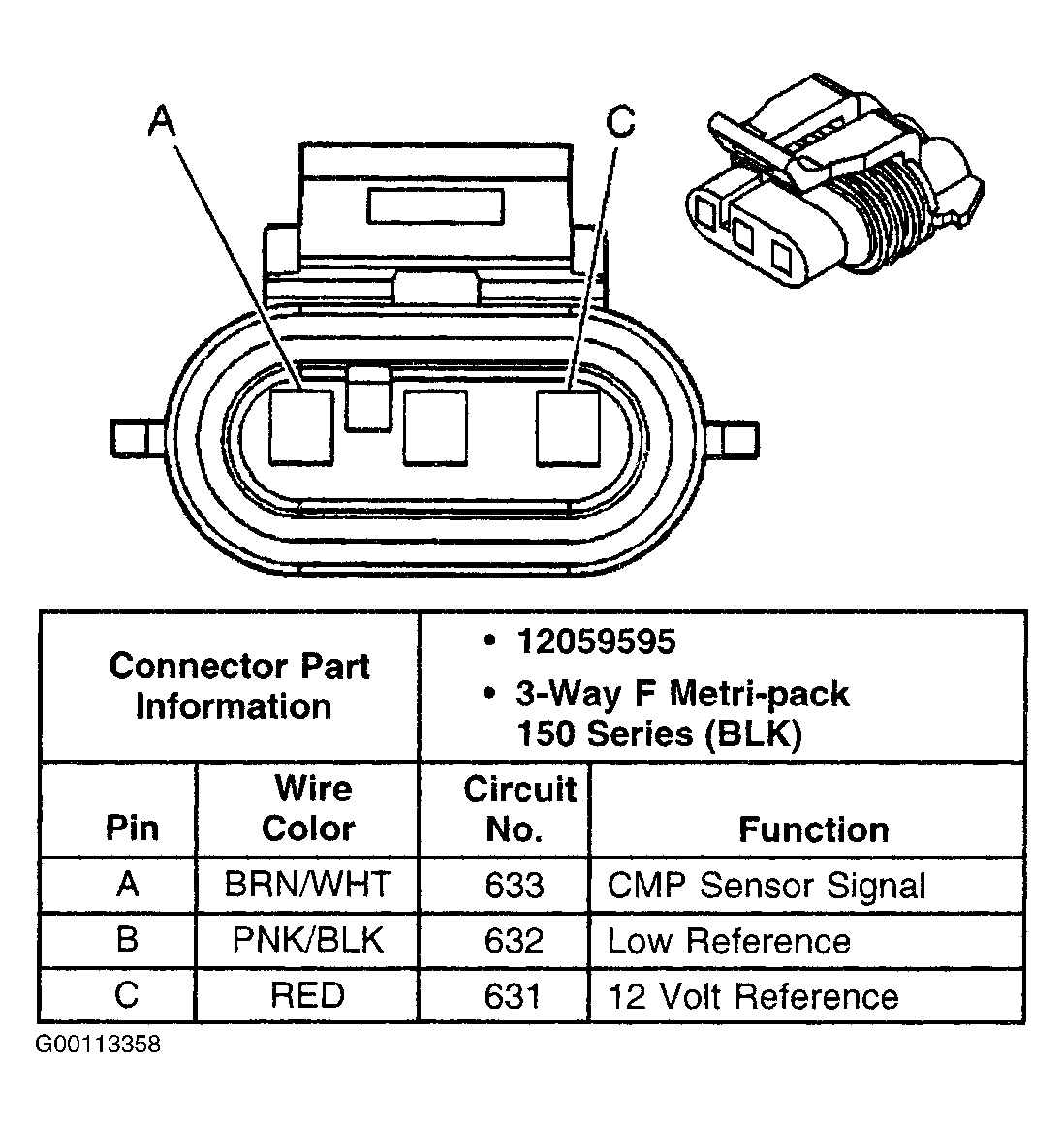

Fig 1: Identifying CMP Sensor Connector End View
G00113358Courtesy of GENERAL MOTORS CORP.

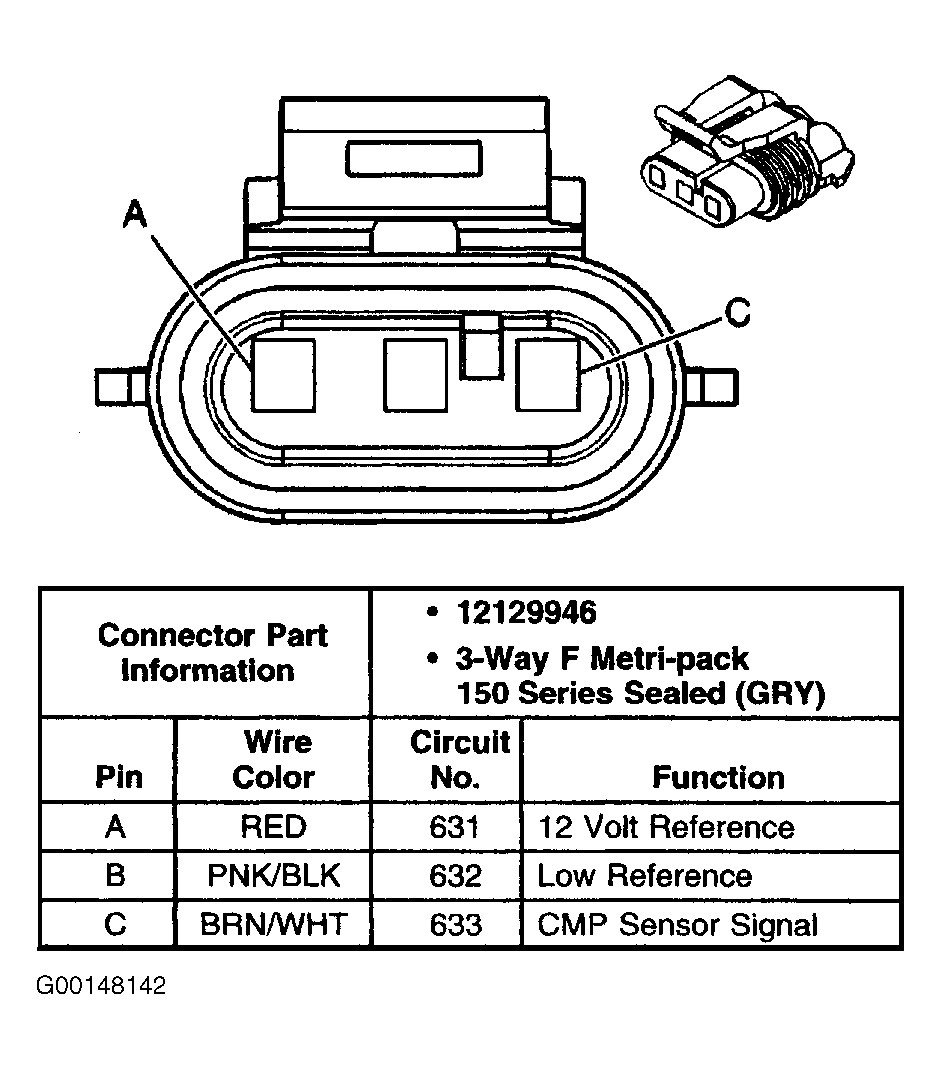

Fig 1: Identifying CMP Sensor Connector End View
G00148142Courtesy of GENERAL MOTORS CORP.
