Identifying FTP Sensor Connector End View

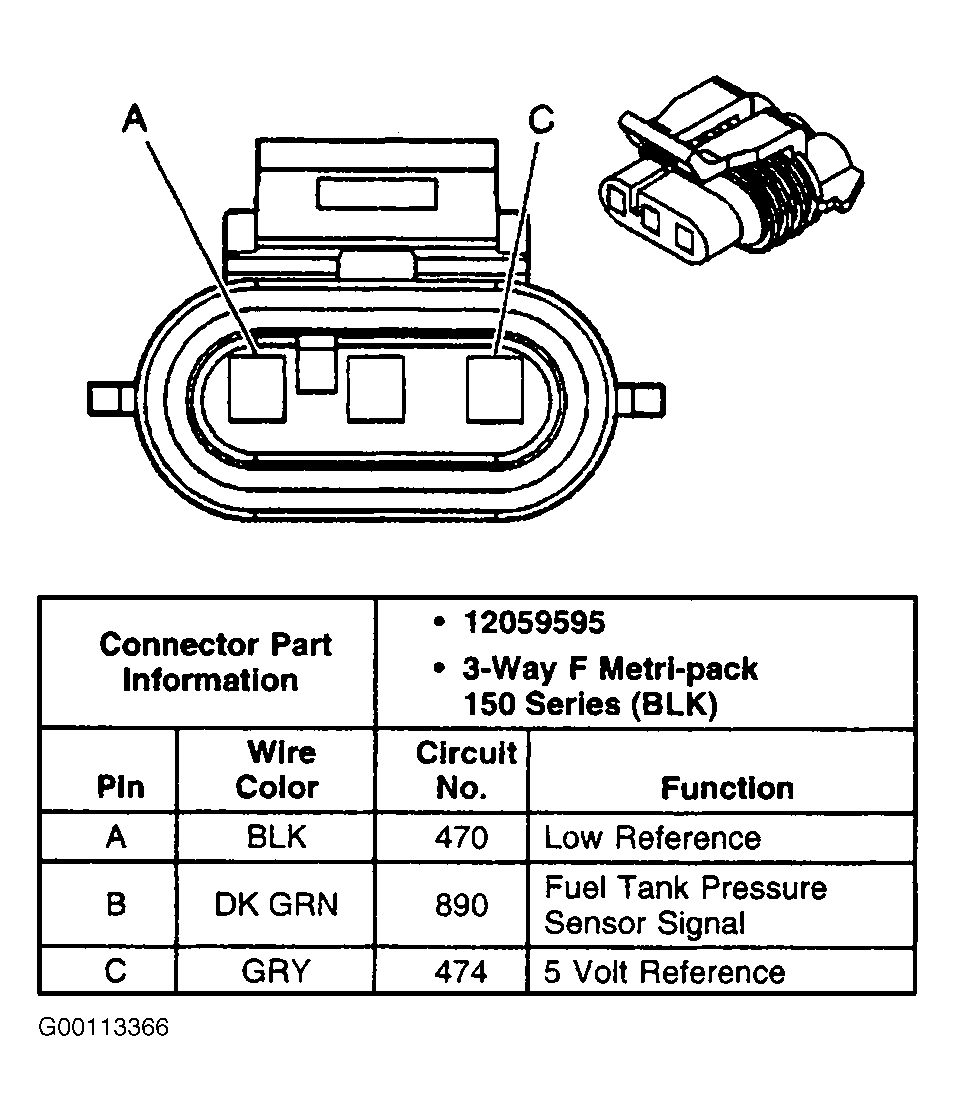

Fig 1: Identifying FTP Sensor Connector End View
G00113366Courtesy of GENERAL MOTORS CORP.


Fig 1: Identifying FTP Sensor Connector End View
G00113366Courtesy of GENERAL MOTORS CORP.
