OEM Connector End Views
›
Connector End Views
›
Identifying HVAC Control Module-C1 Harness Connector End View
Identifying HVAC Control Module-C1 Harness Connector End View

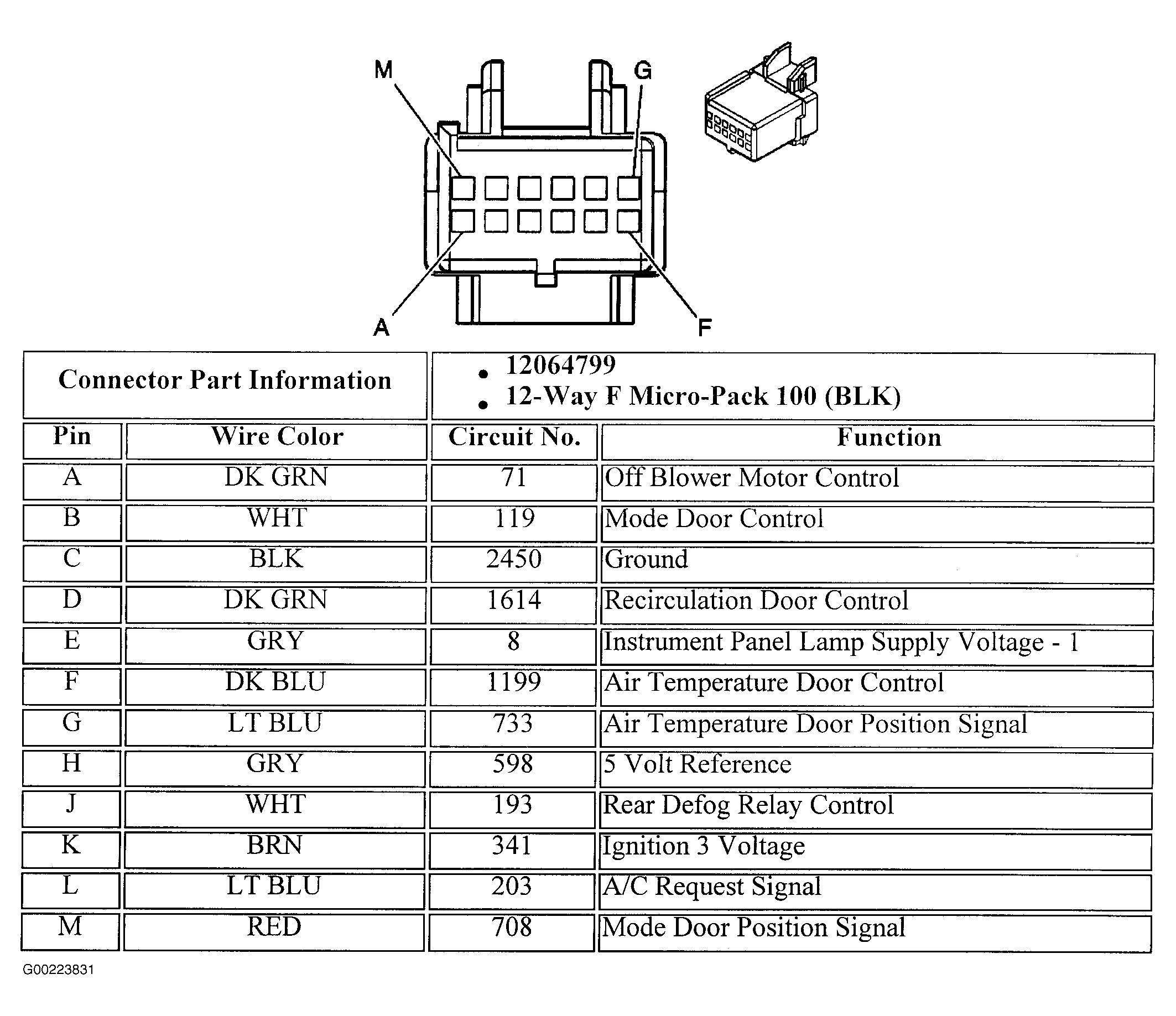

Fig 1: Identifying HVAC Control Module-C1 Harness Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
