Identifying Input Shaft Speed Sensor Connector End View (Harness Side)
Identifying Input Shaft Speed Sensor Connector End View (Harness Side)

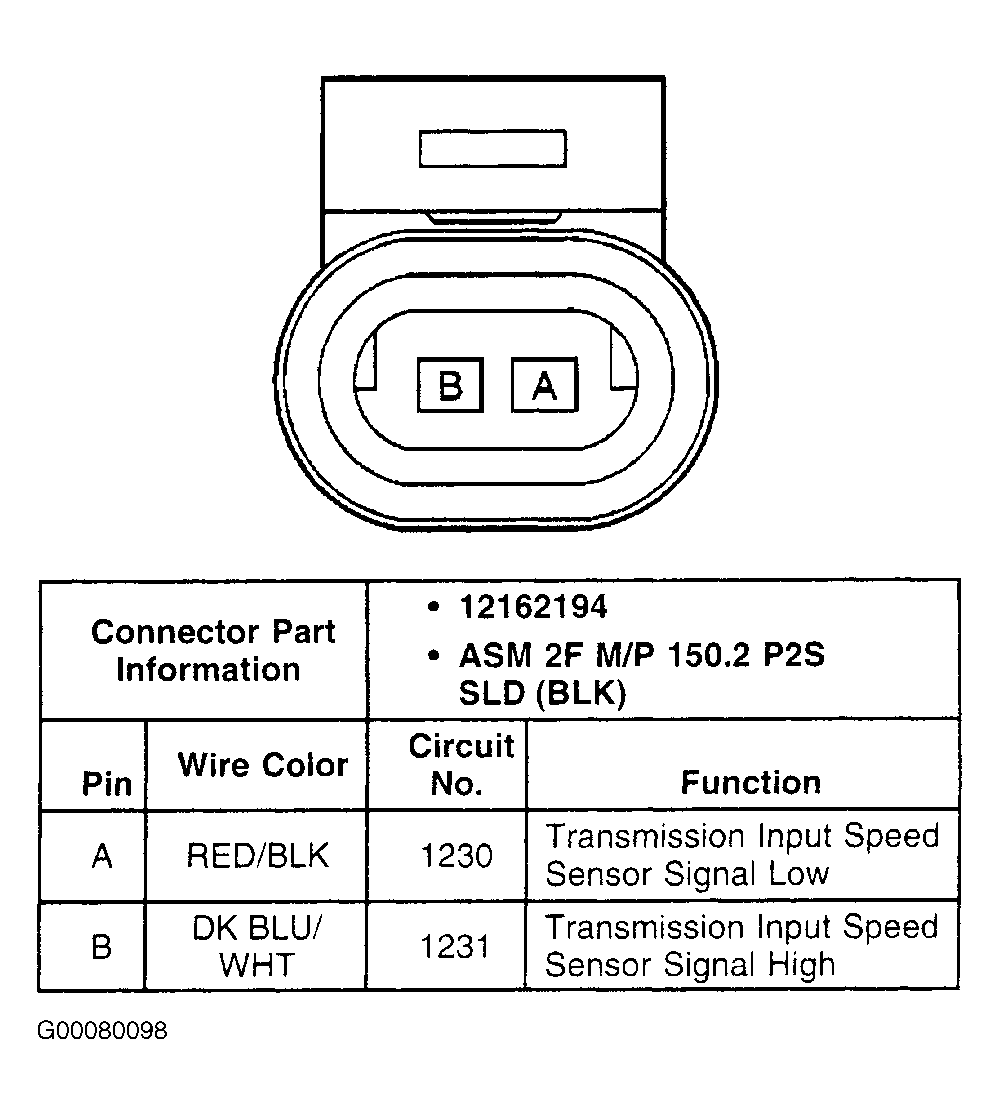

Fig 1: Identifying Input Shaft Speed Sensor Connector End View (Harness Side)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
