Identifying MAP Sensor Connector End View

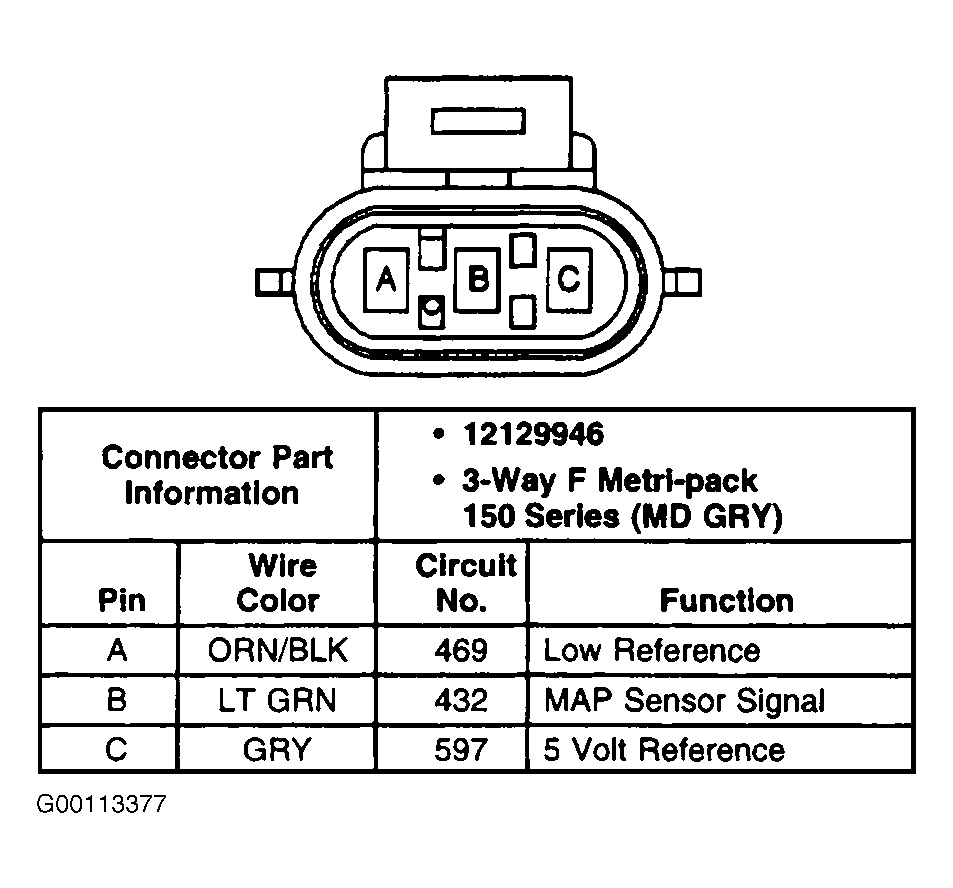

Fig 1: Identifying MAP Sensor Connector End View
G00113377Courtesy of GENERAL MOTORS CORP.

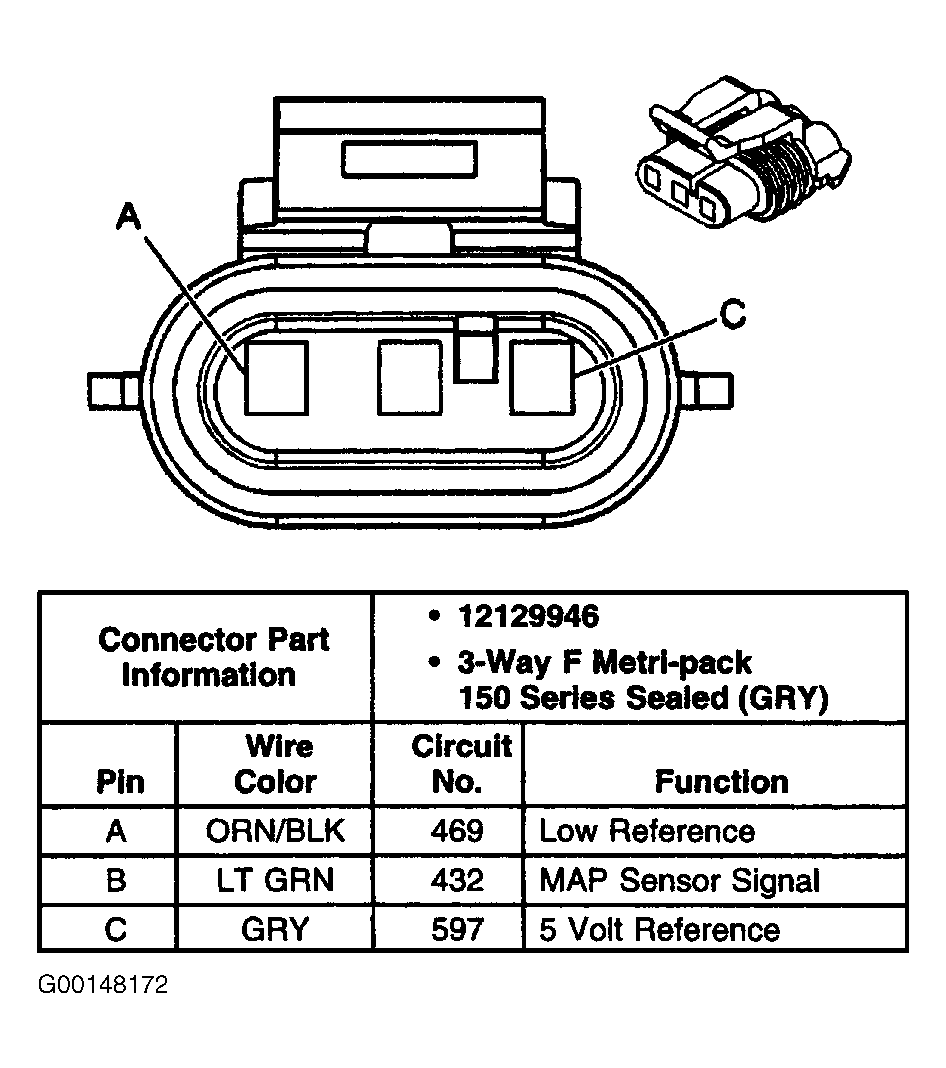

Fig 1: Identifying MAP Sensor Connector End View
G00148172Courtesy of GENERAL MOTORS CORP.
