Identifying TP Sensor Connector End View

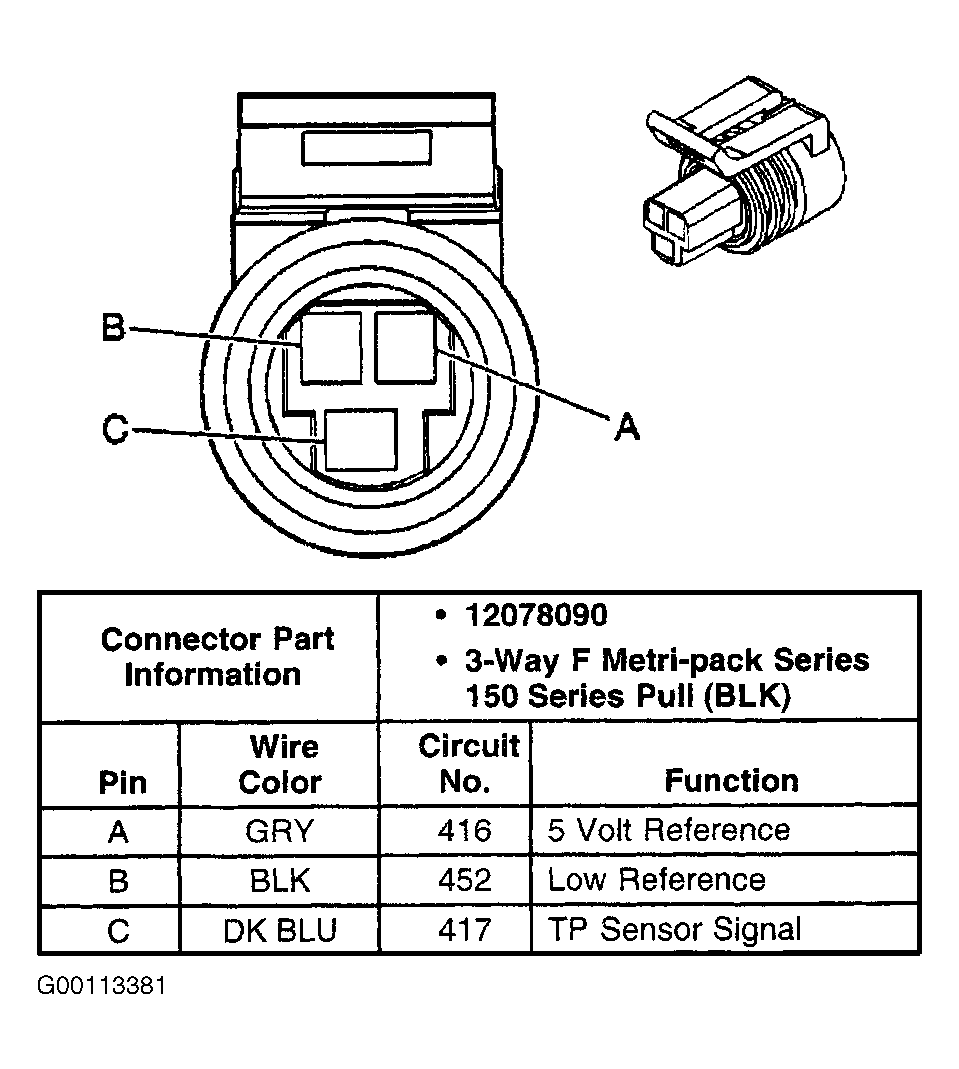

Fig 1: Identifying TP Sensor Connector End View
G00113381Courtesy of GENERAL MOTORS CORP.

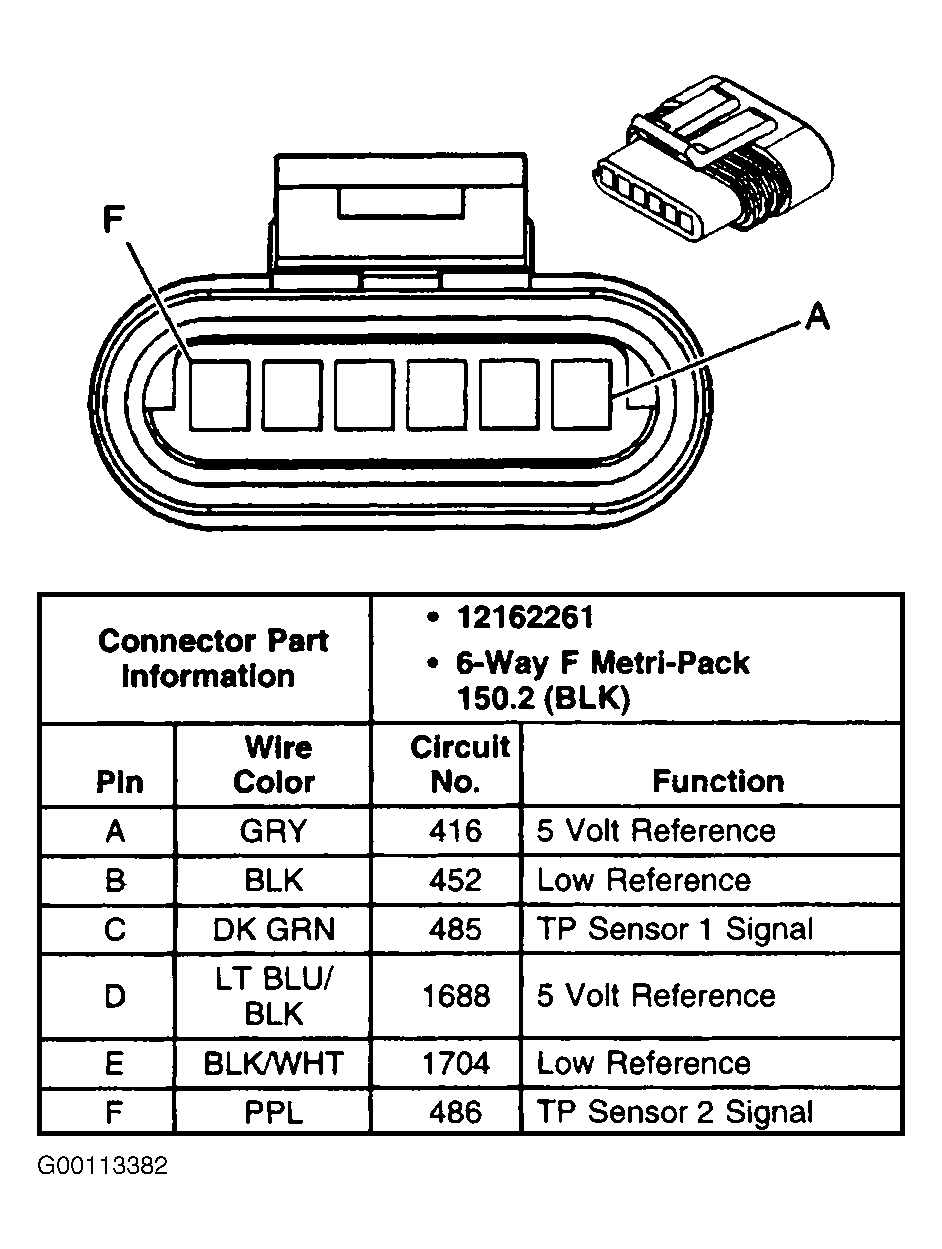

Fig 1: Identifying TP Sensor Connector End View
G00113382Courtesy of GENERAL MOTORS CORP.
