Identifying Transmission In-Line 20-Way Connector End View (Engine Side)

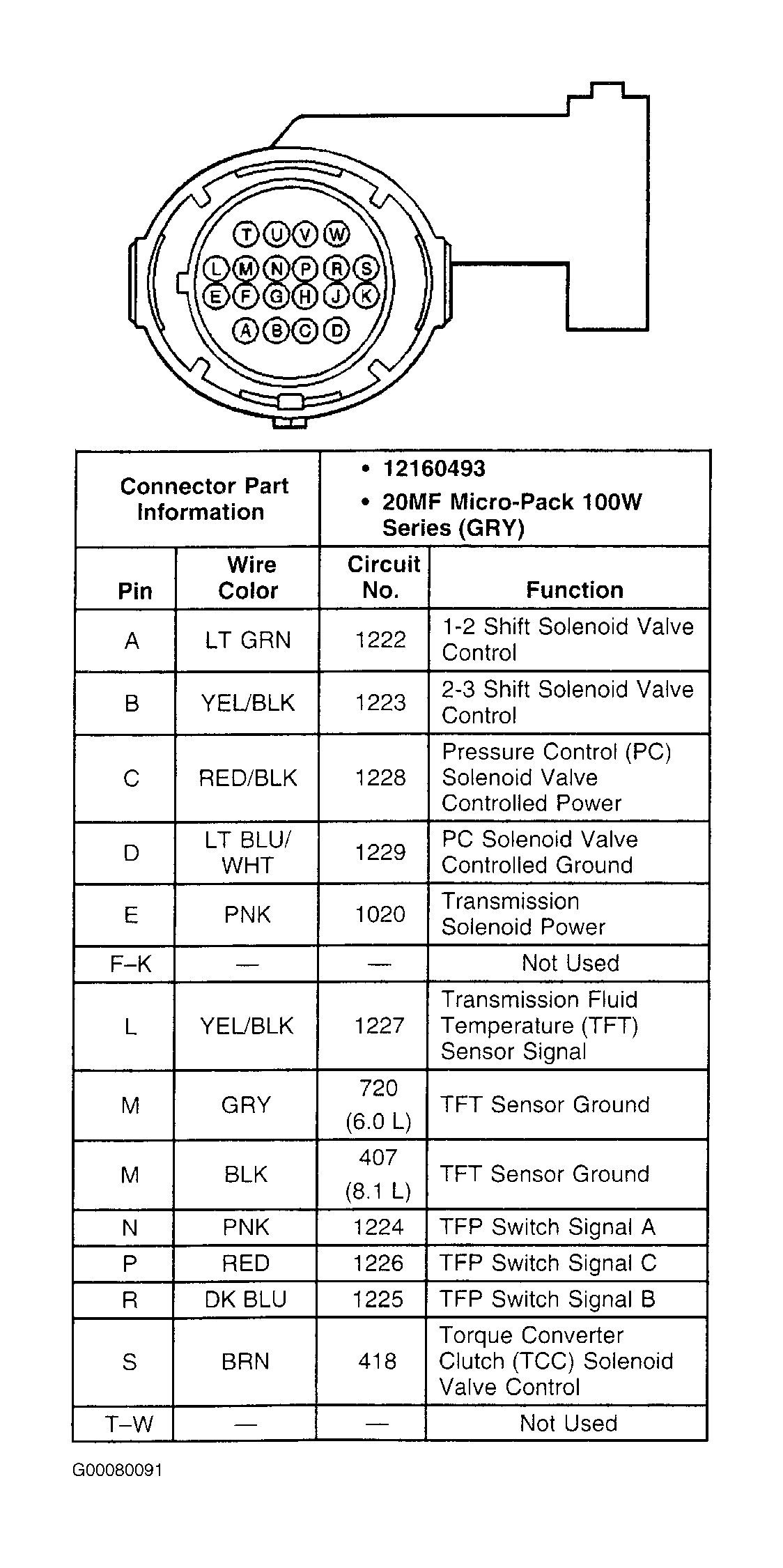

Fig 1: Identifying Transmission In-Line 20-Way Connector End View (Engine Side)
G00080091Courtesy of GENERAL MOTORS CORP.
