Stop Lamp Switch Connector End View
Stop Lamp Switch Connector End View

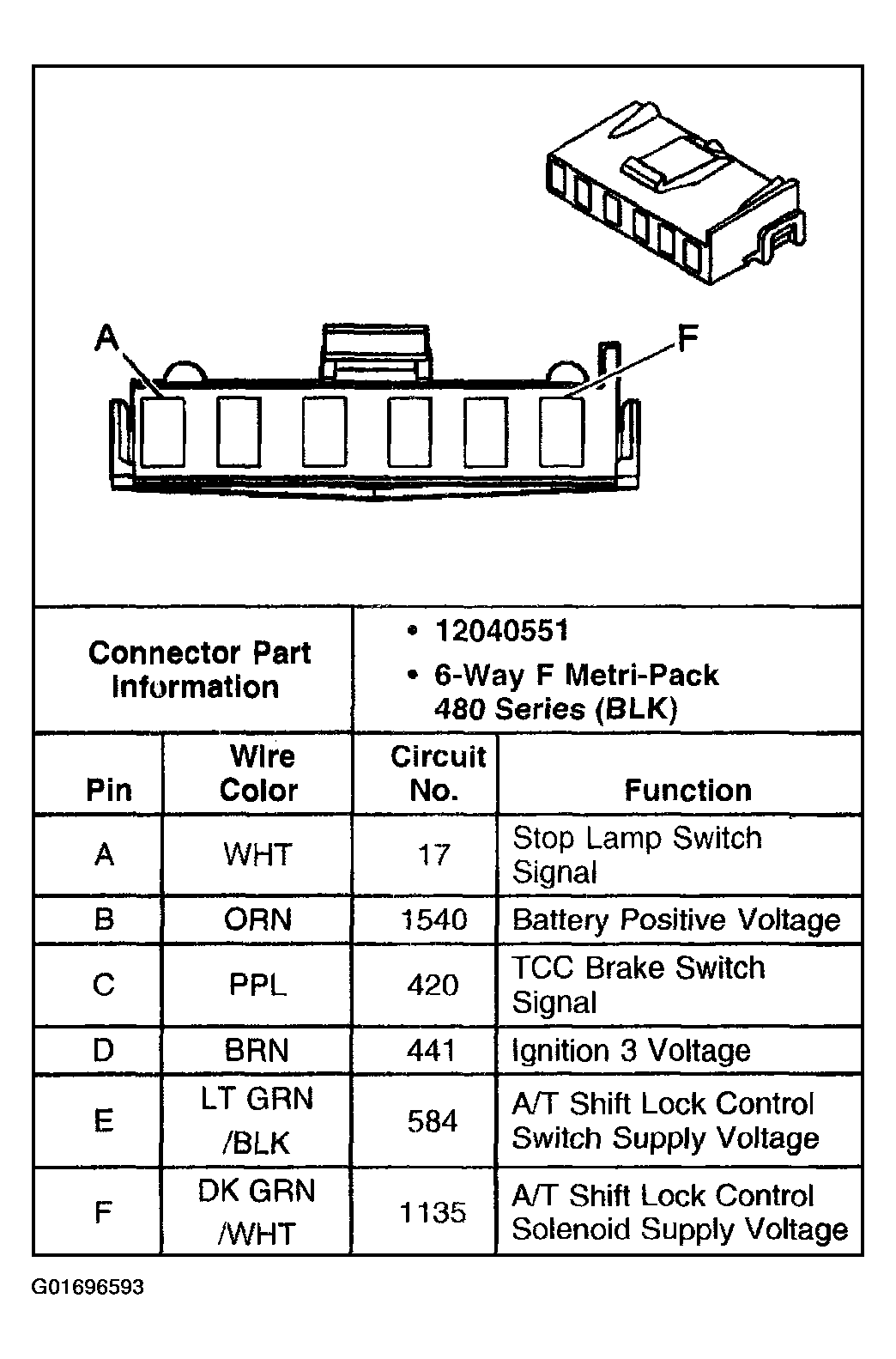

Fig 1: Stop Lamp Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
