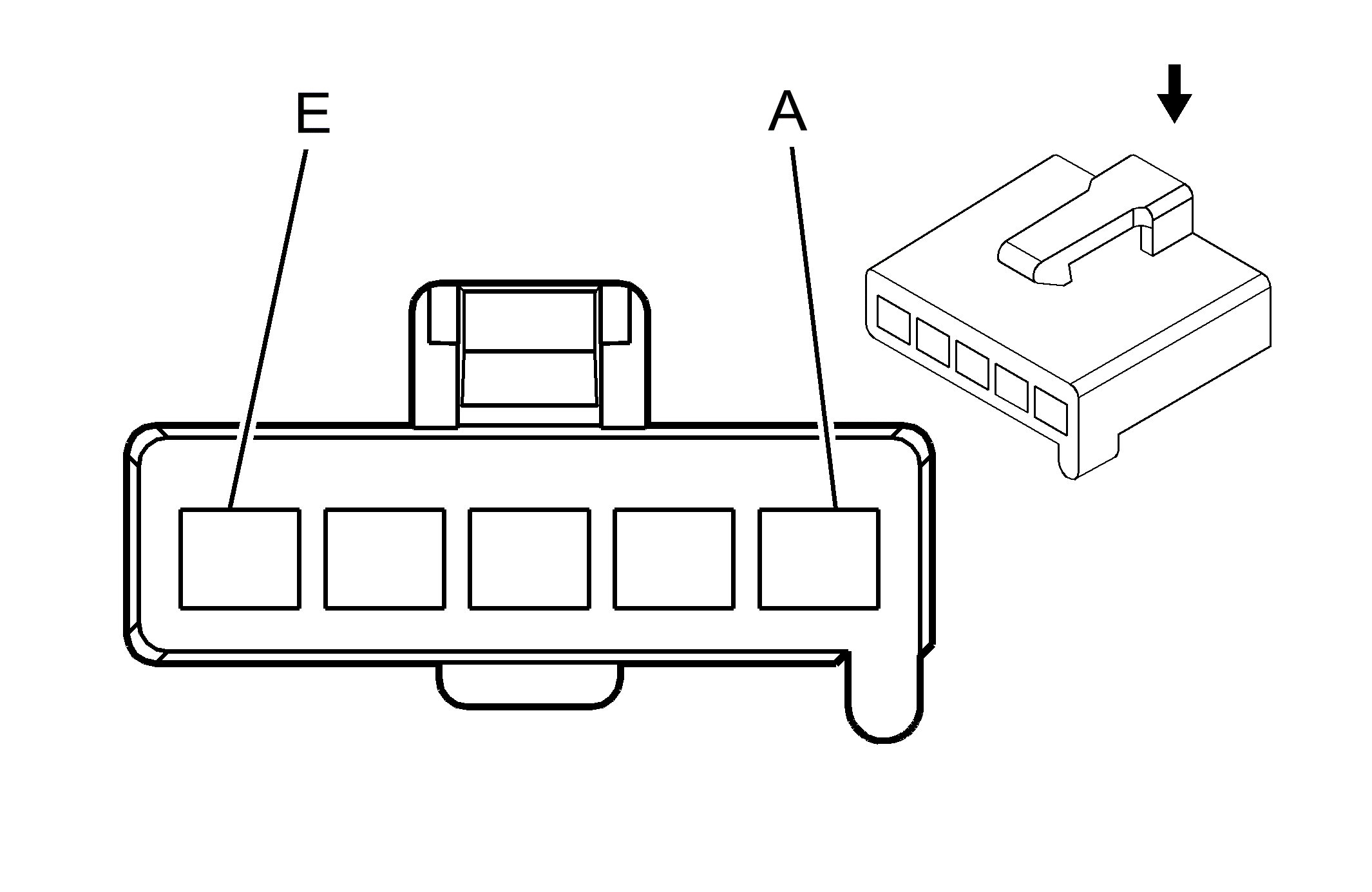

Window Wiper Module Connector End View - Rear

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12041429 5-Way F Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	PNK/BLK	1303	RAP [X] Fuse Supply Voltage
B	ORN	2040	Battery Positive Voltage
C	GRY	391	Rear Window Wiper Switch Signal
D	DK GRN	392	Rear Window Washer Pump Control
E	BLK	1450	Ground
