Instrument Panel Relay Block

NOTE: Instrument panel relay block is located under the left side of instrument panel, near the left kick panel.

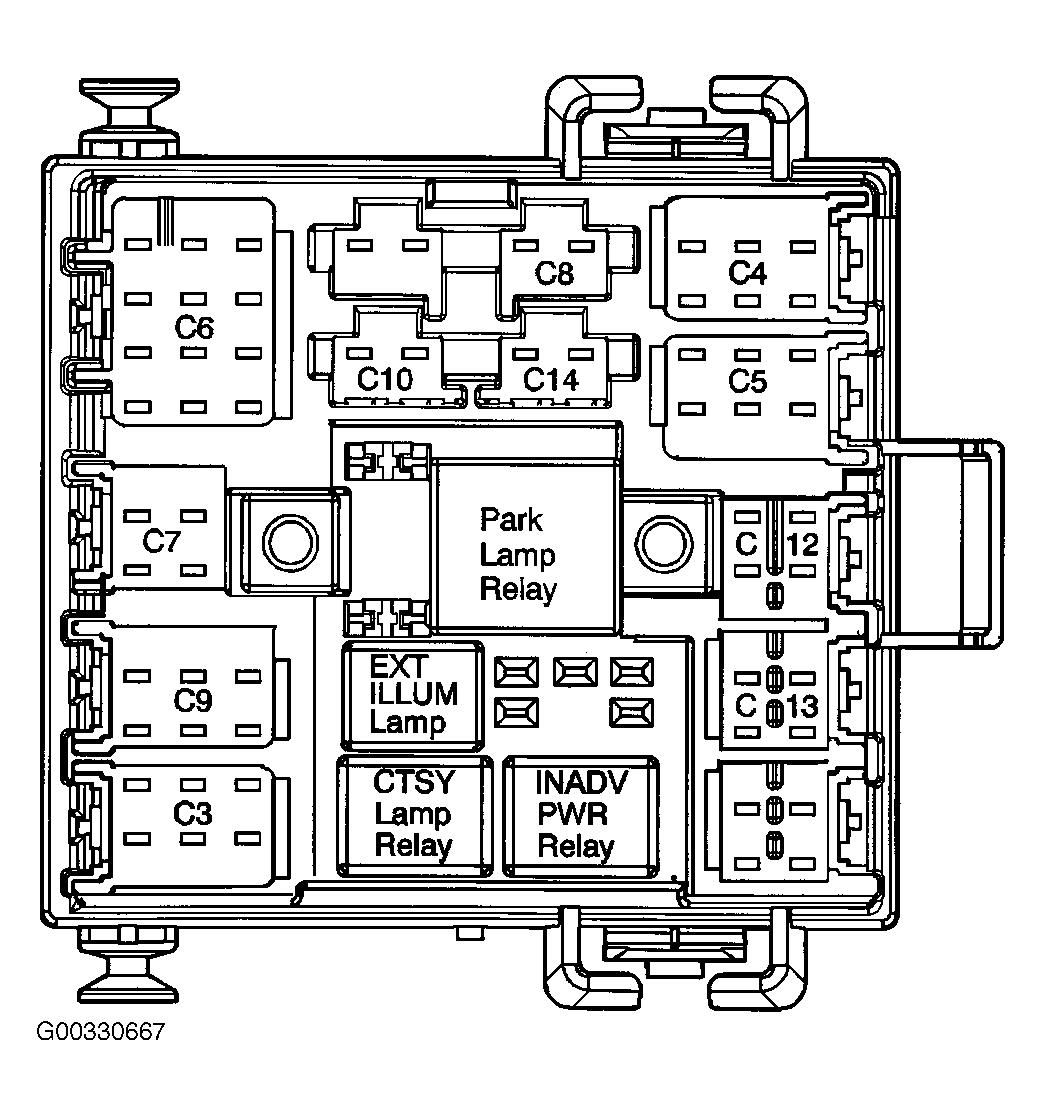

Fig 1: Identifying Instrument Panel Relay Block Components

Courtesy of GENERAL MOTORS CORP.

INSTRUMENT PANEL RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Park Lamp Relay
Inadvertent Power Relay
Courtesy Lamp Relay
Exterior Illumination Lamp Relay
