Left Instrument Panel Fuse Block
NOTE:

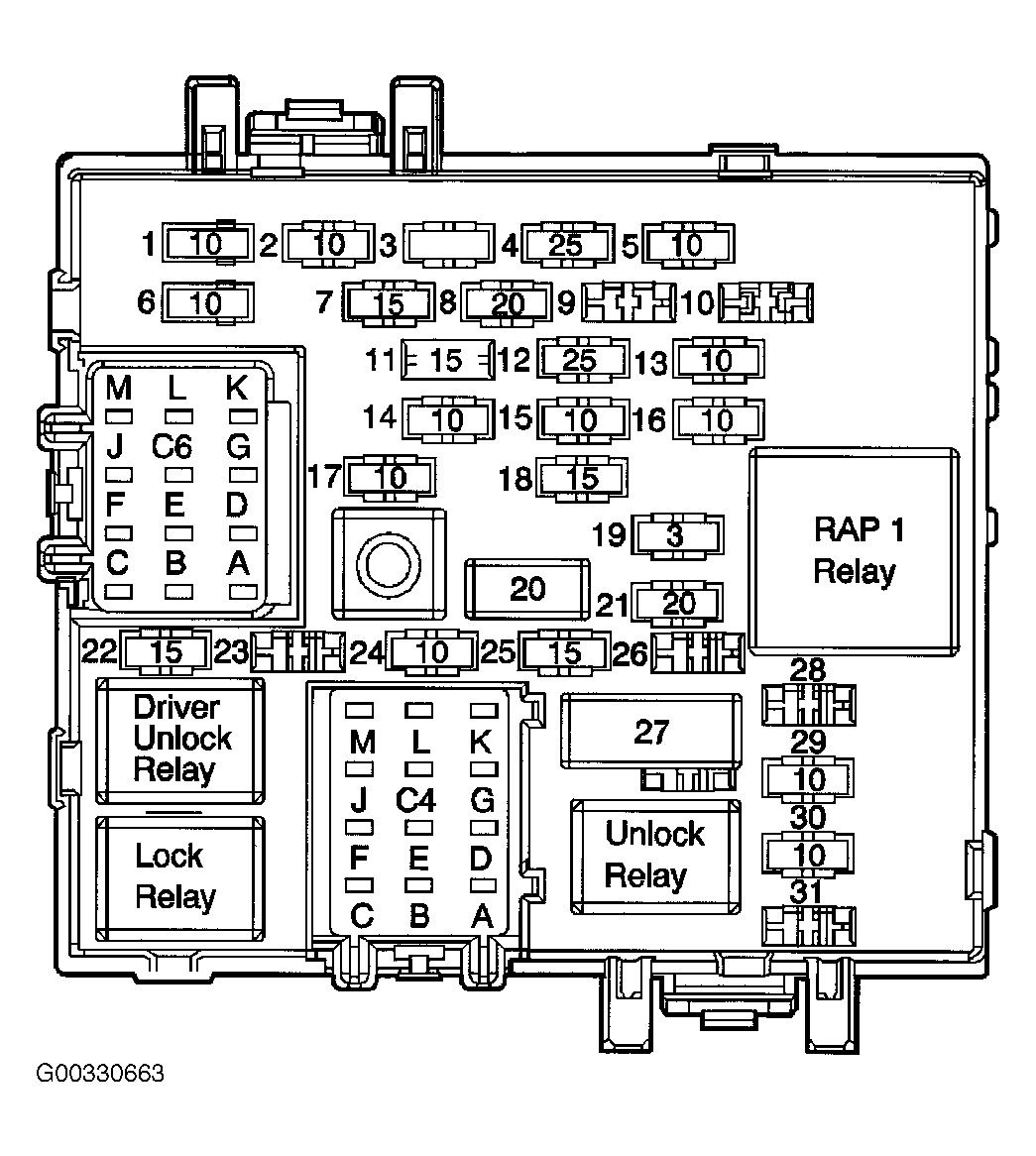

Left Instrument Panel (I/P) fuse block is located on the lower left side of the I/P. See Fig 1.
LEFT INSTRUMENT PANEL FUSE BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Driver Unlock Relay |
| Lock Relay |
| Unlock Relay |
| RAP 1 Relay |
LEFT INSTRUMENT PANEL FUSE BLOCK LEGEND
| Fuse/Circuit Breaker | Rating | Description |
|---|---|---|
| HVAC 1 Fuse #1 | 10A | HVAC Control Module, Mode Door Motors/Actuators |
| IGN 3 Fuse #2 | 10A | Memory Seat Module, LH and RH Heated Seat Switch |
| BRAKE Fuse #3 | 10A | Electronic Brake Control Module (EBCM) |
| HTR A/C Fuse #4 | 25A | Blower Motor (all except high speed) |
| IGN 0 Fuse #5 | 10A | Automatic Transmission, Instrument Cluster, Vehicle Control Module (VCM)/Powertrain Control Module (PCM) |
| CRUISE Fuse #6 | 10A | Cruise Control Module, Cruise Control Switch, Instrument Cluster, Body Control Module (BCM) |
| 4WD Fuse #7 | 15A | Auxiliary Battery Relay, Front Axle Actuator/Switch, Automatic Transfer (ATC) Control Module, Vehicle Control Module (VCM) |
| TURN Fuse #8 | 20A | Feeds LT Turn and RT Turn fuses - turn signals |
| WS WIPER Fuse #12 | 25A | Windshield Wiper, Windshield Washer Pump |
| SEO IGN Fuse #13 | 10A | Selectable Ride |
| ILLUM Fuse #14 | 10A | Instrument Cluster, Instrument Panel Switches (backlit) |
| IGN1 Fuse #15 | 10A | Body Control Module (BCM), Instrument Cluster, Automatic Day-Night |
| SEO ACCY Fuse #16 | 10A | Body Builder Provision |
| CRANK Fuse #17 | 10A | Starter Relay |
| AIR BAG Fuse #18 | 15A | Inflatable Restraint Sensing and Diagnostic Module, Inflatable Restraint Instrument Panel Module Switch |
| MIR/LOCK Fuse #19 | 3A | Power Mirrors, Memory Seat Switch, Power Door Lock Relays |
| SEATS (CB) #20 | 25A | Power Seats, Memory Seats (LH and RH) |
| DR LOCKS Fuse #21 | 20A | Power Door Lock Actuators |
| LOCK Fuse #22 | 15A | Power Door Locks (Actuators) |
| INT PK Fuse #24 | 10A | Park Lamp Relay Bypass (w/Manual Park Lamp Switch use) |
| UNLOCK Fuse #25 | 15A | Power Door Locks (Actuators) |
| PWR WDO (CB) #27 | 25A | Power Windows (Uplevel Vehicle) |
| RDO 1 Fuse #29 | 10A | Radio (Base Vehicle) |
| RAP 2 Fuse #30 | 10A | Window Door Lock Switch-Passenger/ RR, Sunroof, Radio |
| UNLOCK JMPR (Relay/Fuse) | 30A | Power Door Locks (non-Keyless Entry) |
