Installation Procedure

  1. Connect the electrical connectors to the switches in the assembly
  2. Install the accessory switch assembly into the IP till it snaps into place.

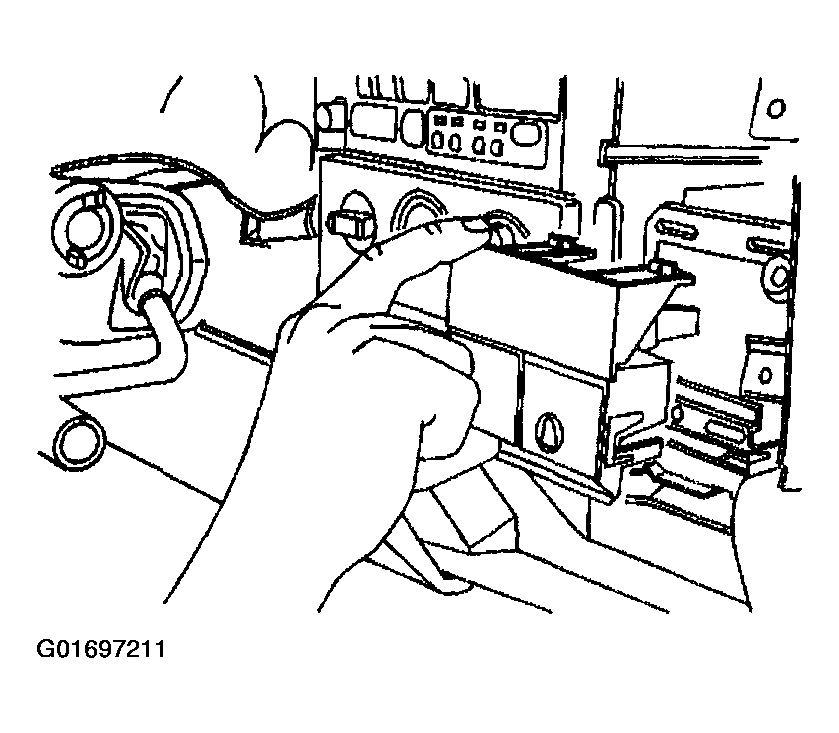

    3. Fig 1: Accessory Switch Installation
    G01697211Courtesy of GENERAL MOTORS CORP.
  3. Install the IP trim bezel. Refer to Bezel Replacement - IP Cluster .
