Removal Procedure

  1. Remove the IP trim bezel. Refer to Bezel Replacement - IP Cluster .
  2. Grasp the accessory switch assembly and pull outwards to remove the button assembly.
  3. Disconnect the electrical connectors for the switches in the assembly.
  4. Remove the switches and the button assembly.

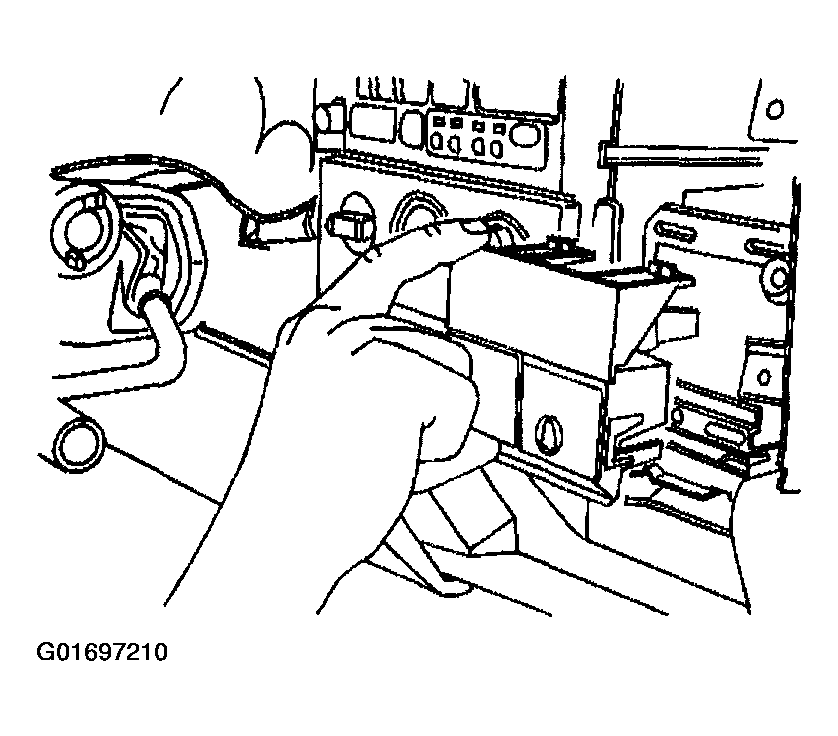

    5. Fig 1: Accessory Switch Removal
    G01697210Courtesy of GENERAL MOTORS CORP.
