Installation Procedure

  1. Install the air distribution duct.
  2. Install the air distribution duct retaining screws.
    NOTE: Refer to FASTENER NOTICE .
  3. Tighten the screws. Tighten the screws to 1.6 N.m (14 lb in).

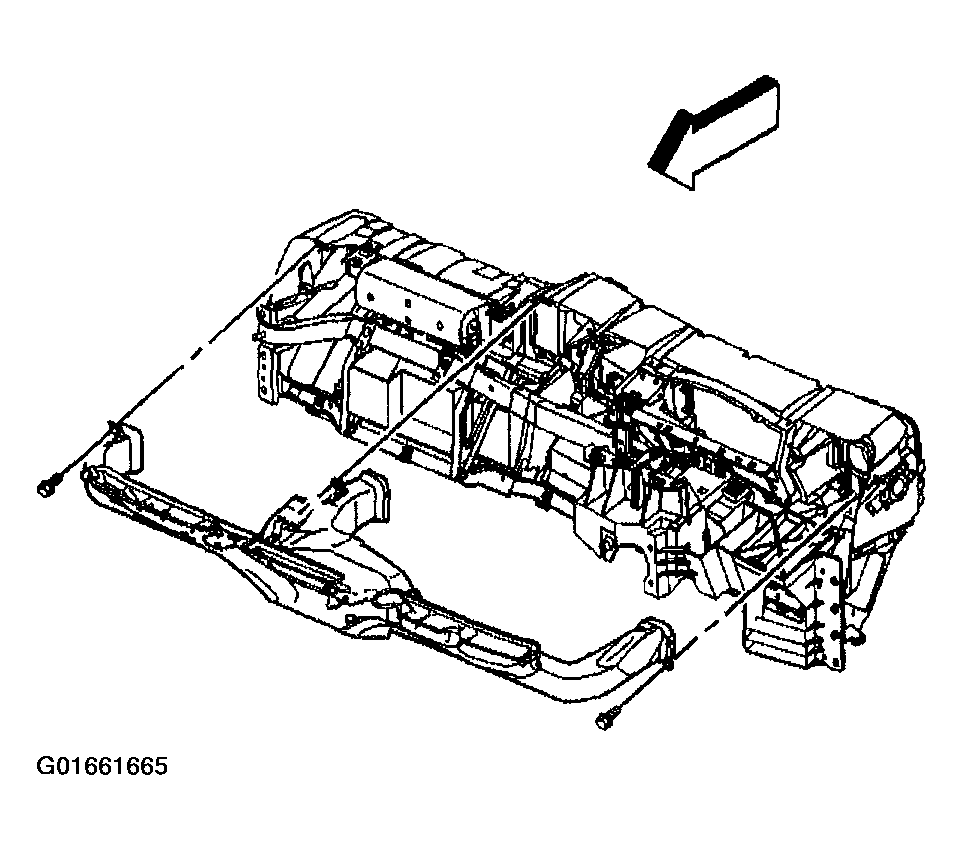

    4. Fig 1: Installing The Air Distributor Duct Retaining Screws
    G01661665Courtesy of GENERAL MOTORS CORP.
  4. Install the IP carrier. Refer to IP Carrier Replacement .
