Installation Procedure

  1. Install the ashtray housing to the lower IP trim panel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws holding the ashtray housing to the rear of the IP lower trim panel. Tighten the ashtray housing screws to 2 N.m (18 lbs in).

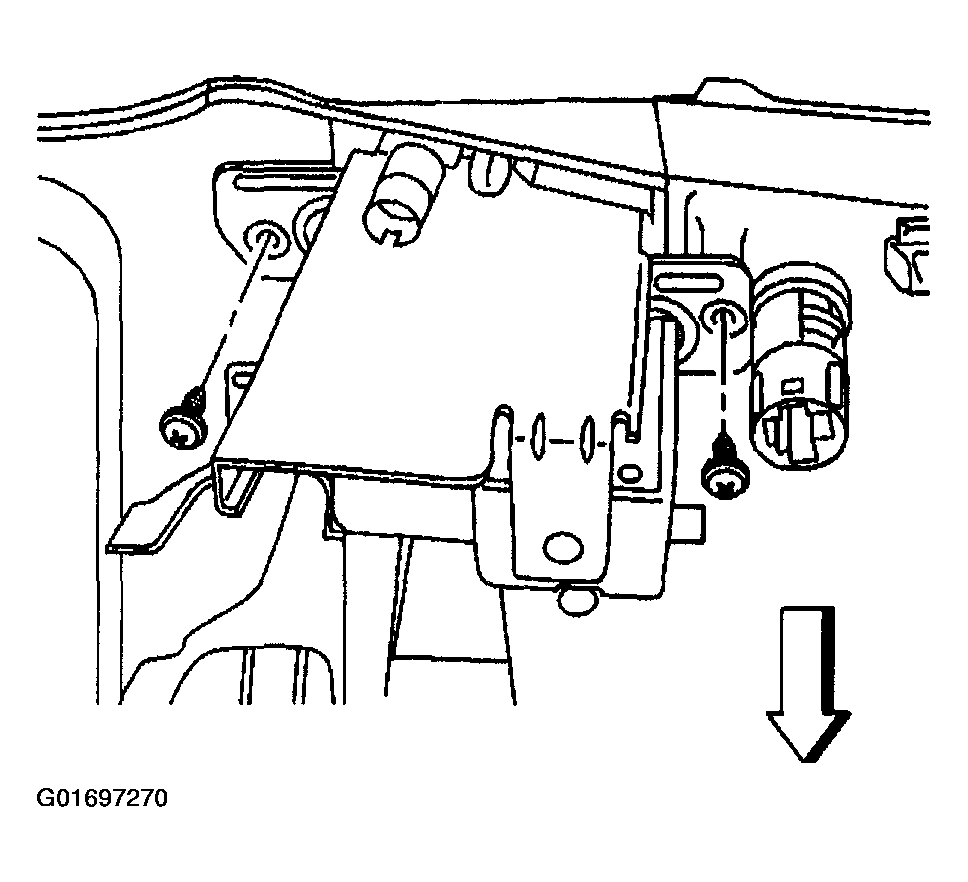

    3. Fig 1: Installing Ashtray Housing Screws
    G01697270Courtesy of GENERAL MOTORS CORP.
  3. Connect the ashtray lamp wiring harness to the ashtray housing.

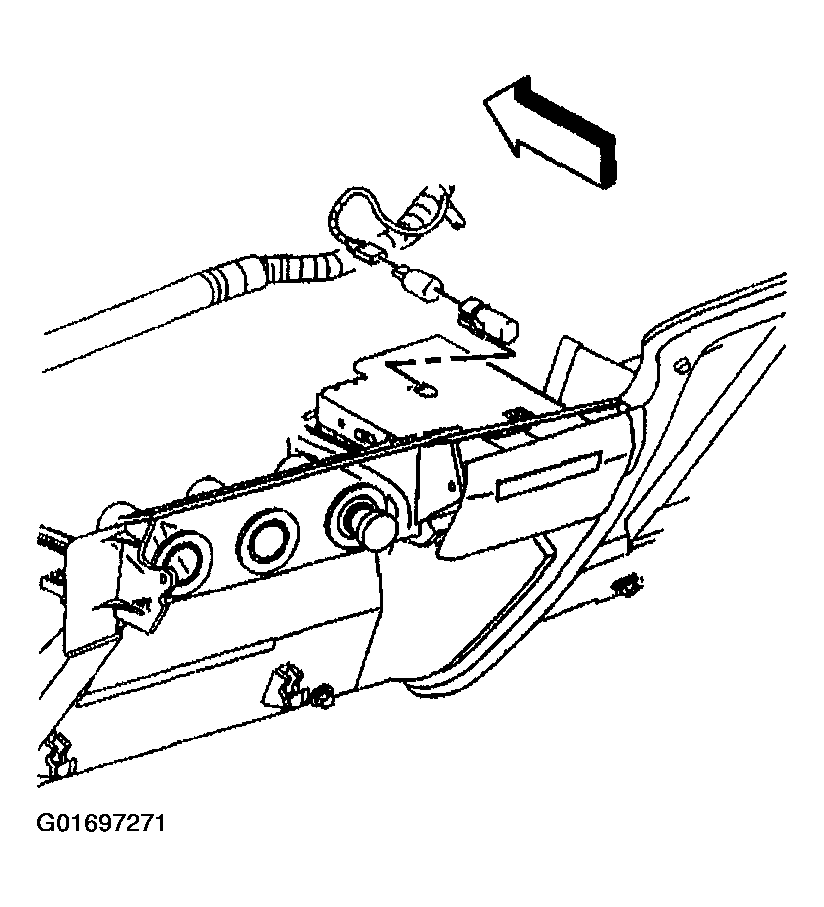

    4. Fig 2: Installing Ashtray Lamp Wiring Harness
    G01697271Courtesy of GENERAL MOTORS CORP.
  4. Install the lower IP trim panel. Refer to IP Trim Panel Replacement - Lower .

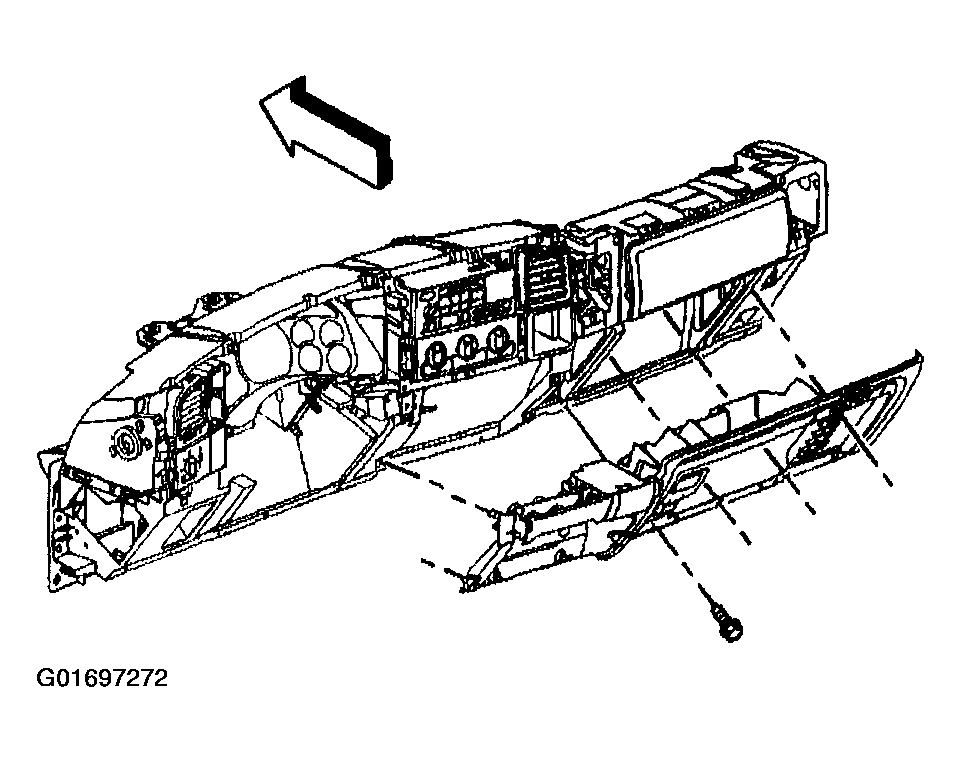

    5. Fig 3: Installing Lower IP Trim Panel
    G01697272Courtesy of GENERAL MOTORS CORP.
  5. Insert the ashtray to the IP by depressing the tab and sliding the ashtray forward.

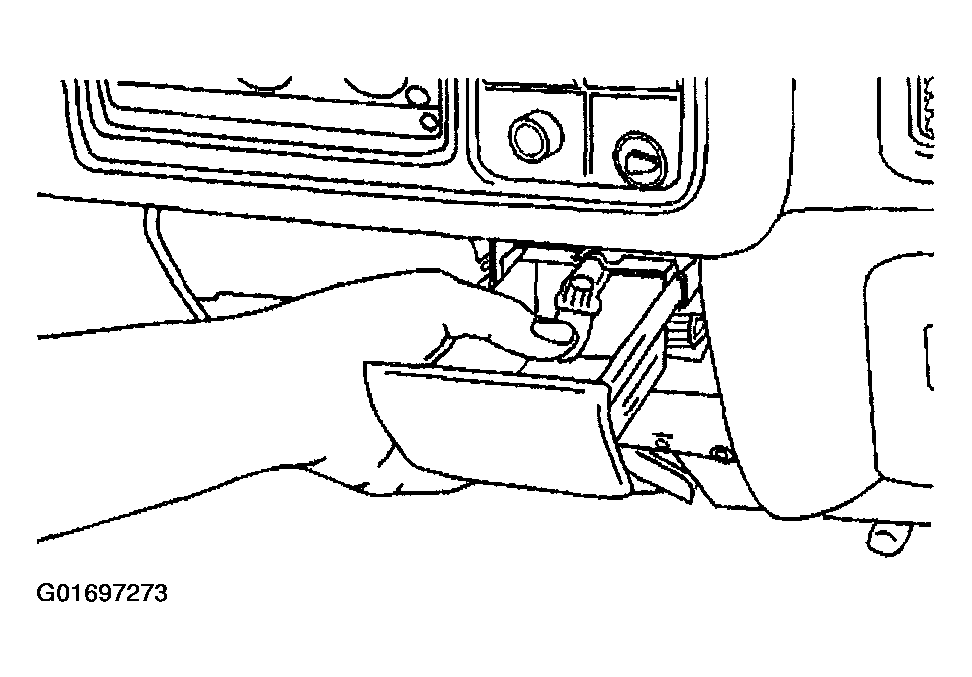

    6. Fig 4: Ashtray Installation
    G01697273Courtesy of GENERAL MOTORS CORP.
