Removal Procedure

  1. Open the center console lid and remove the storage bin. Refer to Console Storage Bin Replacement (Non-Luxury)  or Console Storage Bin Replacement (Luxury)  .
  2. Remove the rear cupholder from the end panel. Refer to Cupholder Replacement - Front Floor Console .
  3. Remove the 4 retaining screws (1).

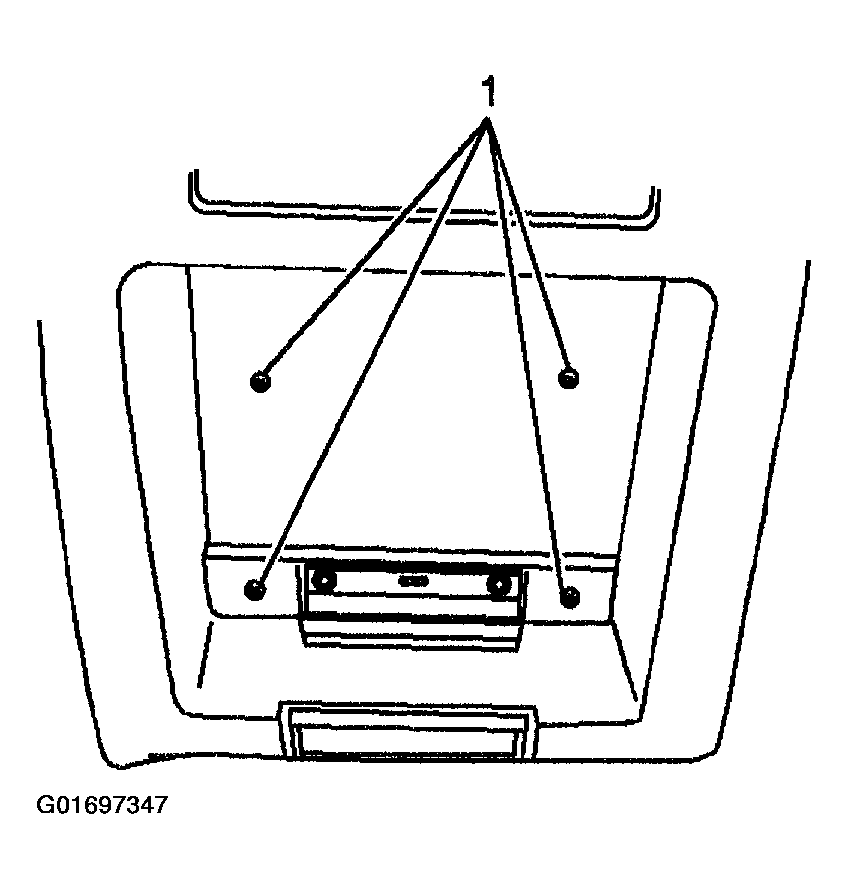

    4. Fig 1: Locating 4 Center Console End Panel Retaining Screws
    G01697347Courtesy of GENERAL MOTORS CORP.
  4. Remove the top 2 retaining screws (1).
  5. Move the end panel rearwards to gain access to the electrical connectors.
  6. Remove the end panel from the console.
  7. Remove the rear seat heater switch, if equipped. Refer to HEATED SEAT SWITCH REPLACEMENT - REAR .
  8. Remove the rear seat audio controls, if equipped. Refer to AUDIO CONTROL REPLACEMENT - REAR SEAT .
  9. Remove the console floor lamp, if equipped. Refer to CONSOLE LAMP REMOVAL PROCEDURE .
  10. Remove the power outlets from the end panel, if equipped.

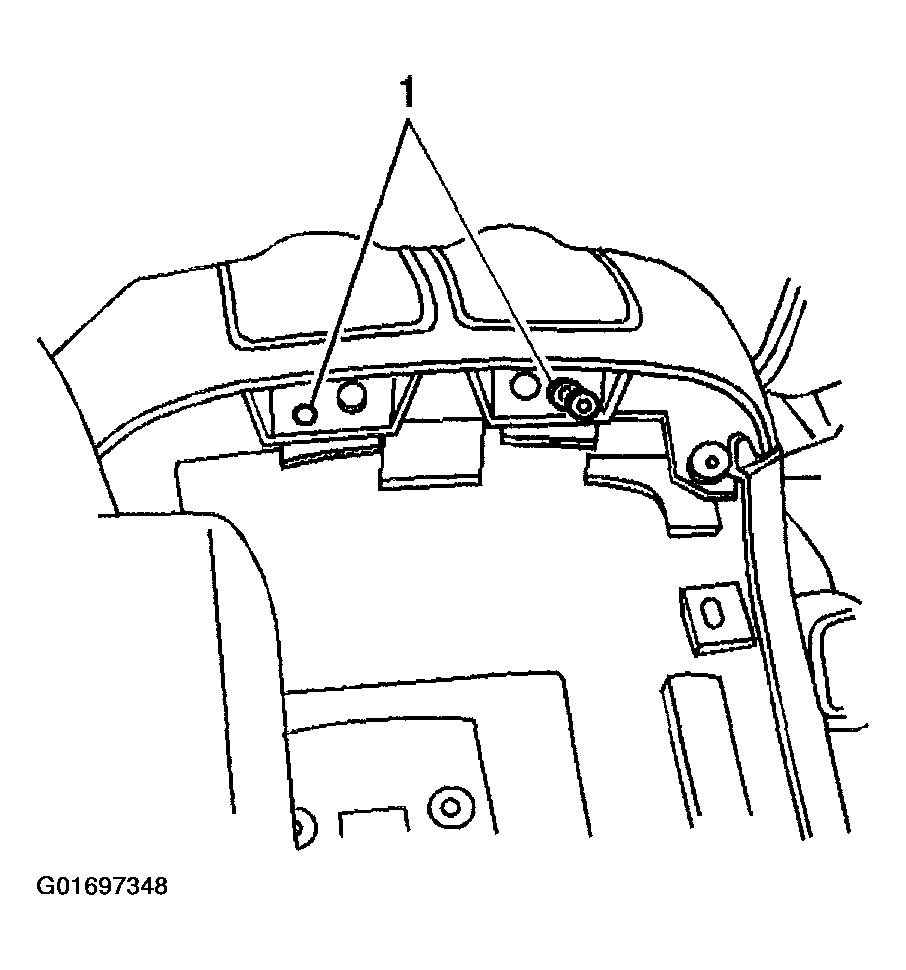

    11. Fig 2: Locating & Removing 2 Top Retaining Screws
    G01697348Courtesy of GENERAL MOTORS CORP.
