Installation Procedure

  1. Install the clock to the bezel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the clock retaining screws. Tighten the nut to 2 N.m (18 lbs in).
  3. Connect the electrical connector to the clock.

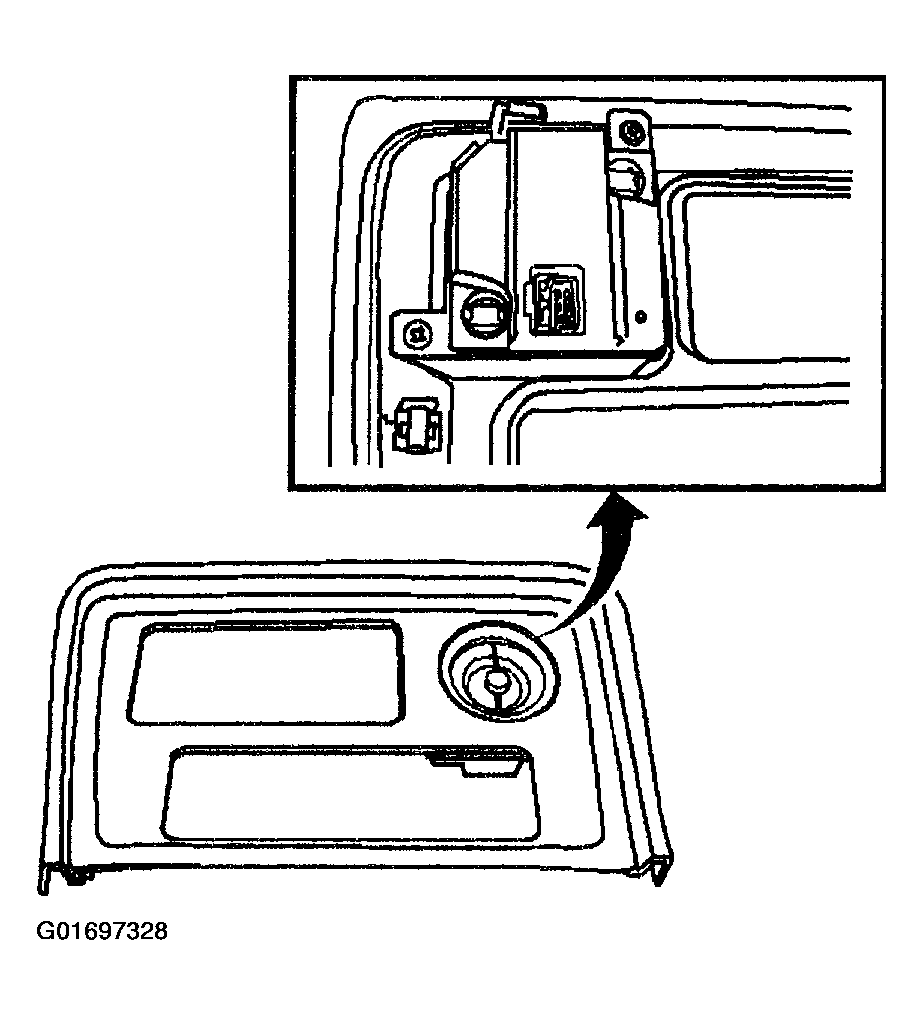

    4. Fig 1: Installing the Clocks Electrical Connector
    G01697328Courtesy of GENERAL MOTORS CORP.
  4. Install the floor console bezel by pushing in the corners.
