Removal Procedure

Remove the console upper console by firmly grabbing the corners and pulling outwards.
Disconnect the electrical connector from the clock.
Remove the clock retaining screws.
Remove the clock from the bezel.

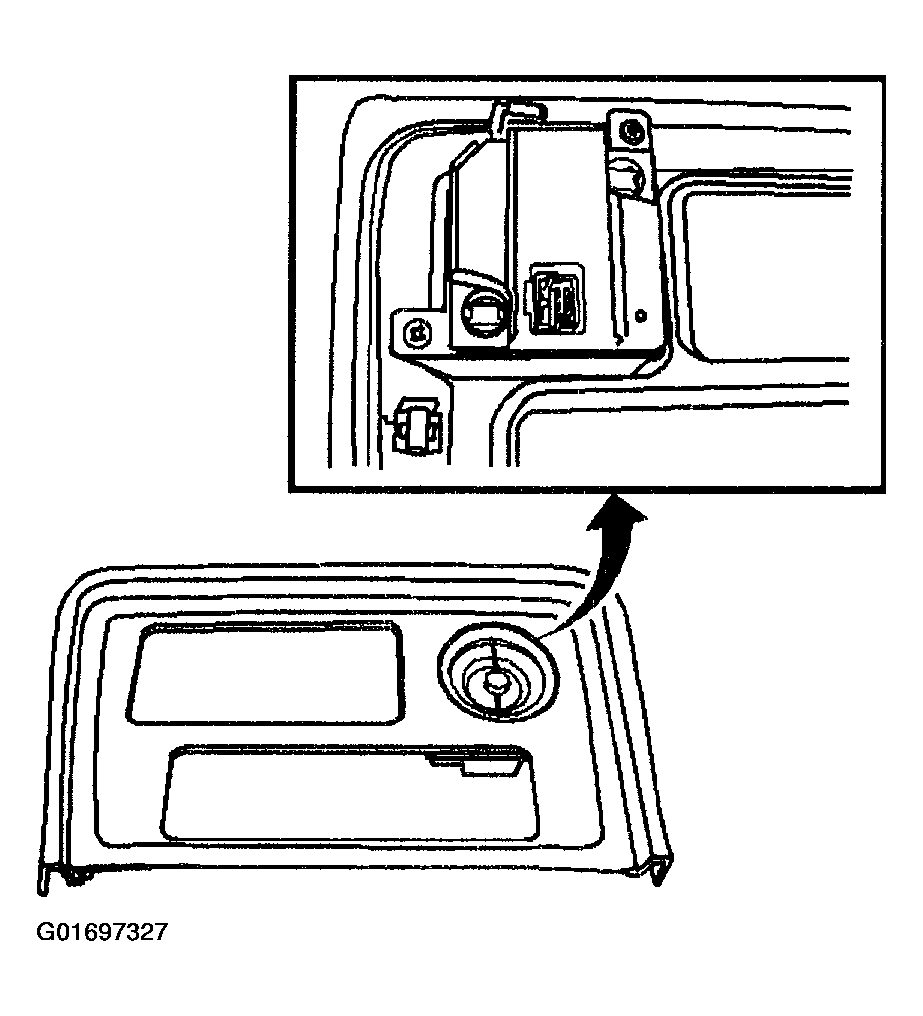

Fig 1: Disconnecting the Clocks Electrical Connector

Courtesy of GENERAL MOTORS CORP.
