Installation Procedure

Install the IP compartment door.
NOTE: Refer to FASTENER NOTICE .
Install the IP compartment retaining screws (1) to the instrument panel. Tighten the screws to 1.9 N.m (17 lbs in).

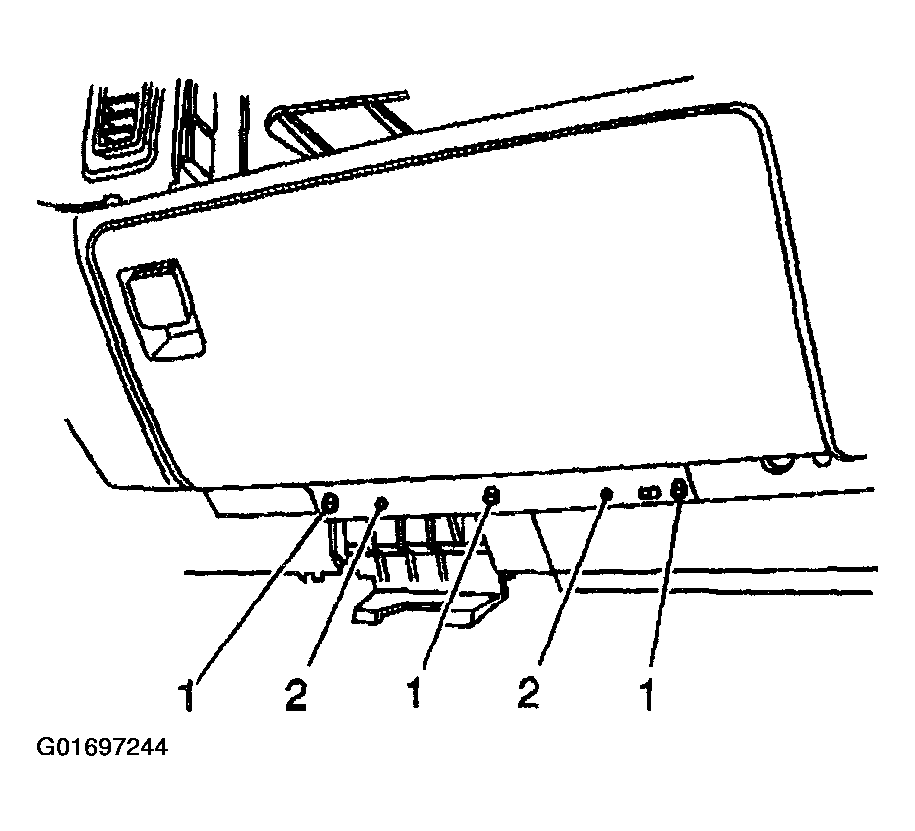

Fig 1: Installation Of IP Storage Compartment Retaining Screws

Courtesy of GENERAL MOTORS CORP.
