Removal Procedure

  1. Close the IP compartment door.
  2. Drill out the 2 rivets (2)
  3. Remove IP storage compartment door retaining screws (1) from the instrument panel.

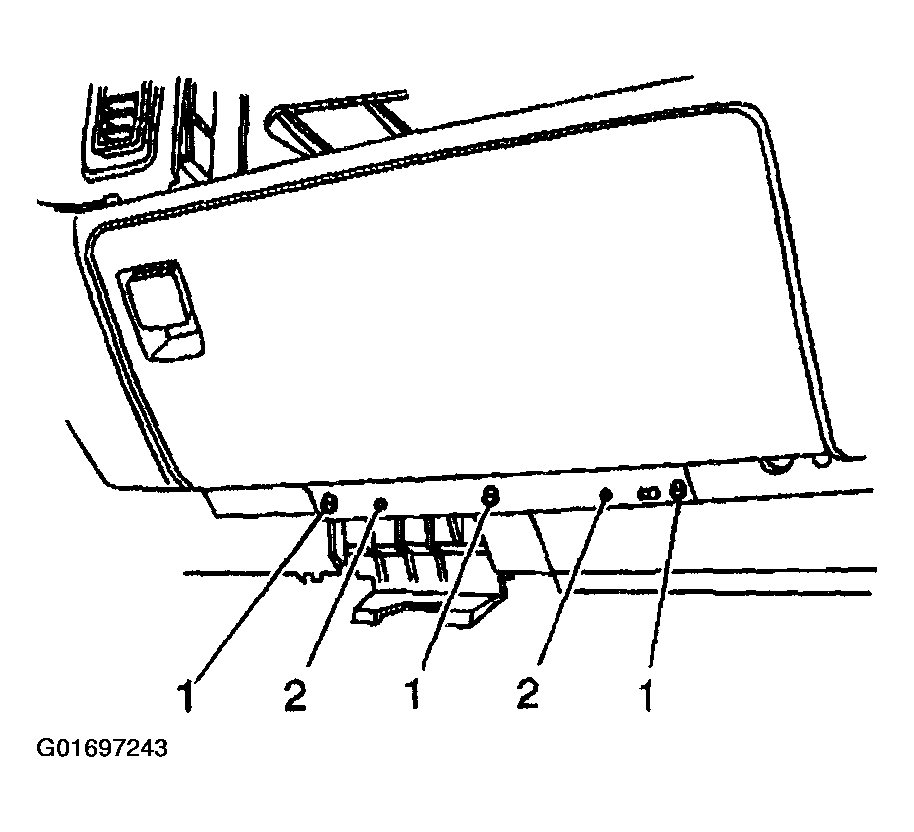

    4. Fig 1: Locating IP Storage Compartment Retaining Screws
    G01697243Courtesy of GENERAL MOTORS CORP.
  4. Remove the IP compartment door.
