Installation Procedure

  1. The new console is attached to a bracket. Separate the center console from the bracket by removing the retaining bolts.
  2. Position the new center console on the bracket in the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the 4 retaining bolts to the bracket. Tighten the bolts to 3.5 N.m (31 lbs in).

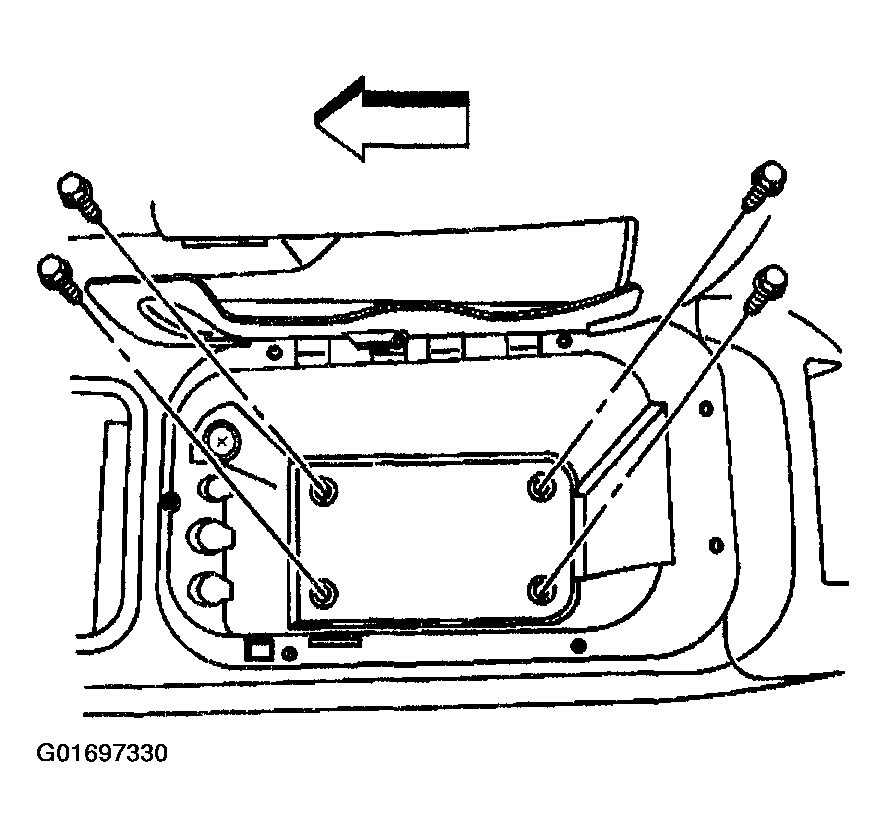

    4. Fig 1: Installing 4 Center Console Retaining Bolts
    G01697330Courtesy of GENERAL MOTORS CORP.
  4. Close the center console door.
