Installation Procedure

  1. Position the cupholder to the IP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws holding the cupholder to the IP. Tighten the screws to 2 N.m (18 lbs in).
  3. Return the cupholder to the up position.

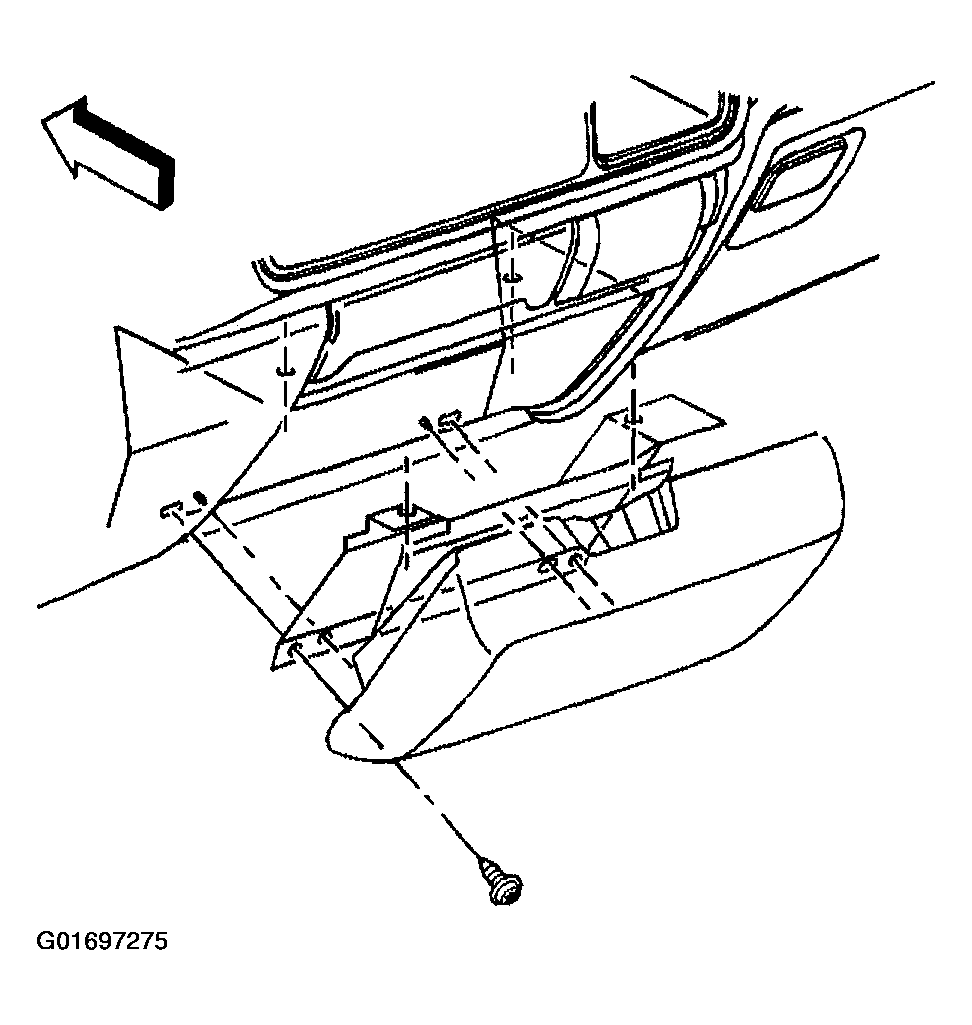

    4. Fig 1: Installing Cupholder Screws
    G01697275Courtesy of GENERAL MOTORS CORP.
