Installation Procedure

Install the lower IP trim panel to the IP assembly.

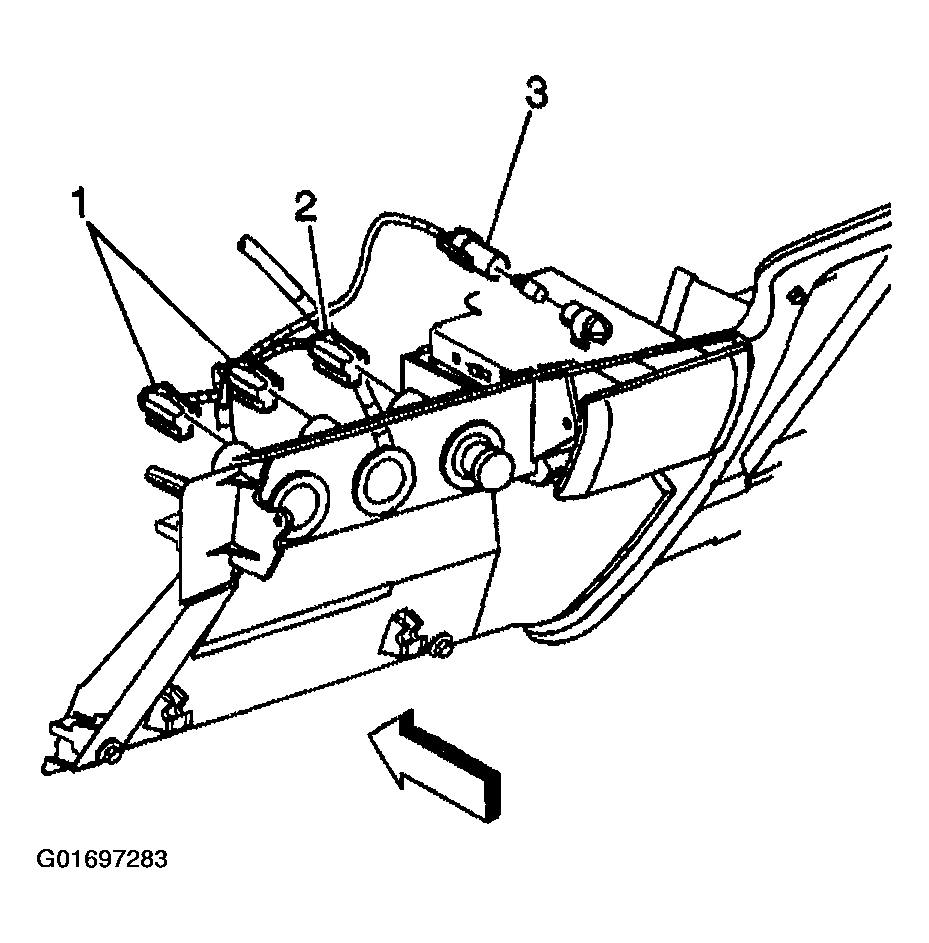

Connect the following electrical components:
- The power outlet ports (1, 2)
- The ashtray lamp (3)
- The IP compartment lamp, if equipped
NOTE: Refer to FASTENER NOTICE .
Install the screws connecting the lower trim panel to the IP assembly. Tighten the screws to 2 N.m (18 lbs in).

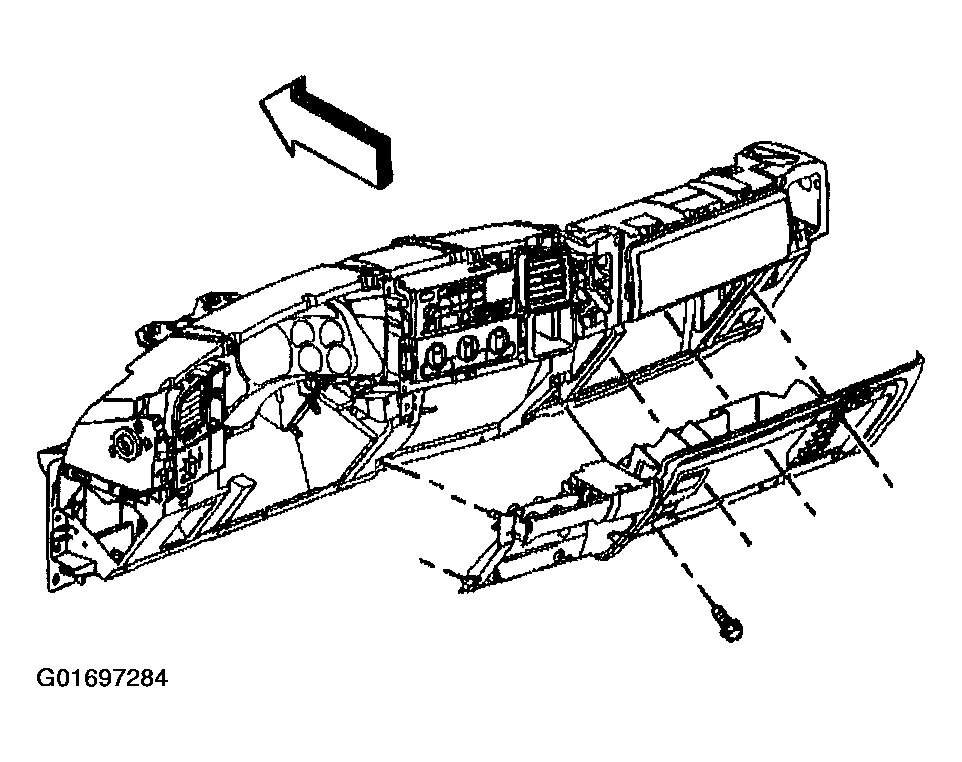

Fig 2: Installing Lower Trim Panel Retaining Screws

G01697284

Courtesy of GENERAL MOTORS CORP.

Install the following components, depending on how equipped:
- The IP cupholder cover, shown.
- The IP cupholder. Refer to Cupholder Replacement .
- The floor console extension. Refer to Console Replacement (Base Console) or Console Replacement (Luxury Console) .

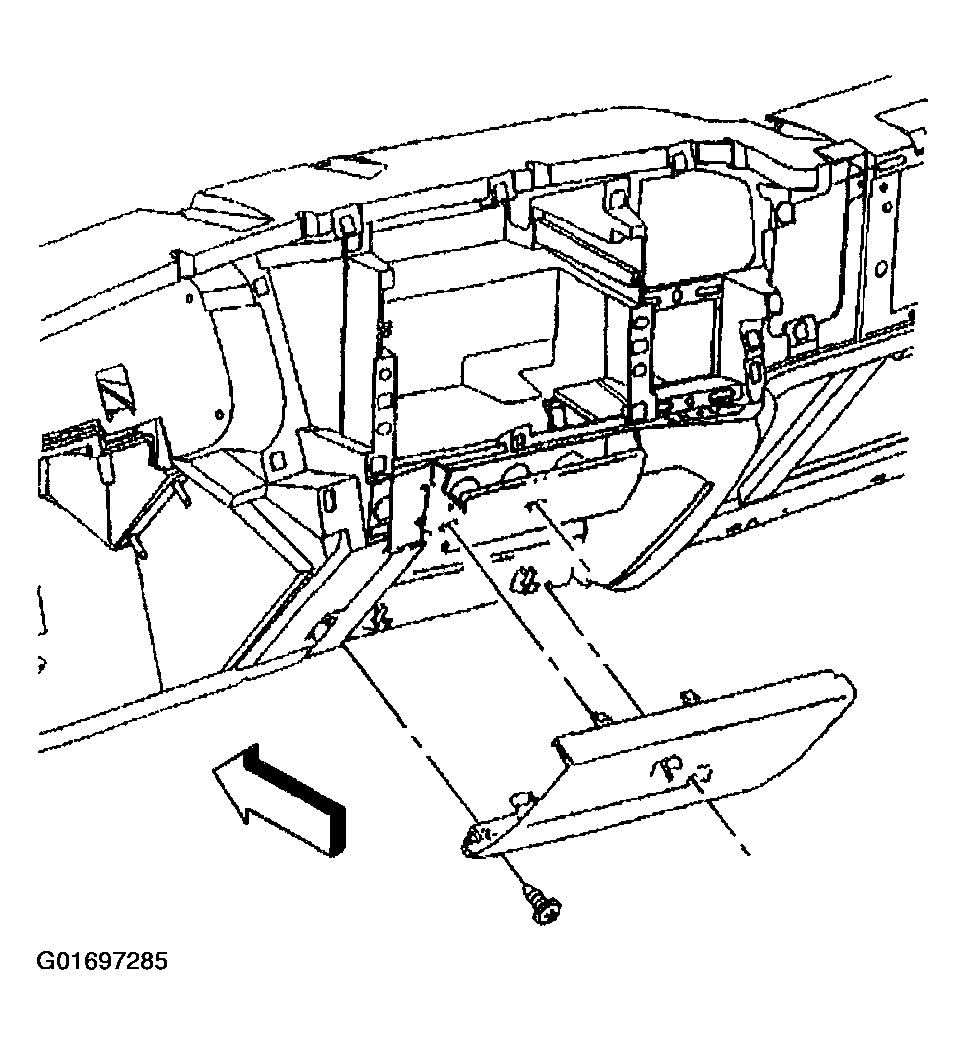

Fig 3: Installing Lower IP Trim Panel Bezel

G01697285

Courtesy of GENERAL MOTORS CORP.

Install the IP cluster trim bezel. Refer to Instrument Panel Cluster (IPC) Replacement .
