Installation Procedure

NOTE: This procedure calls for the replacement of incandescent bulbs only. The light emitting diodes (LEDs) are not replaceable individually. If LED replacement is needed, send the cluster to an AC Delco Service Center. Refer to Instrument Panel Cluster (IPC) Replacement .
  1. Install the bulb to the base.
  2. Install the bulb into the cluster by inserting the bulb and base assembly and turning the bulb 1/2 turn clockwise.

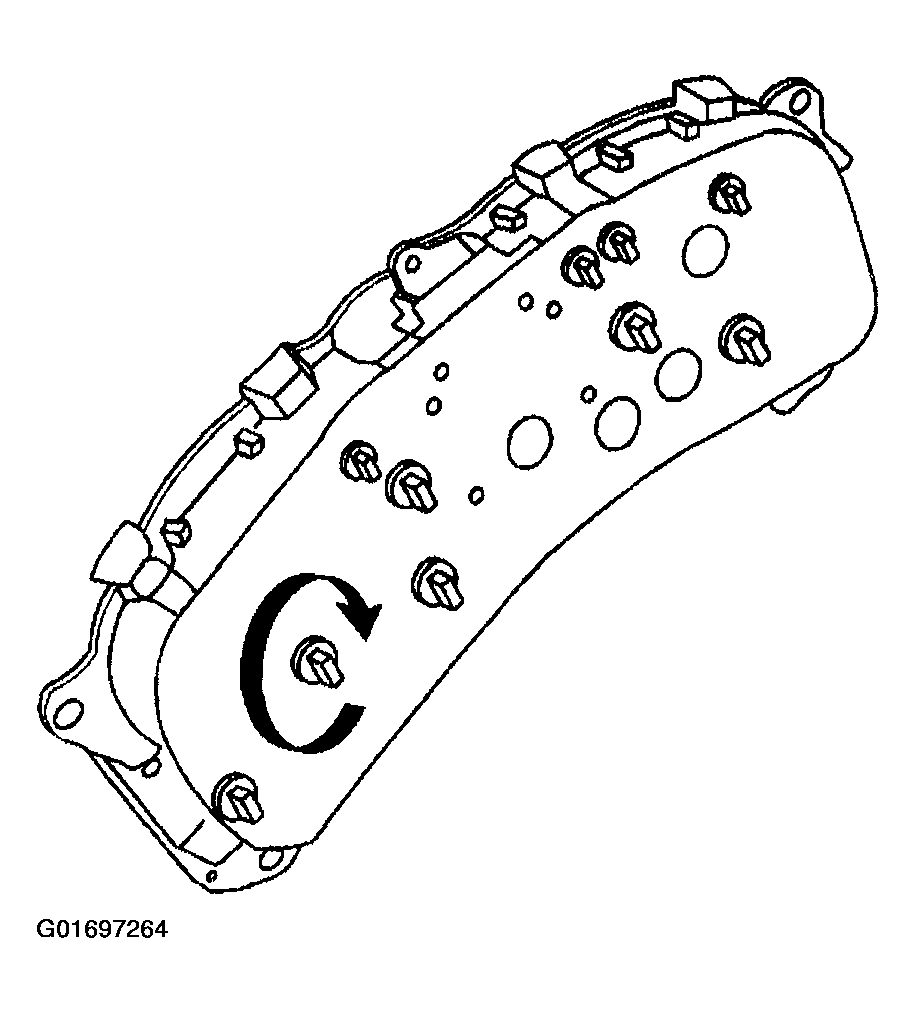

    3. Fig 1: Installing Cluster Lamp Bulb & Base Assembly
    G01697264Courtesy of GENERAL MOTORS CORP.
  3. Carefully snap the rear cover plate to the IP cluster.

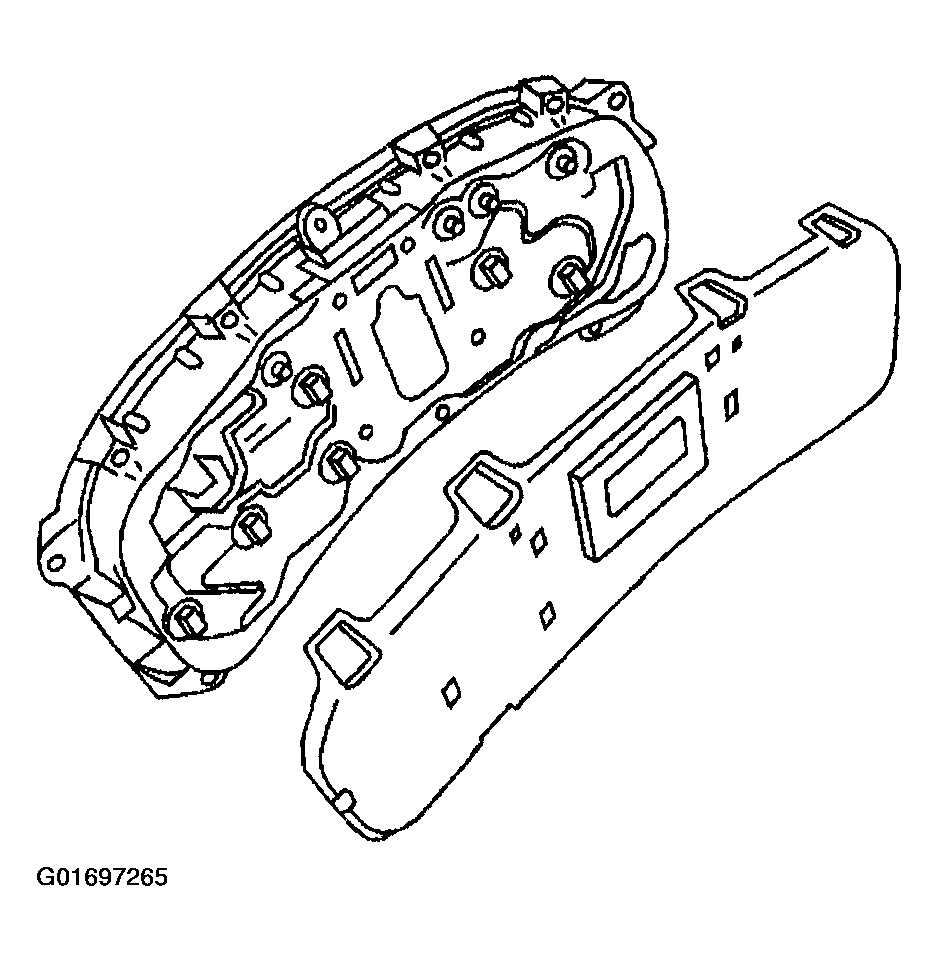

    4. Fig 2: Installing Rear Cover Plate Of IP Cluster
    G01697265Courtesy of GENERAL MOTORS CORP.
  4. Install the IP cluster. Refer to Instrument Panel Cluster (IPC) Replacement .
