Installation Procedure

Install the insulator (1) to the instrument panel.
NOTE: Refer to FASTENER NOTICE .
Install the retaining bolts. Tighten the bolts to 1.6 N.m (14 lbs in).

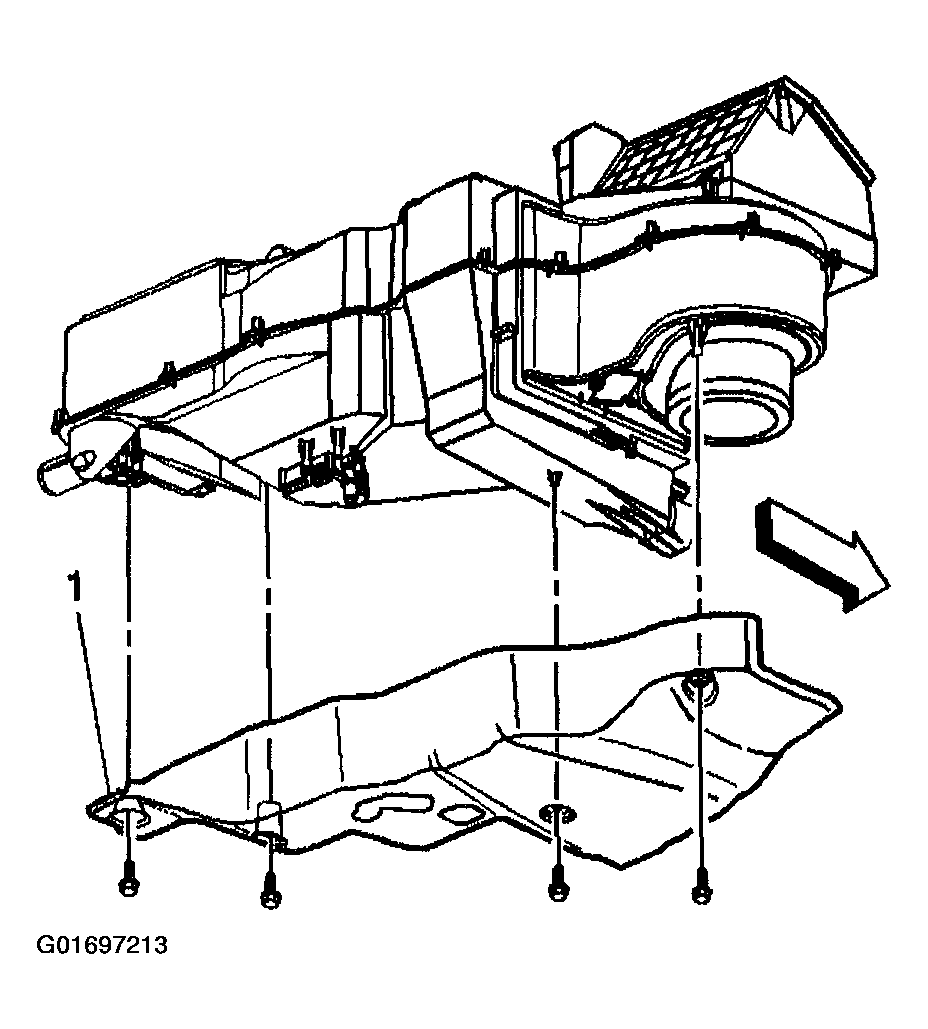

Fig 1: Insulator Replacement - IP

Courtesy of GENERAL MOTORS CORP.
