Component Locations

Fig 1: Locating APP Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 2: Locating CMP & Engine Oil Pressure Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 3: Locating CKP Sensor

Courtesy of GENERAL MOTORS CORP.

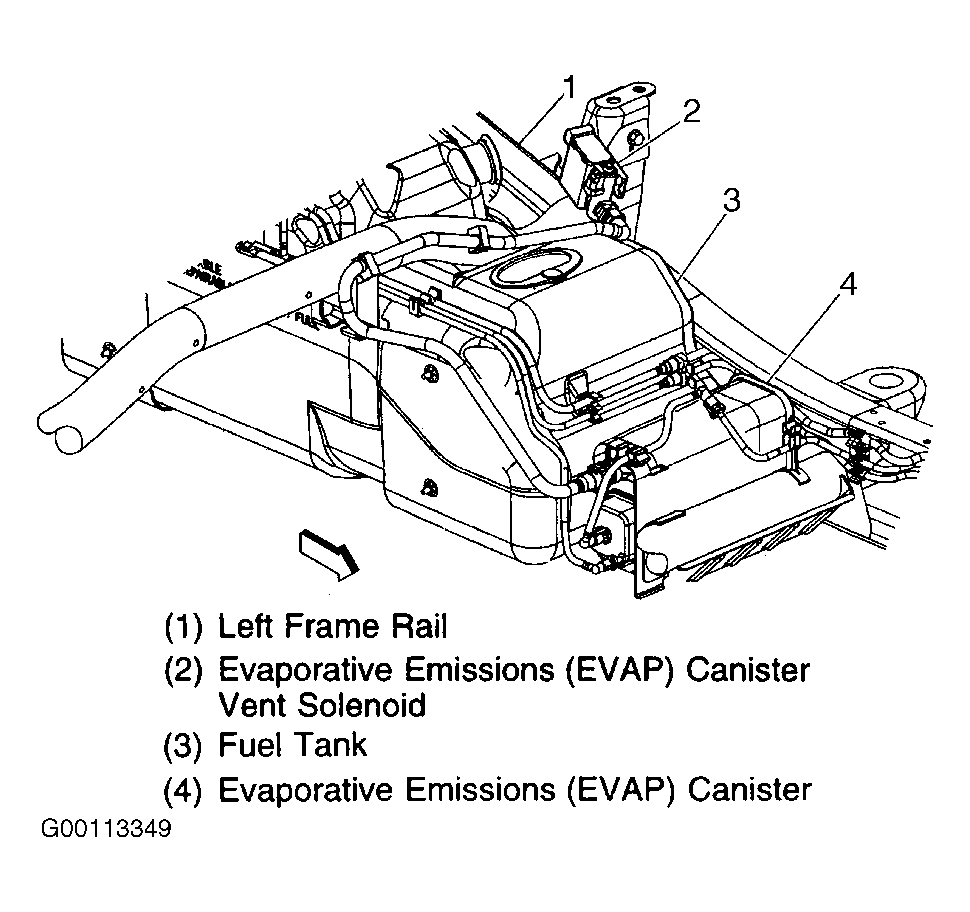

Fig 4: Locating EVAP Canister & EVAP Vent Solenoid

Courtesy of GENERAL MOTORS CORP.

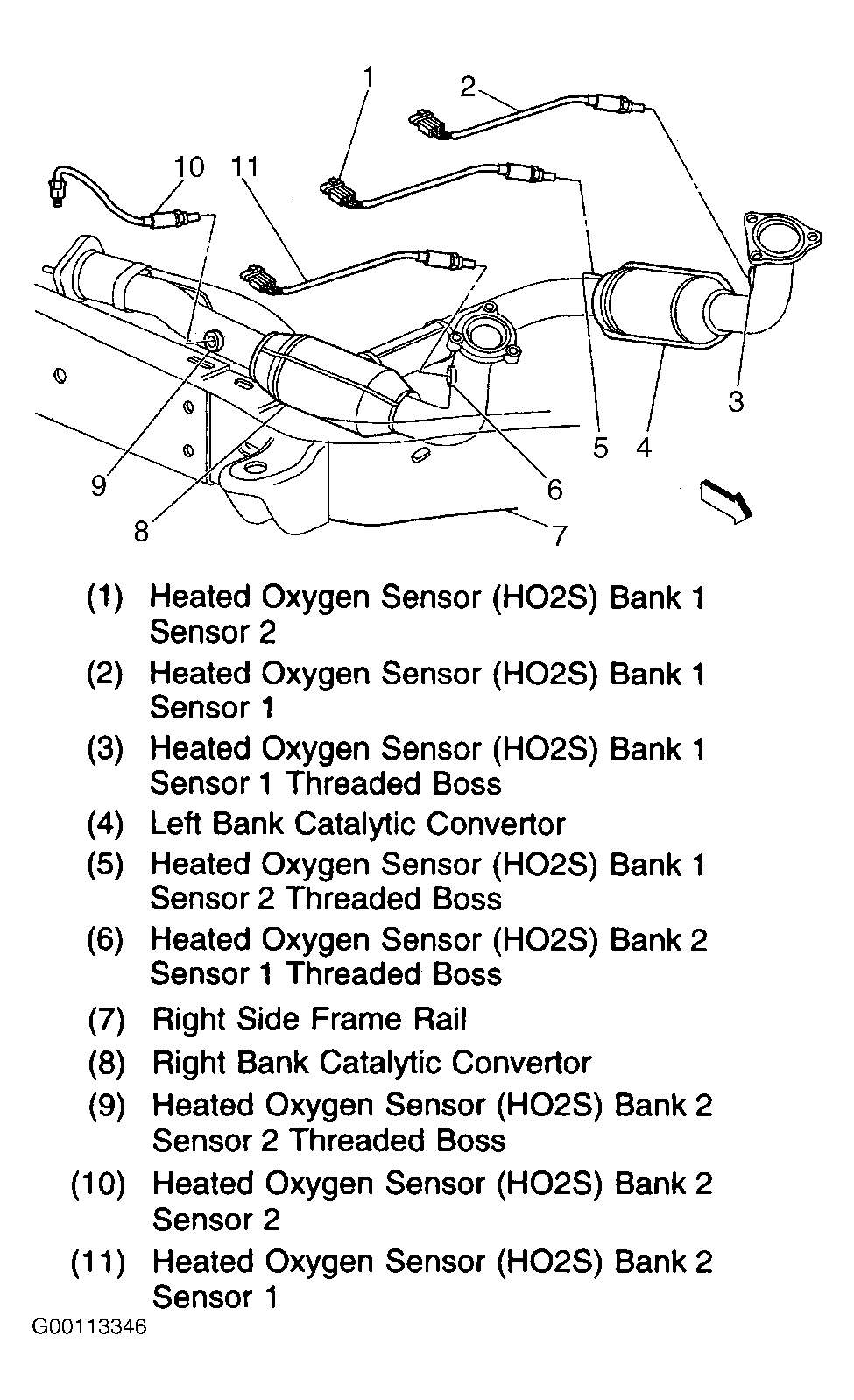

Fig 5: Locating HO2S (4.8L & 5.3L)

Courtesy of GENERAL MOTORS CORP.

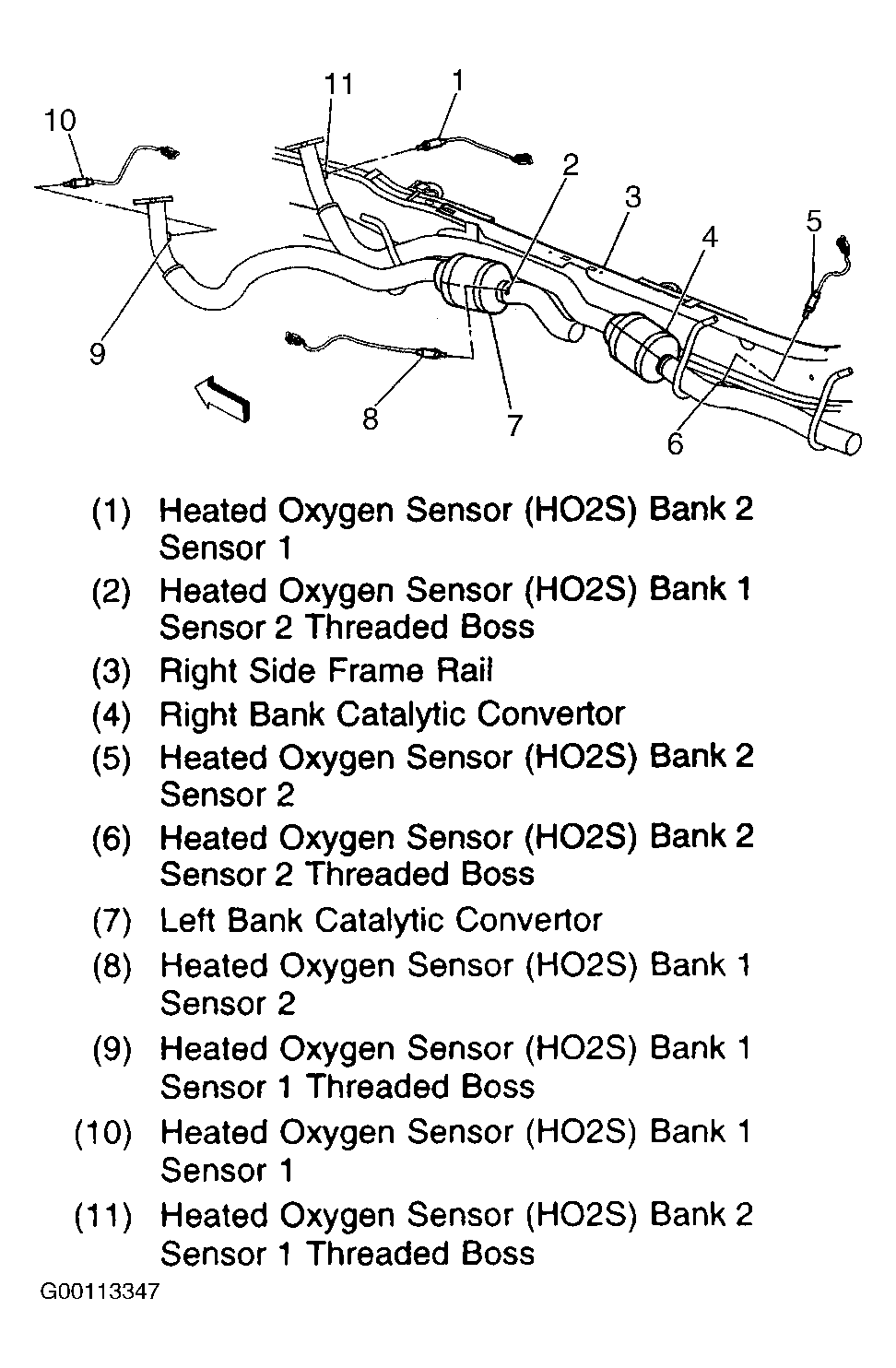

Fig 6: Locating HO2S (6.0L)

Courtesy of GENERAL MOTORS CORP.

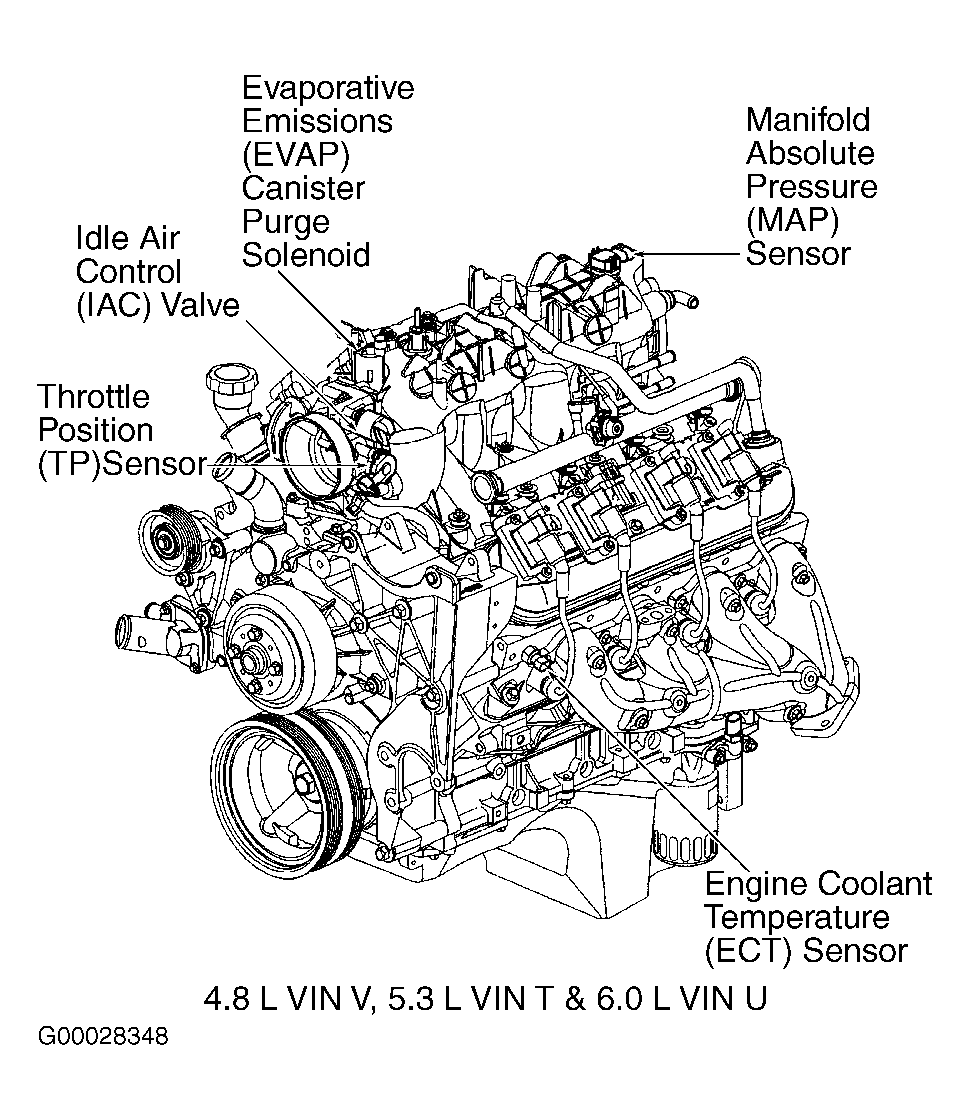

Fig 7: Locating IAC, EVAP Purge Solenoid, MAP, ECT & TP Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 8: Locating Knock Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 9: Locating MAF/IAT Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 10: Locating PCM

Courtesy of GENERAL MOTORS CORP.

Fig 11: Locating Throttle Actuator Control Module

Courtesy of GENERAL MOTORS CORP.
