Connector Identification

Fig 1: Identifying APP Sensor Connector Terminals

G00113356

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying CMP Sensor Connector Terminals

G00113358

Courtesy of GENERAL MOTORS CORP.

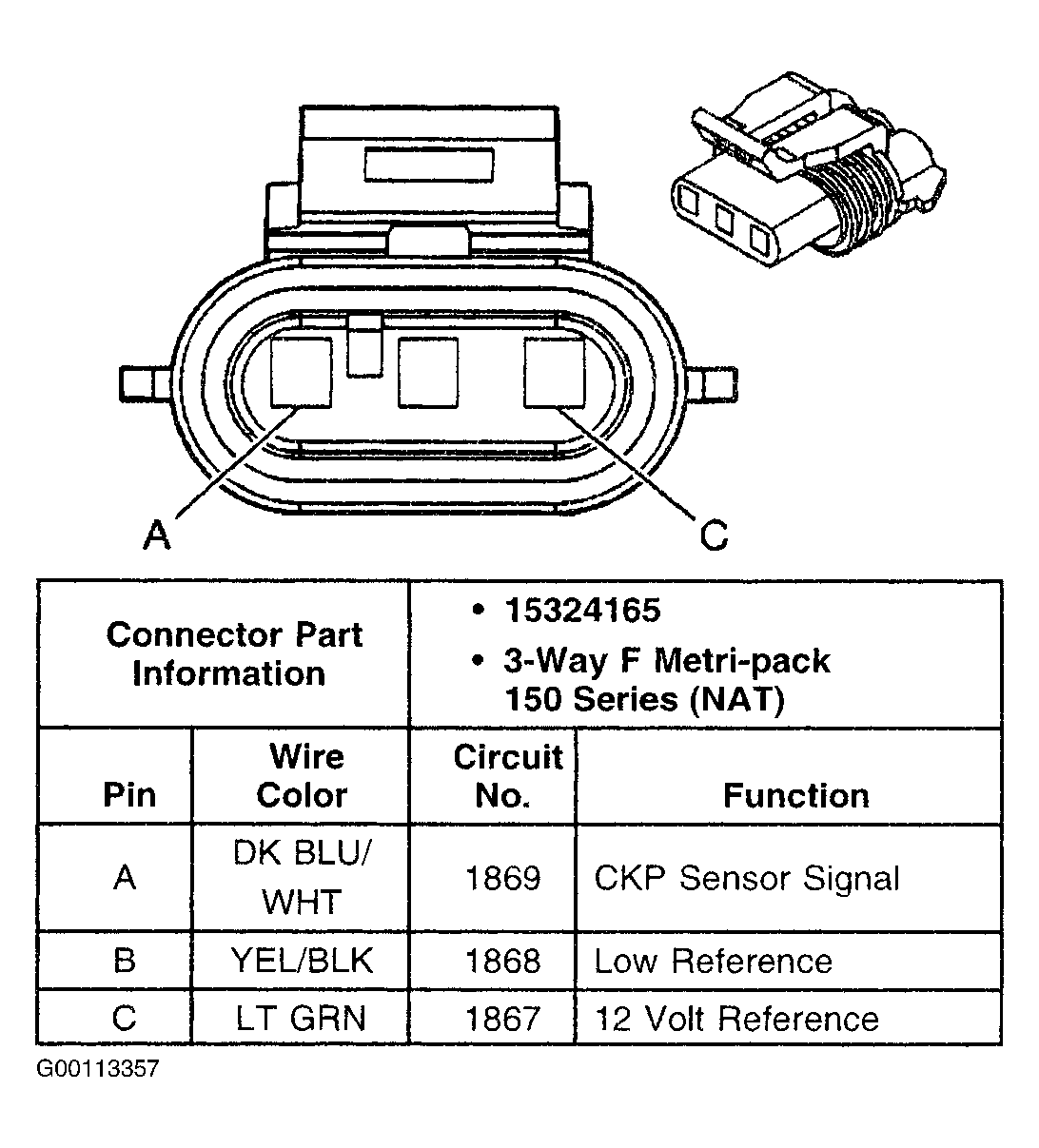

Fig 3: Identifying CKP Sensor Connector Terminals

G00113357

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying ECT Sensor Connector Terminals

G00113359

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying EVAP Purge Solenoid Connector Terminals

G00113360

Courtesy of GENERAL MOTORS CORP.

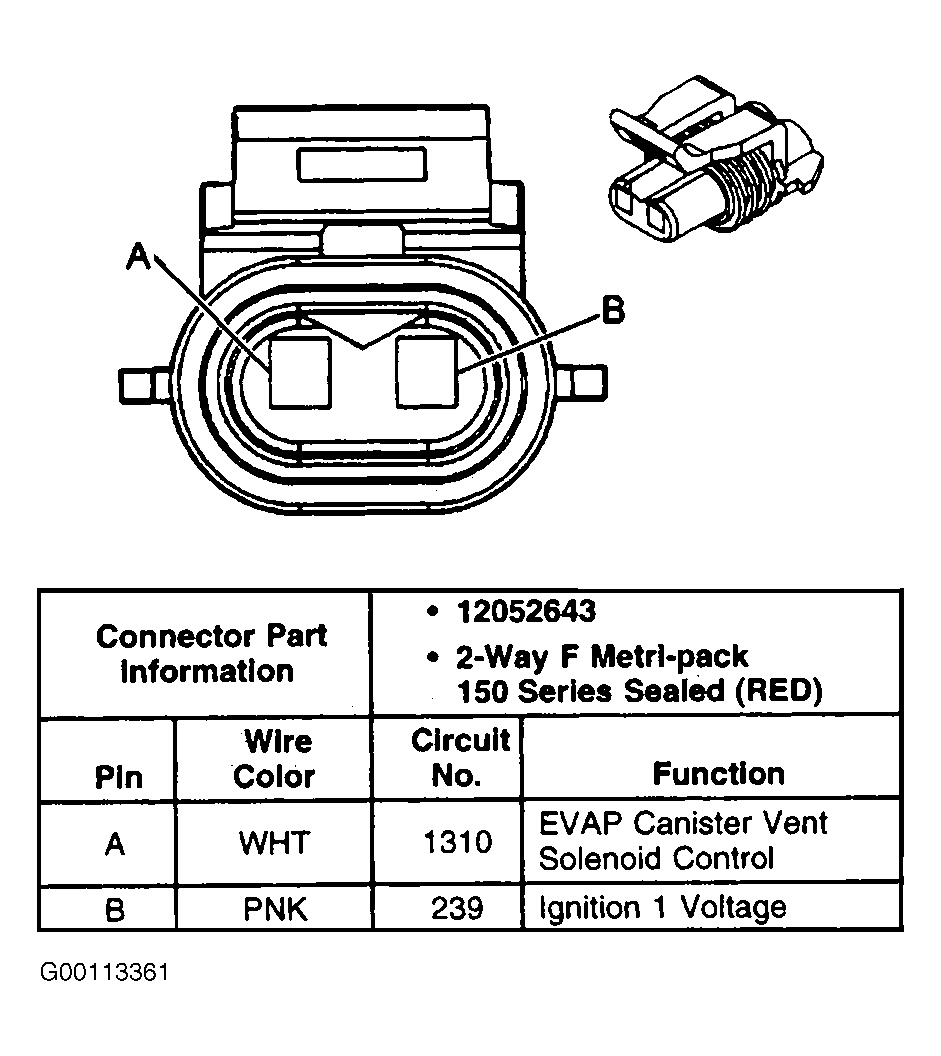

Fig 6: Identifying EVAP Vent Solenoid Connector Terminals

G00113361

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying EGR Valve Connector Terminals

G00113362

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Fuel Pump & Sender Connector Terminals (Primary)

G00113363

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Fuel Pump & Sender Connector Terminals (Secondary)

G00113364

Courtesy of GENERAL MOTORS CORP.

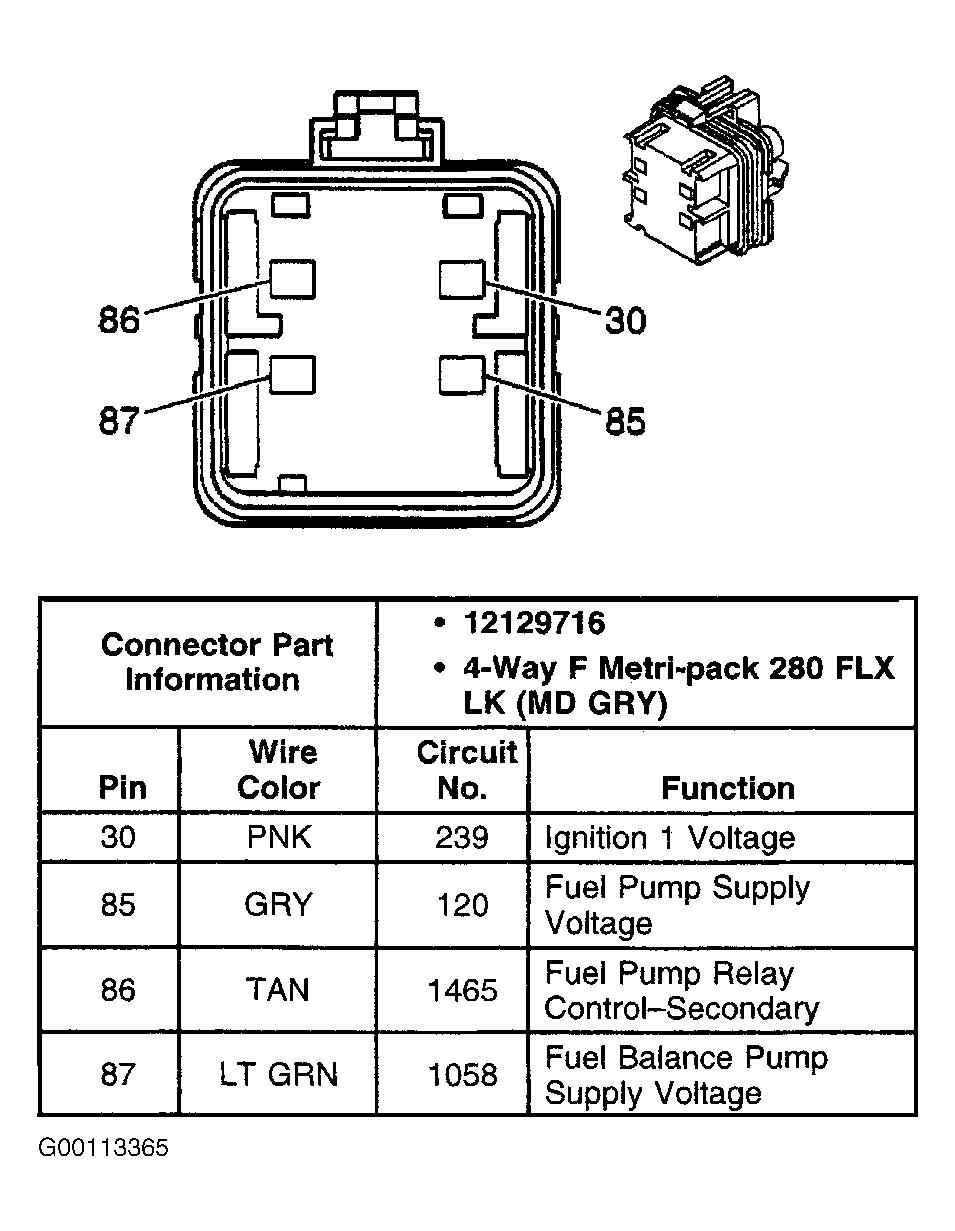

Fig 10: Identifying Fuel Pump Relay Connector Terminals (Secondary)

G00113365

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying FTP Sensor Connector Terminals

G00113366

Courtesy of GENERAL MOTORS CORP.

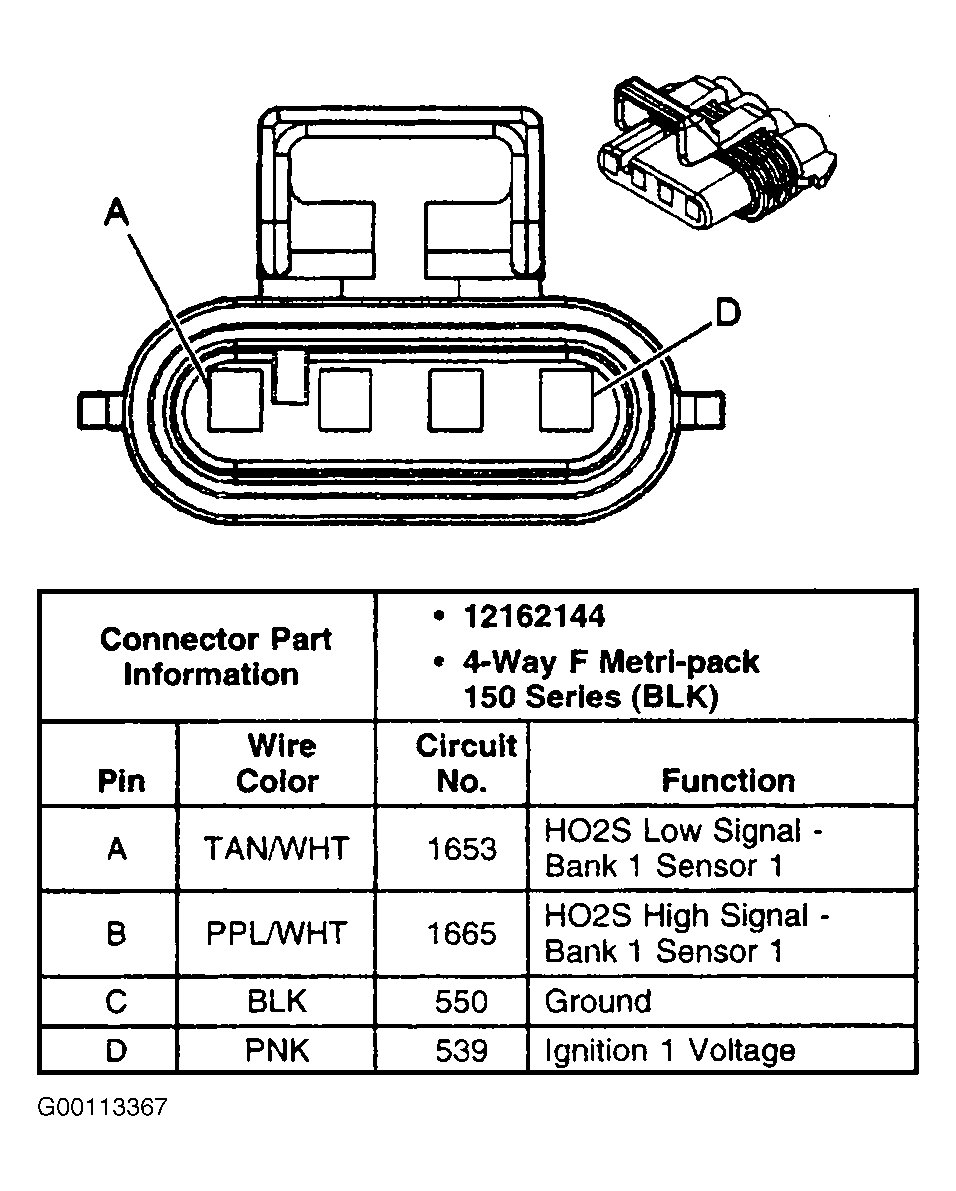

Fig 12: Identifying HO2S Bank 1, Sensor 1 Connector Terminals (Delphi)

G00113367

Courtesy of GENERAL MOTORS CORP.

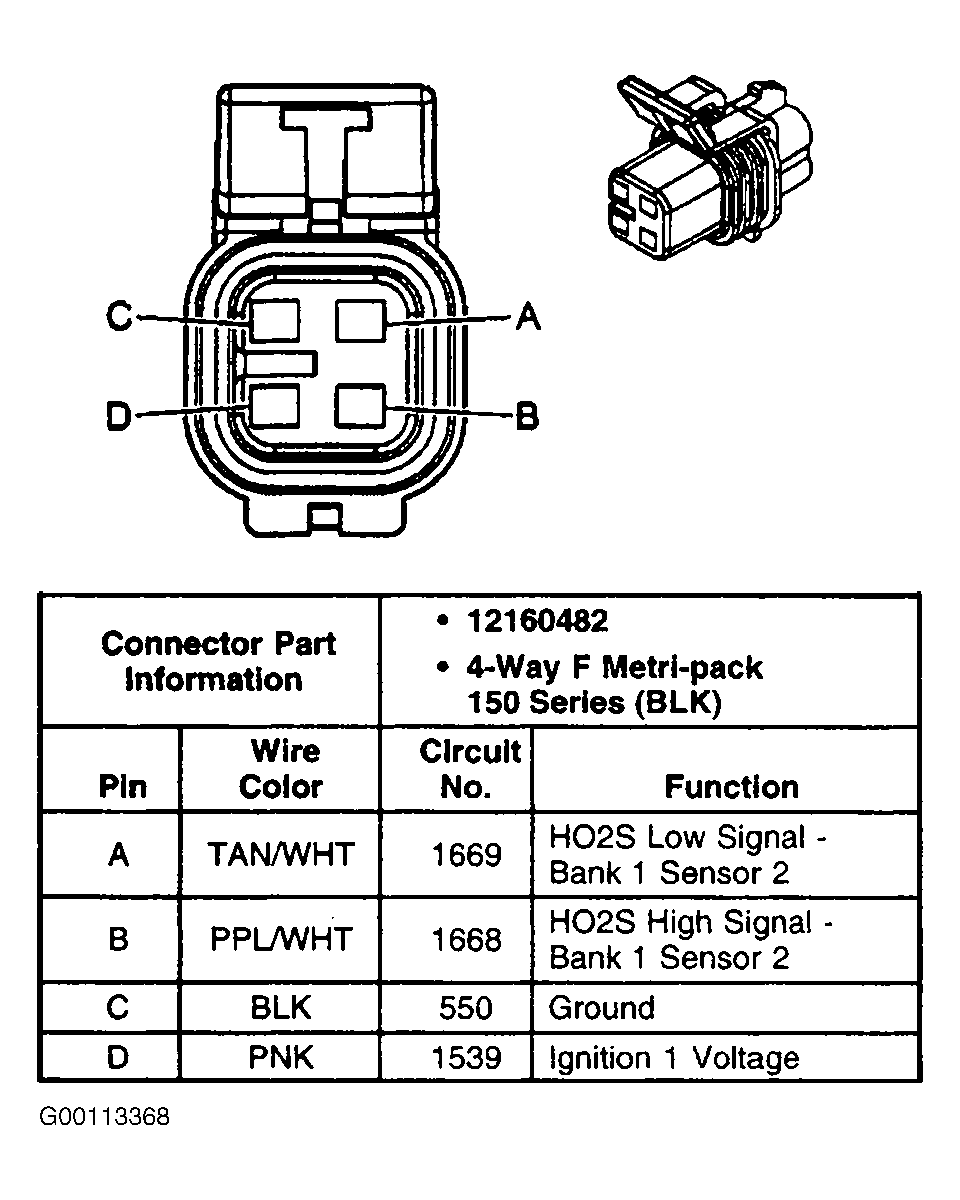

Fig 13: Identifying HO2S Bank 1, Sensor 2 Connector Terminals (Delphi)

G00113368

Courtesy of GENERAL MOTORS CORP.

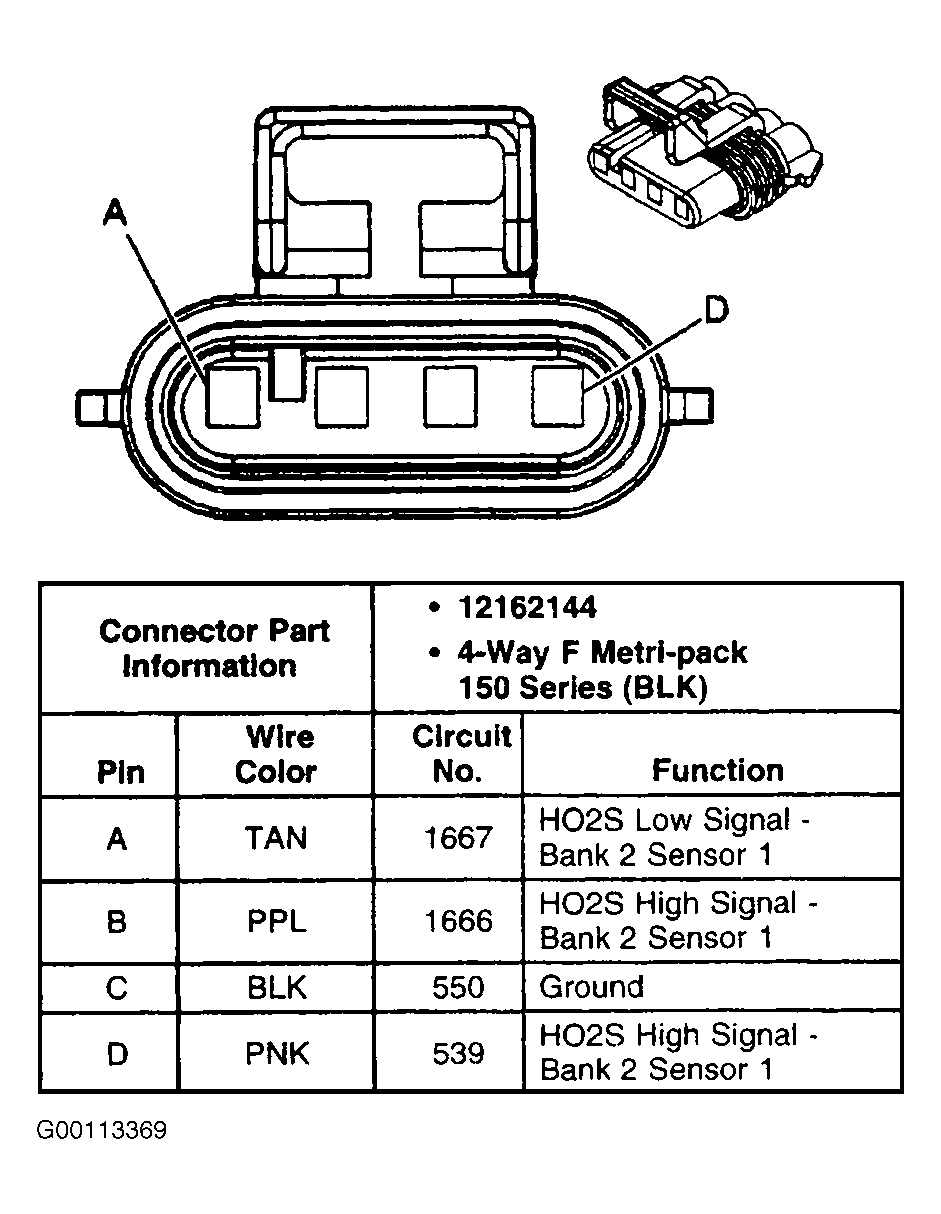

Fig 14: Identifying HO2S Bank 2, Sensor 1 Connector Terminals (Delphi)

G00113369

Courtesy of GENERAL MOTORS CORP.

Fig 15: Identifying HO2S Bank 2, Sensor 2 Connector Terminals (Delphi)

G00113370

Courtesy of GENERAL MOTORS CORP.

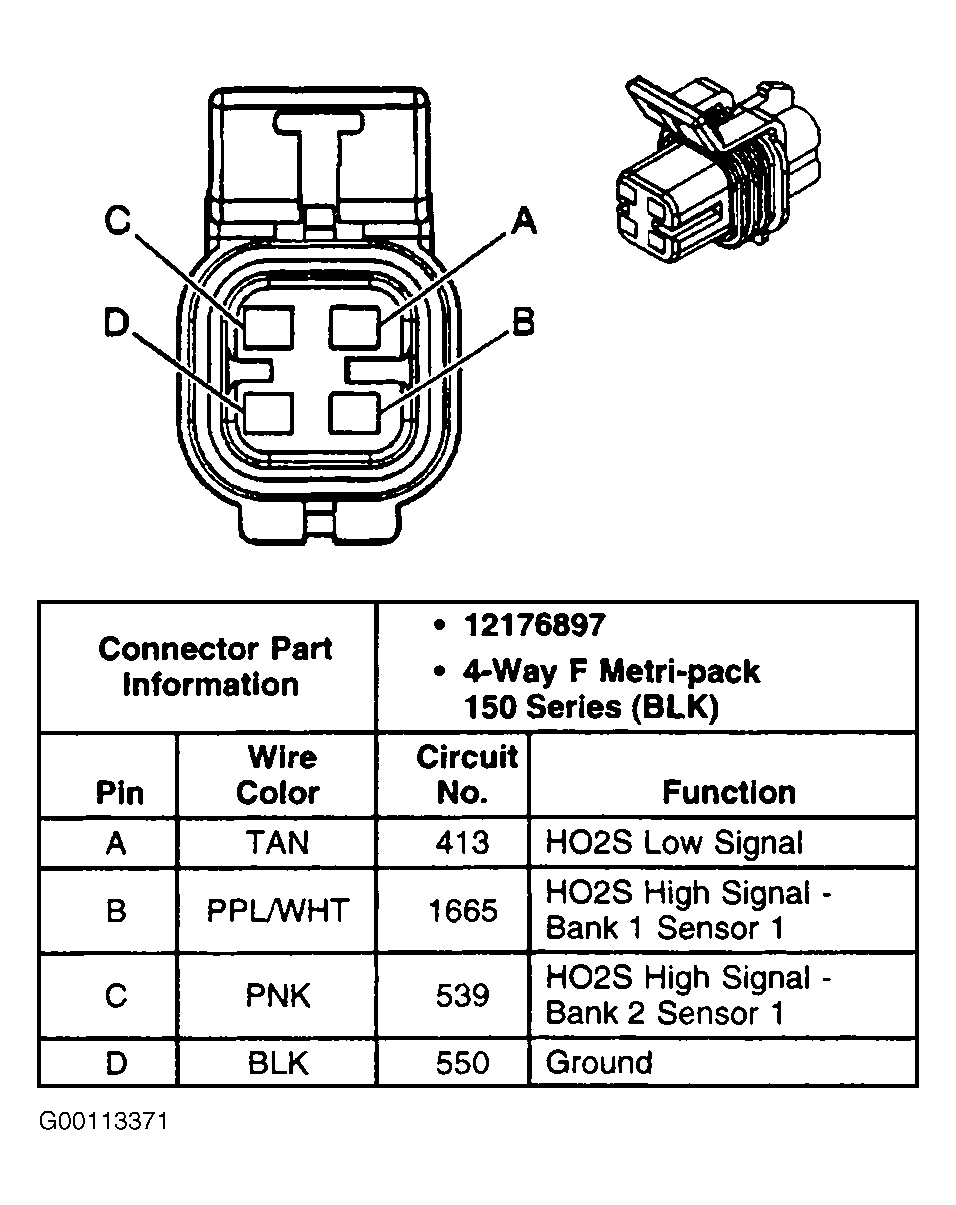

Fig 16: Identifying HO2S Bank 1, Sensor 1 Connector Terminals (Denso)

G00113371

Courtesy of GENERAL MOTORS CORP.

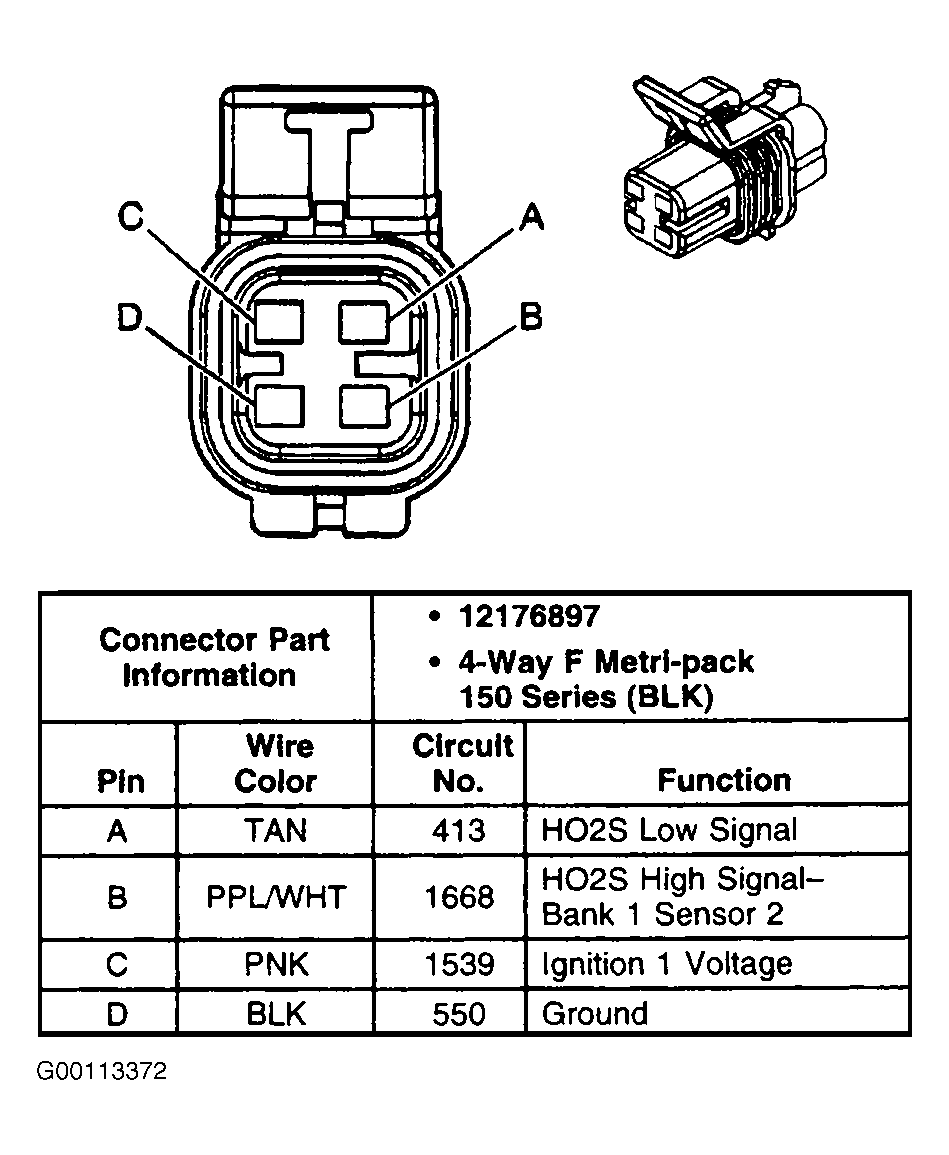

Fig 17: Identifying HO2S Bank 1, Sensor 2 Connector Terminals (Denso)

G00113372

Courtesy of GENERAL MOTORS CORP.

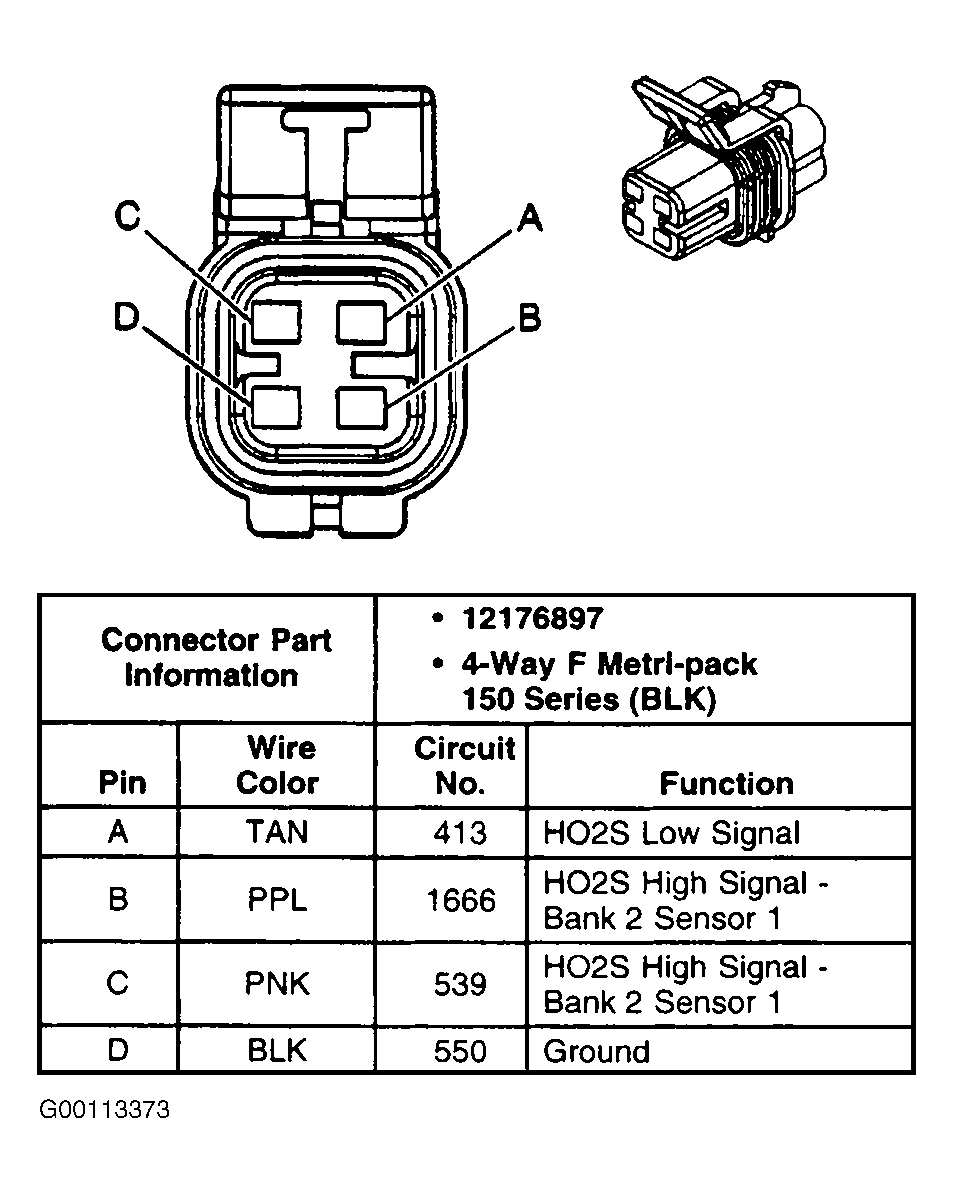

Fig 18: Identifying HO2S Bank 2, Sensor 1 Connector Terminals (Denso)

G00113373

Courtesy of GENERAL MOTORS CORP.

Fig 19: Identifying HO2S Bank 2, Sensor 2 Connector Terminals (Denso)

G00113374

Courtesy of GENERAL MOTORS CORP.

Fig 20: Identifying IAC Valve Connector Terminals

G00101510

Courtesy of GENERAL MOTORS CORP.

Fig 21: Identifying Knock Sensor Connector Terminals

G00113376

Courtesy of GENERAL MOTORS CORP.

Fig 22: Identifying MAF/IAT Sensor Connector Terminals

G00113375

Courtesy of GENERAL MOTORS CORP.

Fig 23: Identifying MAP Sensor Connector Terminals

G00113377

Courtesy of GENERAL MOTORS CORP.

Fig 24: Identifying PCM Connector C1 Terminals (1 Of 3)

G00113350

Courtesy of GENERAL MOTORS CORP.

Fig 25: Identifying PCM Connector C1 Terminals (2 Of 3)

G00113351

Courtesy of GENERAL MOTORS CORP.

Fig 26: Identifying PCM Connector C1 Terminals (3 Of 3)

G00113352

Courtesy of GENERAL MOTORS CORP.

Fig 27: Identifying PCM Connector C2 Terminals (1 Of 3)

G00113353

Courtesy of GENERAL MOTORS CORP.

Fig 28: Identifying PCM Connector C2 Terminals (2 Of 3)

G00113354

Courtesy of GENERAL MOTORS CORP.

Fig 29: Identifying PCM Connector C2 Terminals (3 Of 3)

G00113355

Courtesy of GENERAL MOTORS CORP.

Fig 30: Identifying Throttle Actuator Control Module Connector C1 Terminals

G00113378

Courtesy of GENERAL MOTORS CORP.

Fig 31: Identifying Throttle Actuator Control Module Connector C2 Terminals

G00113379

Courtesy of GENERAL MOTORS CORP.

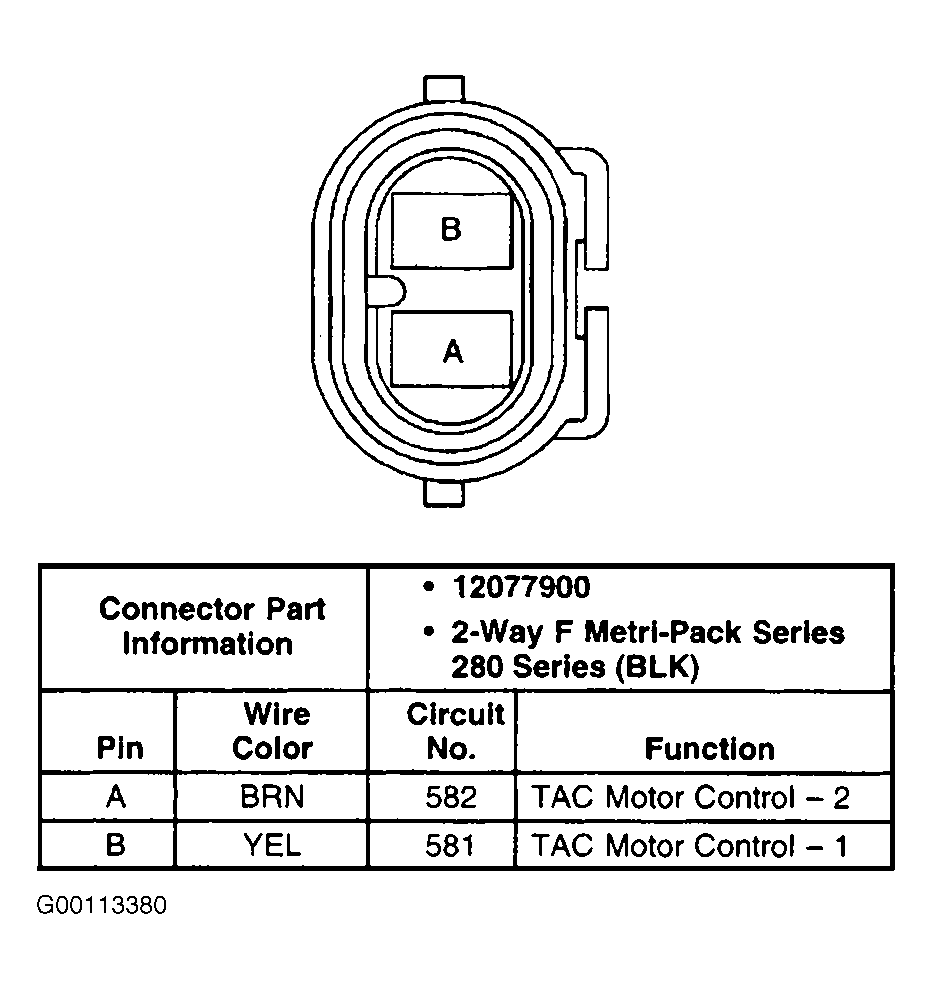

Fig 32: Identifying Throttle Actuator Control Motor Connector Terminals

G00113380

Courtesy of GENERAL MOTORS CORP.

Fig 33: Identifying TP Sensor Connector Terminals

G00113381

Courtesy of GENERAL MOTORS CORP.

Fig 34: Identifying TP Sensor Connector Terminals (Dual Track)

G00113382

Courtesy of GENERAL MOTORS CORP.
