Steering Controls Component Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

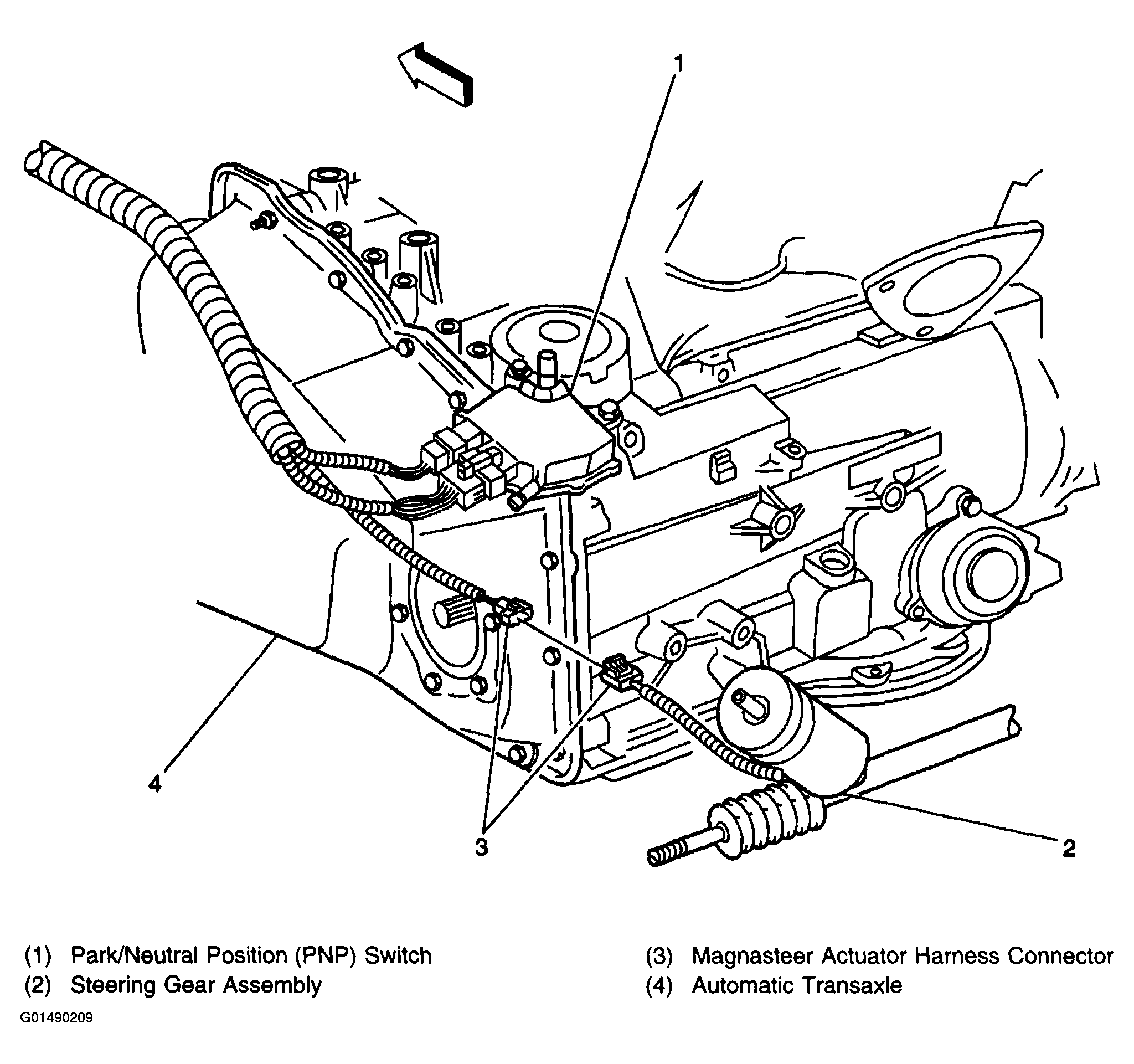

Fig 1: Top Of Automatic Transaxle (LH Side Of Engine Compartment)

Courtesy of GENERAL MOTORS CORP.
