Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat cushion trim cover and pad to expose the heater control module (3). Refer to SEAT CUSHION COVER REPLACEMENT - FRONT .
To remove the module from the seat inboard frame, pinch the retaining pin together and pull the module out.

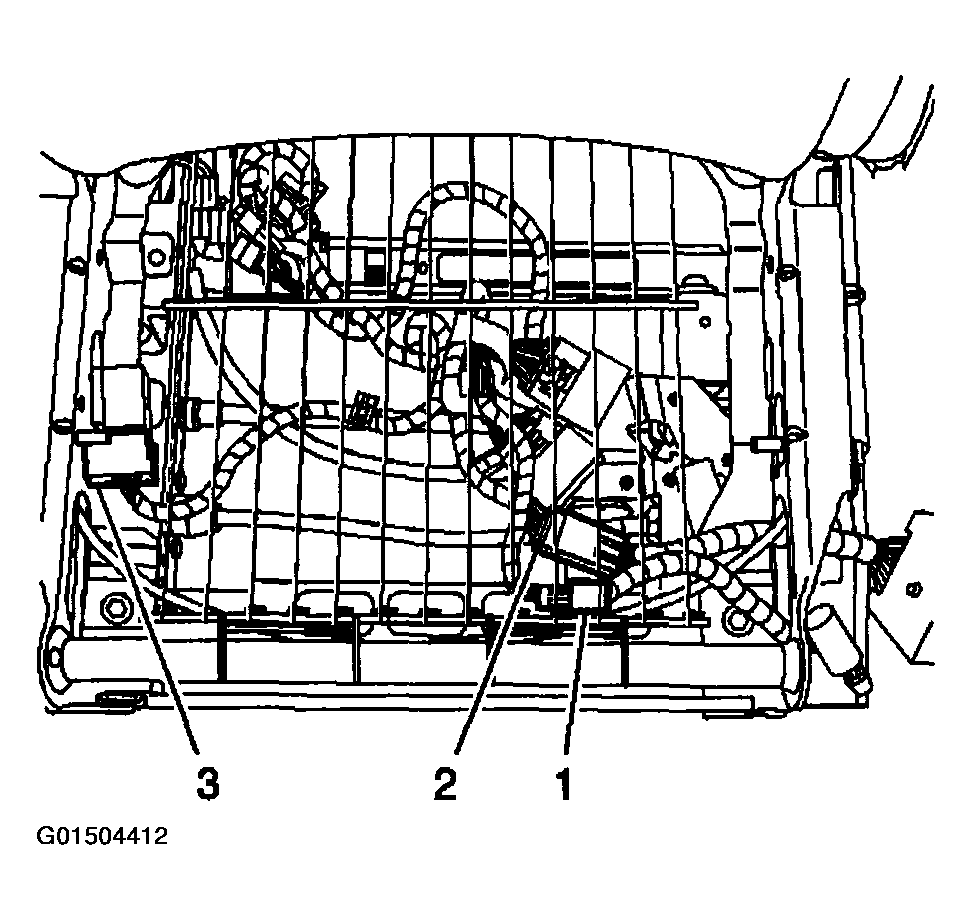

Fig 1: Locating Heated Seat Control Module
Courtesy of GENERAL MOTORS CORP.
Disconnect the module from the electrical connector.
Remove the module from the vehicle.

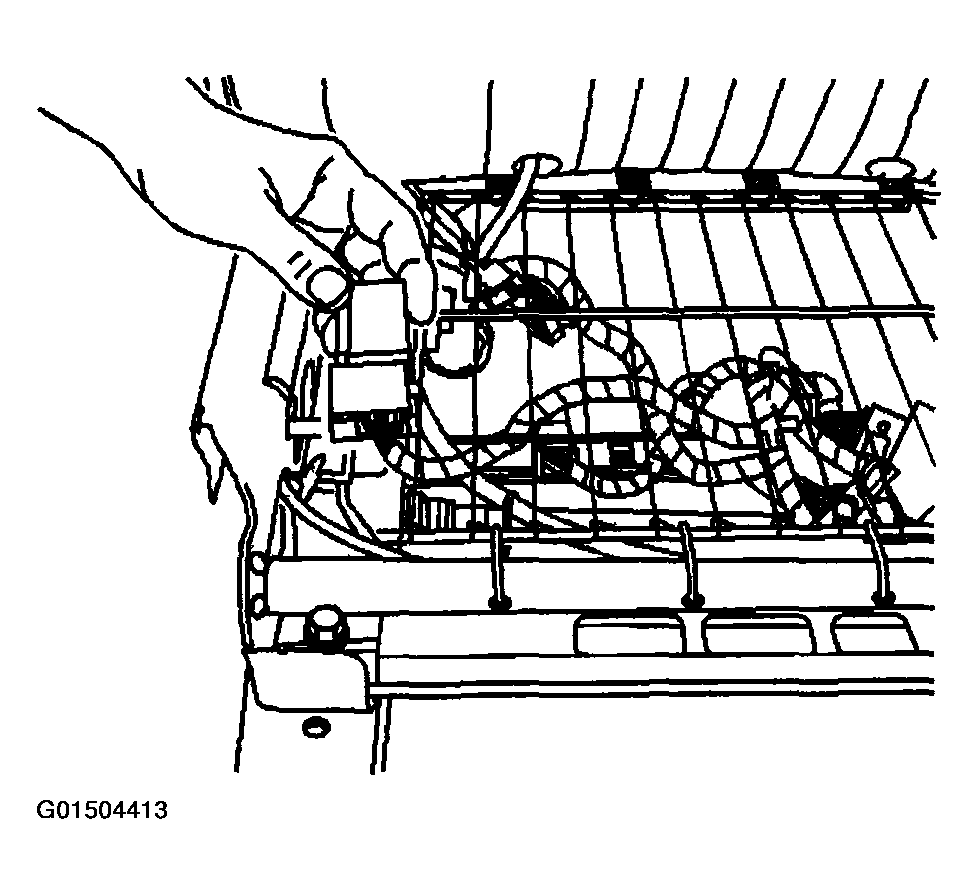

Fig 2: Disconnecting Module From Electrical Connector
Courtesy of GENERAL MOTORS CORP.
