Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the brace (1) to the vehicle.
NOTE: Refer to FASTENER NOTICE .
Install the 3 bolts that retain the brace to the bumper and the outboard brace plate.
Tighten
- Tighten the front bumper brace bolt (2) to 15 N.m (11 lb ft).
- Tighten the front bumper outboard brace plate bolt (3) to 9 N.m (80 lb in).

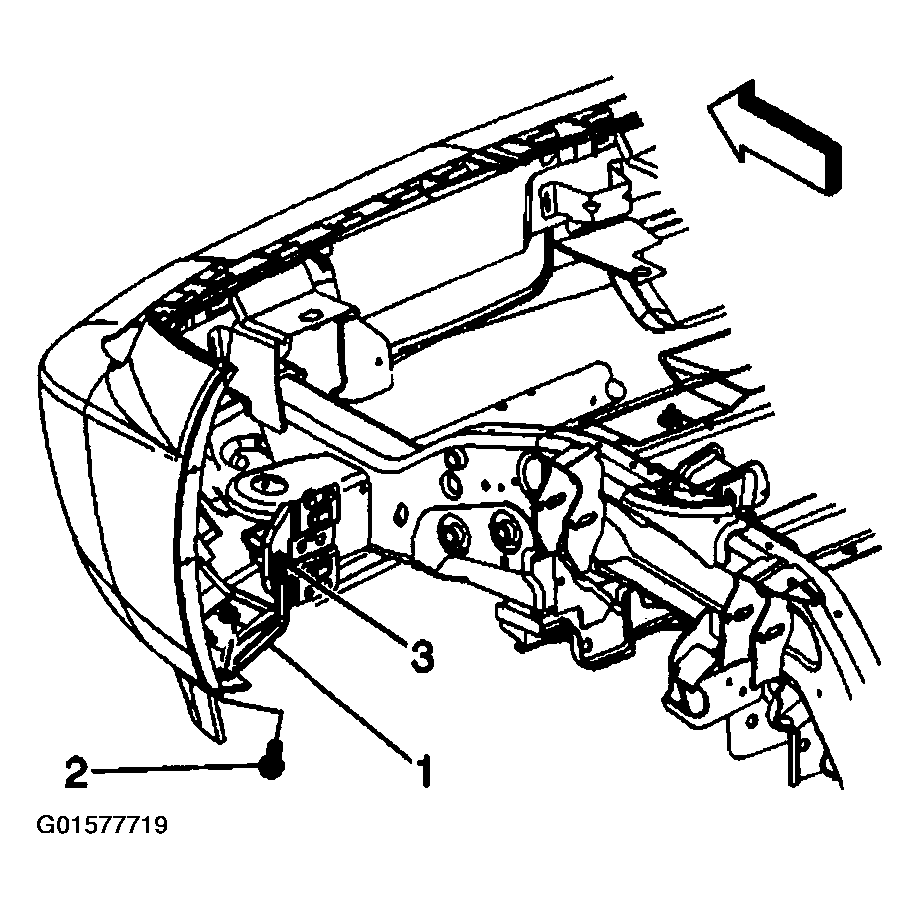

Fig 1: Installing Front Bumper Brace
Courtesy of GENERAL MOTORS CORP.
