Installation Procedure
WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

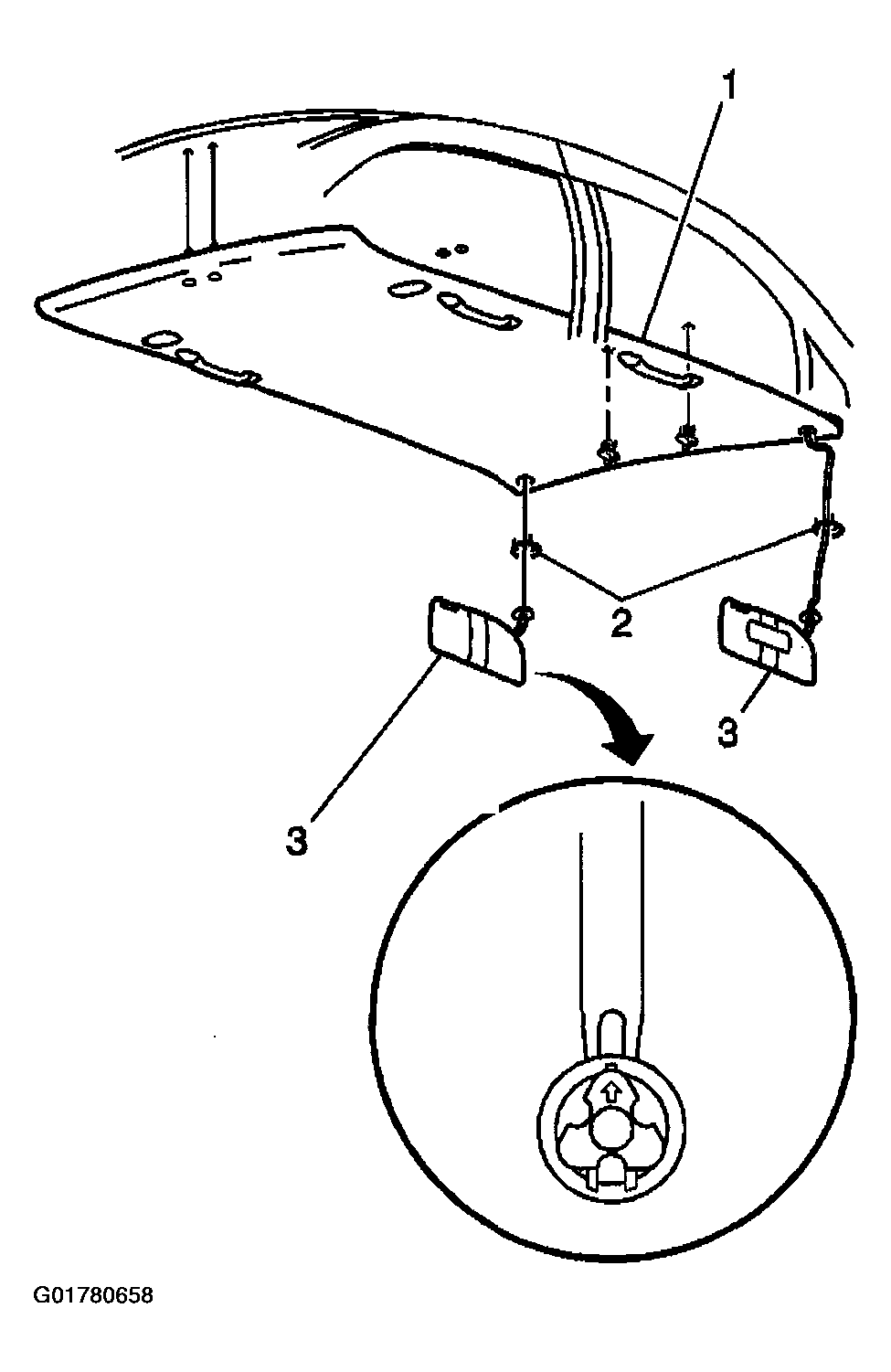

- Install the sunshade bezel (2) to the headliner (1) if required.
- Connect the electrical connector if required.
- Align the sunshade (3) parallel to the door.
- Install the sunshade (3) to the sunshade bezel (2). Push up on the sunshade (3) and rotate the sunshade toward the front glass in order to connect the retention clip.
- Reattach the sunshade (3) to the sunshade anchor.
