Wiper/Washer System Component Views

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Rear Of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

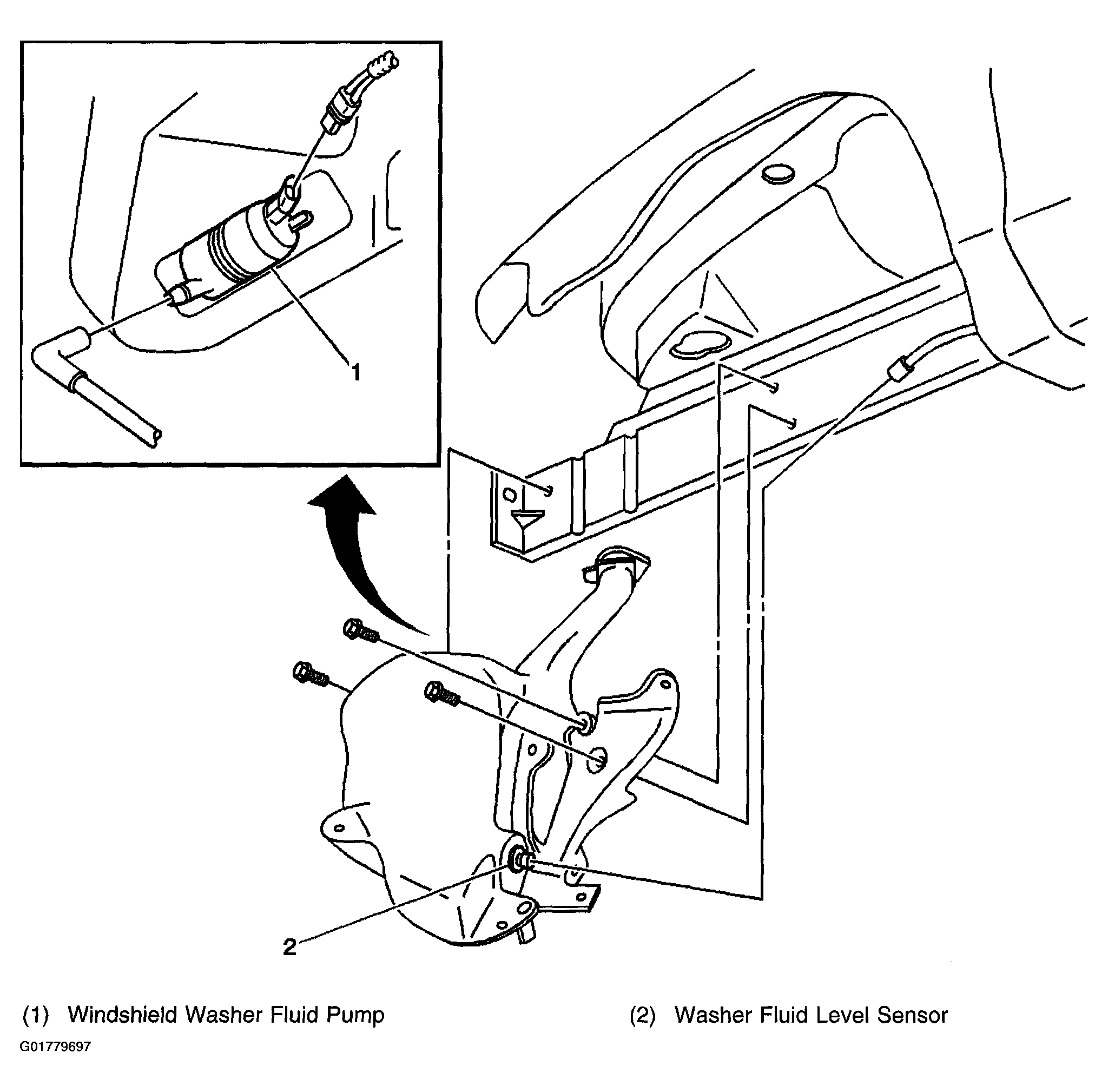

Fig 2: Identifying Washer Fluid Reservoir Component View

Courtesy of GENERAL MOTORS CORP.
