Installation Procedure
WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

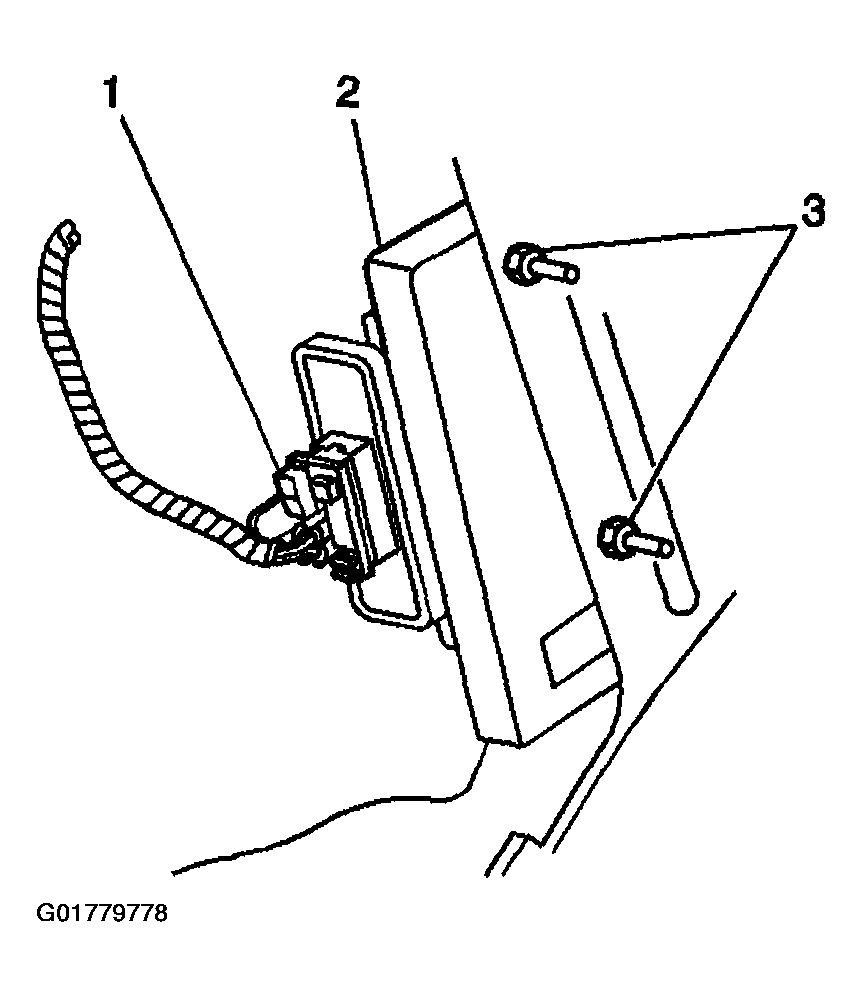

- Connect the electrical connector (1) to the amplifier (2).
- Install the amplifier (2) to the left wheelhouse slots, sliding in and down.CAUTION: Refer to FASTENER NOTICE .
- Tighten the nuts (3) to the amplifier bracket.
Tighten
Tighten the nuts on the amplifier bracket to 10 N.m (89 lb in).
- Install the rear compartment trim on the left side. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .
