Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Position the battery tray to the battery support.
CAUTION: Refer to FASTENER NOTICE .
Install the bolts attaching the tray.
Tighten

Tighten the battery tray bolts to 31 N.m (23 lb ft).

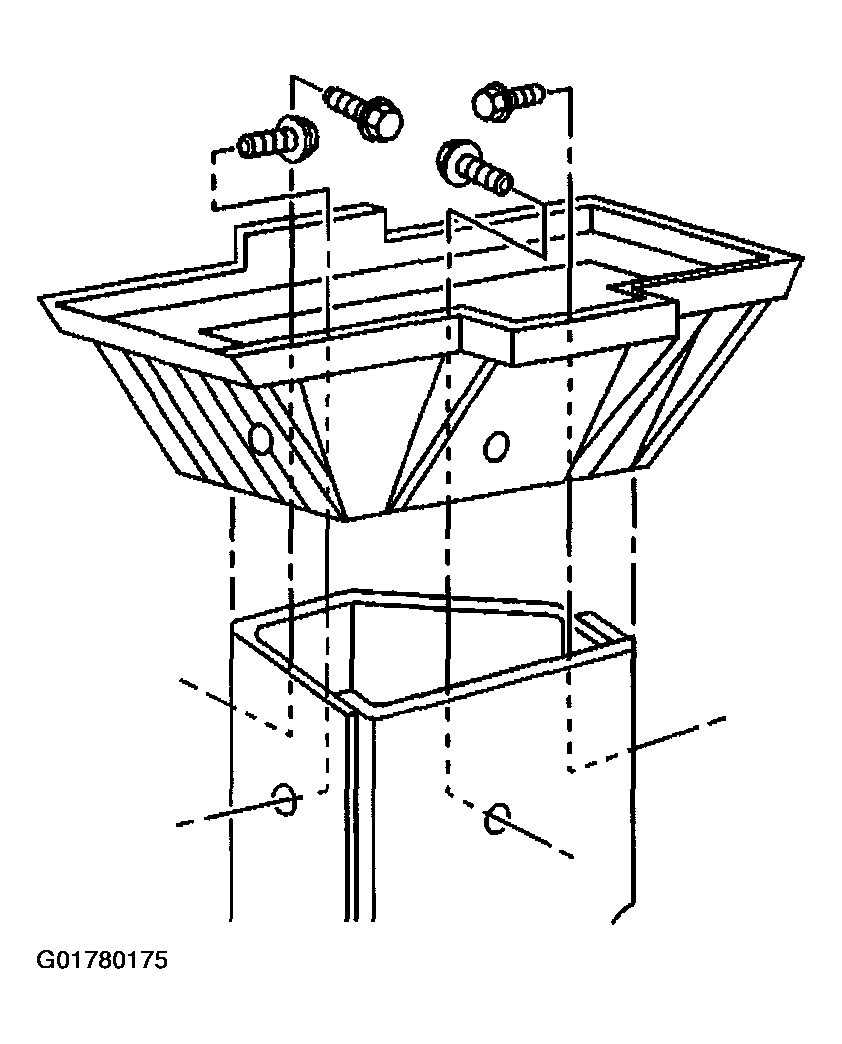

Fig 1: Installing Battery Tray

Courtesy of GENERAL MOTORS CORP.

Install the battery. Refer to BATTERY REPLACEMENT .
