Seat Belt Component Views

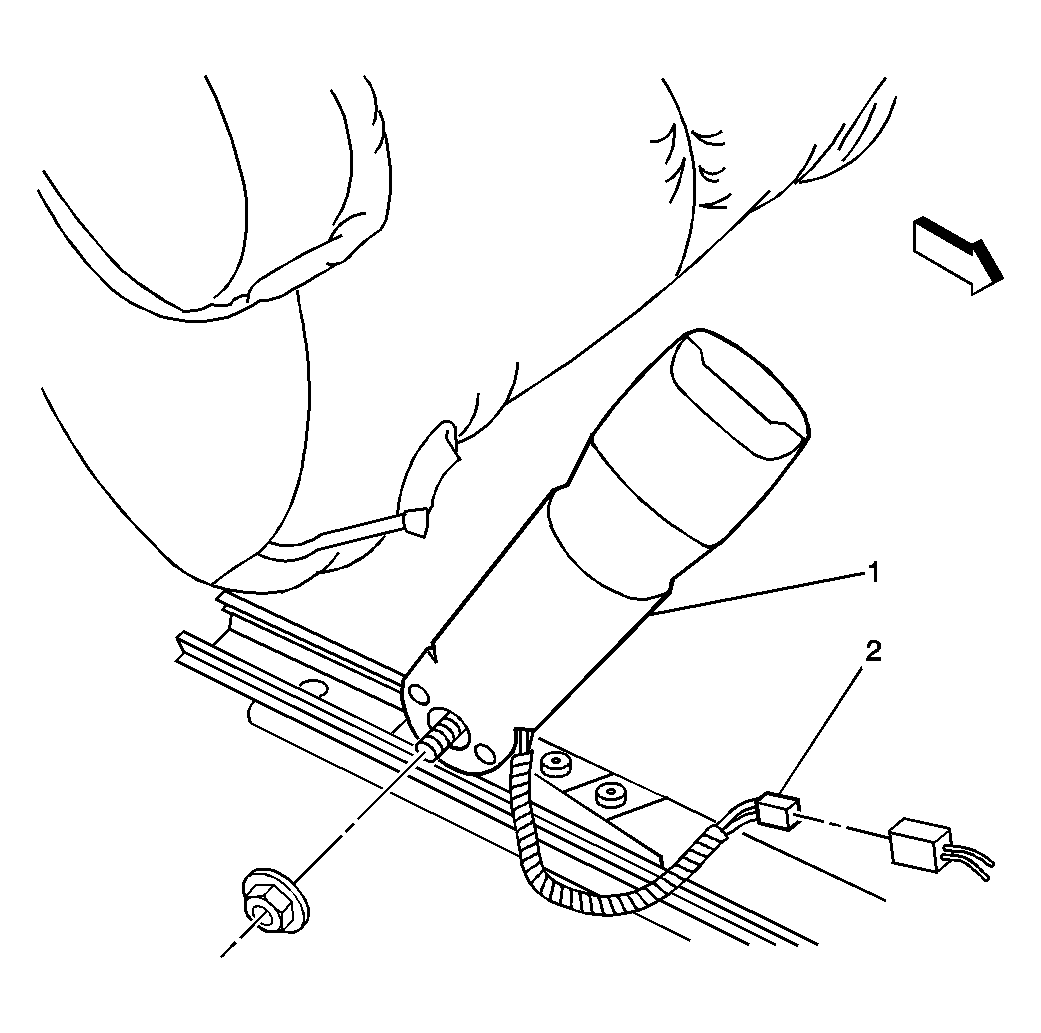

Fig 1: Driver Seat Belt Buckle Component View
GM781067Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Buckle
2 Seat Belt Switch Connector
