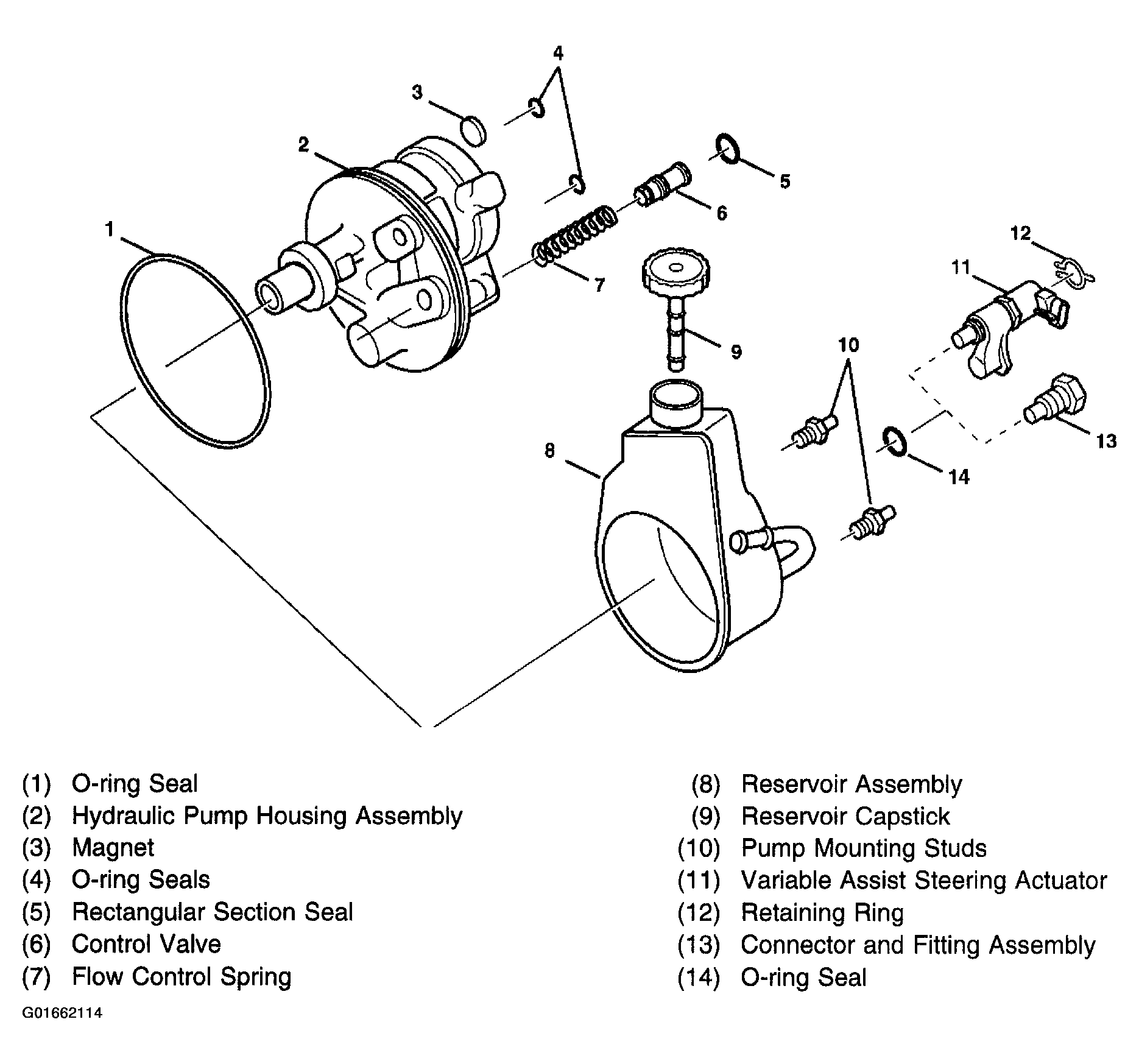

Power Steering Pump Disassembled View (Regular)
Power Steering Pump Disassembled View (Regular)
Fig 1: Identifying C/K Truck Power Steering Pump
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
