Removal Procedure

CAUTION: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  1. Install a drain pan under the vehicle.
  2. Remove the brake booster inlet hose (1) from the brake booster (2).
  3. Remove the brake booster inlet hose from the power steering pump.
  4. Remove the brake booster inlet hose from the vehicle.

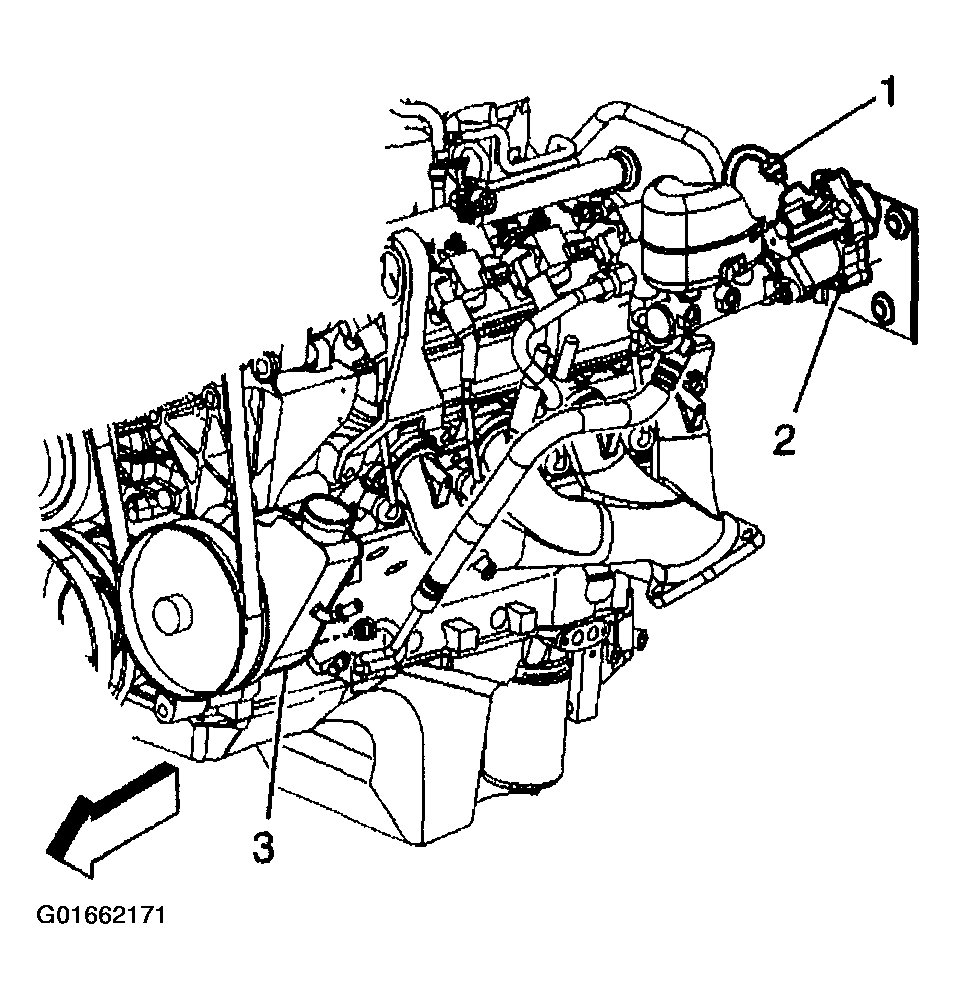

    Fig 1: Removing Brake Booster Inlet Hose
    G01662171Courtesy of GENERAL MOTORS CORP.
