Removal Procedure

CAUTION: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  1. Install a drain pan under the vehicle.
  2. Remove the brake booster outlet hose (1) from the brake booster (2).
  3. Remove the clamp retaining the brake booster outlet hose to the power steering pump.
  4. Remove the brake booster outlet hose from the vehicle.

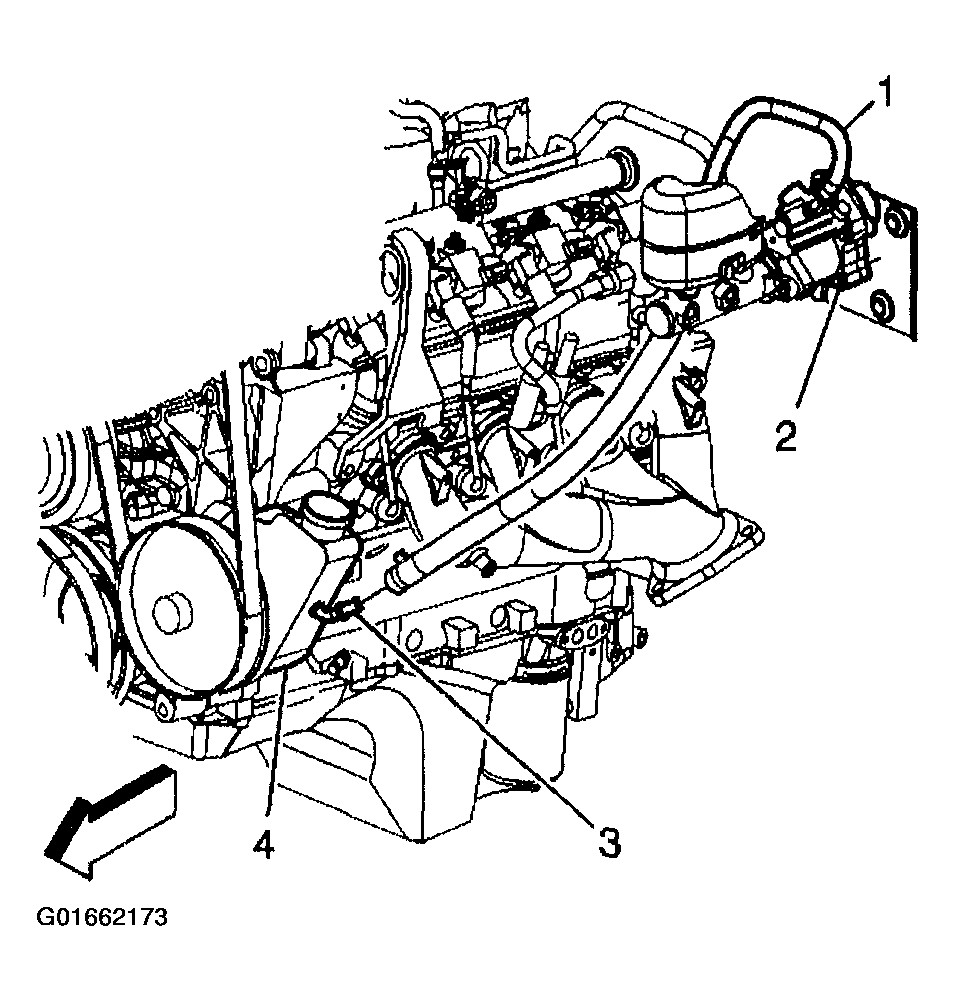

    Fig 1: Removing Power Brake Booster Outlet Hose
    G01662173Courtesy of GENERAL MOTORS CORP.
