Installation Procedure

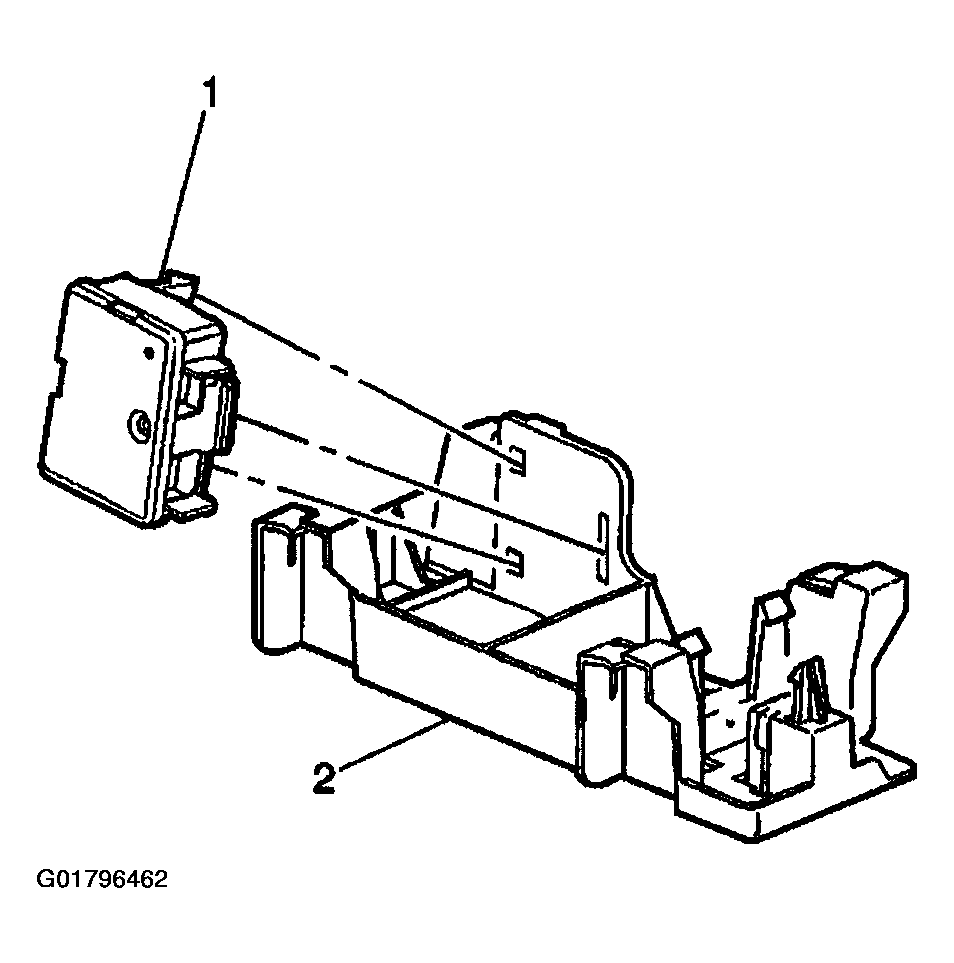

Fig 1: Remote Control Door Lock Receiver

G01796462

Courtesy of GENERAL MOTORS CORP.

Install the remote control door lock receiver (1) to the bracket (2).
Connect the electrical connectors.
Install bracket to rear shelf.
Install rear storage compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .
Program the transmitters to the receiver. Refer to Transmitter Programming .
