Power Door Systems Component Views
Power Door Systems Component Views

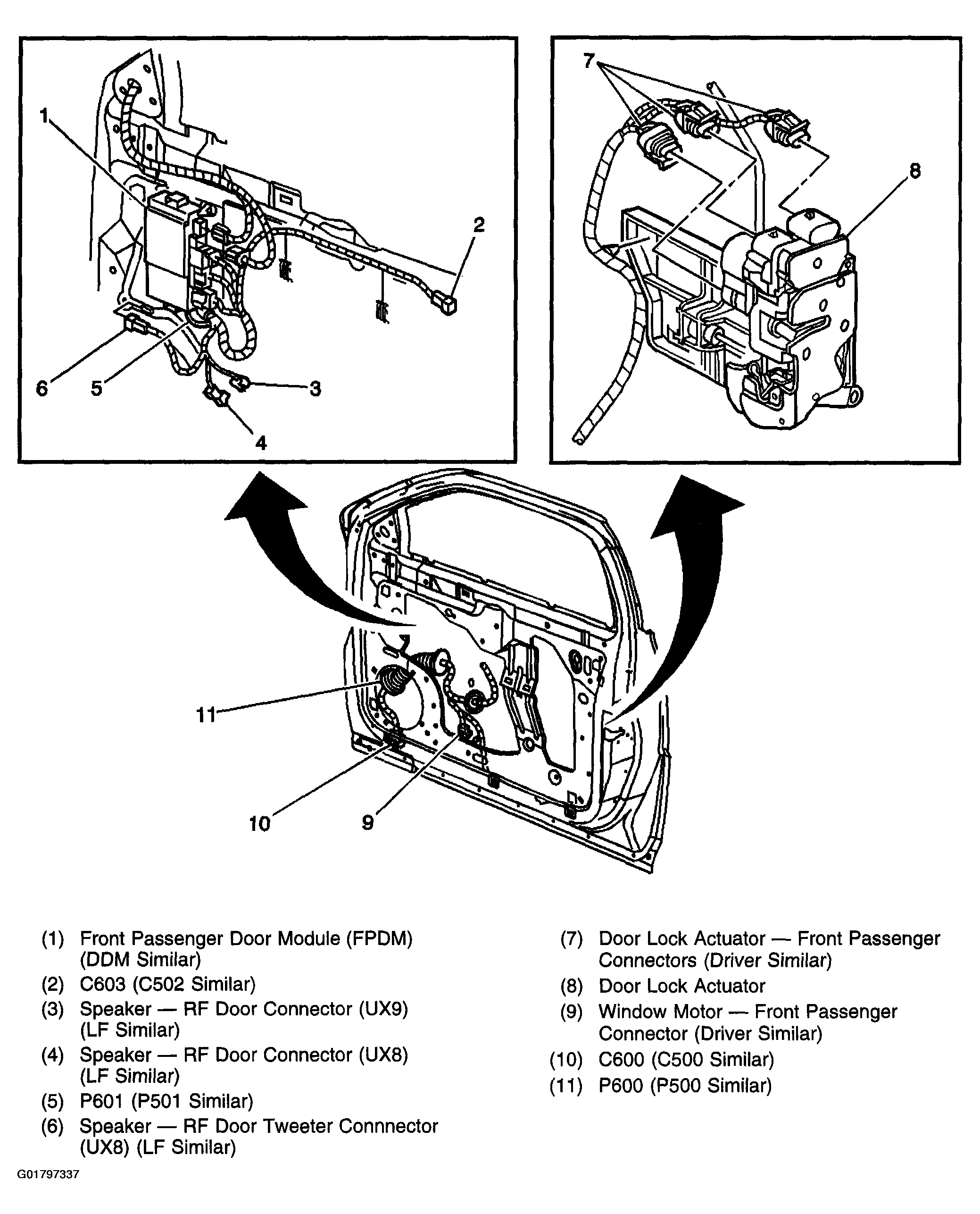

Fig 1: Front Door (LH Drive)
Courtesy of GENERAL MOTORS CORP.

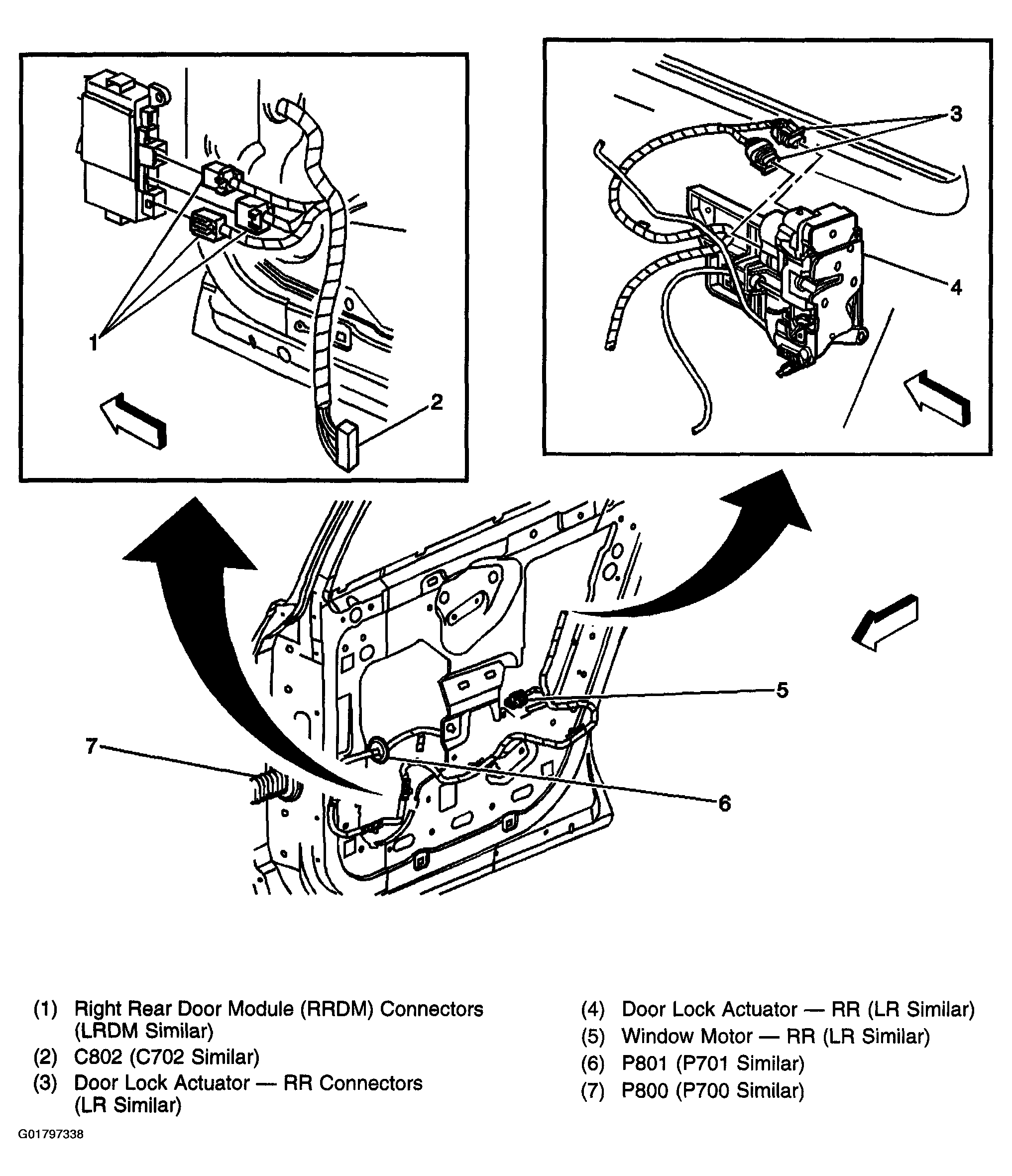

Fig 2: Rear Door
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
