Removal Procedure

CAUTION: Refer to SIR HANDLING CAUTION .
  1. Remove the rear seat back. Refer to Seat Back Replacement - Rear .
  2. Disconnect the electrical connectors to the heated seat module.

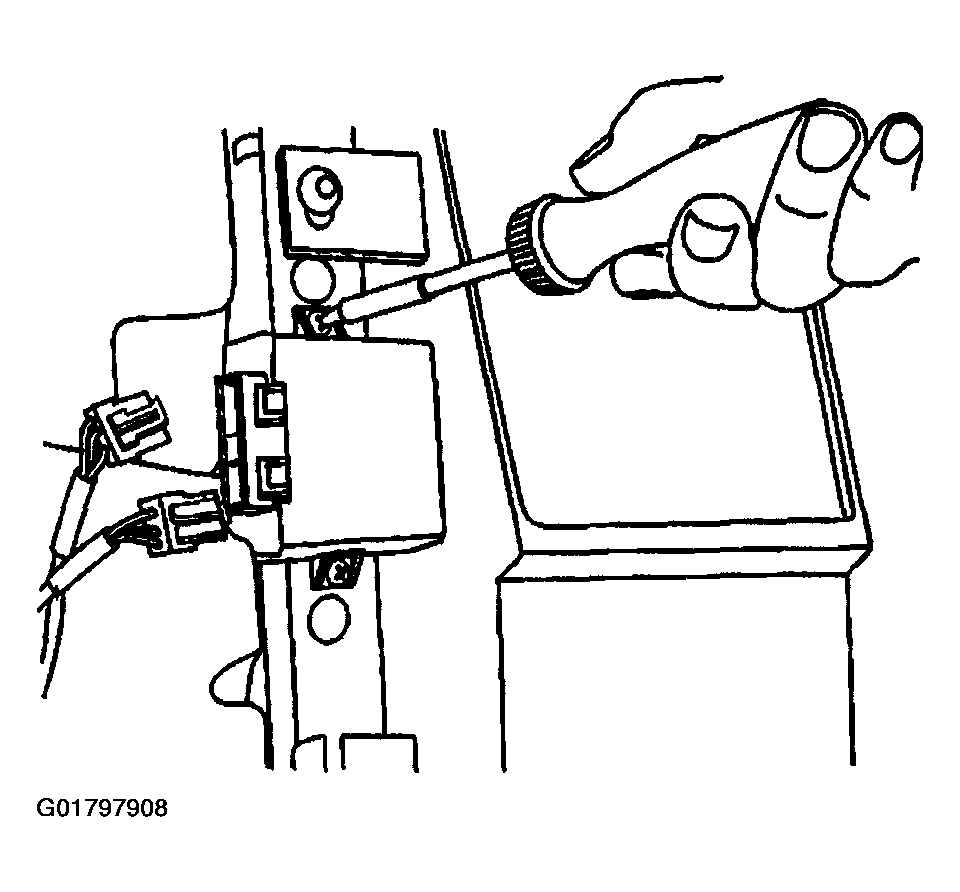

    3. Fig 1: Removing Rear Heated Seat Control Module
    G01797908Courtesy of GENERAL MOTORS CORP.
  3. Remove the fasteners from the heated seat control module.
  4. Remove the rear heated seat module from the seat back.
