Installation Procedure

  1. Install the memory seat switch (2) to the door trim panel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the memory seat switch fasteners (1), fully driven, seated, but not stripped.

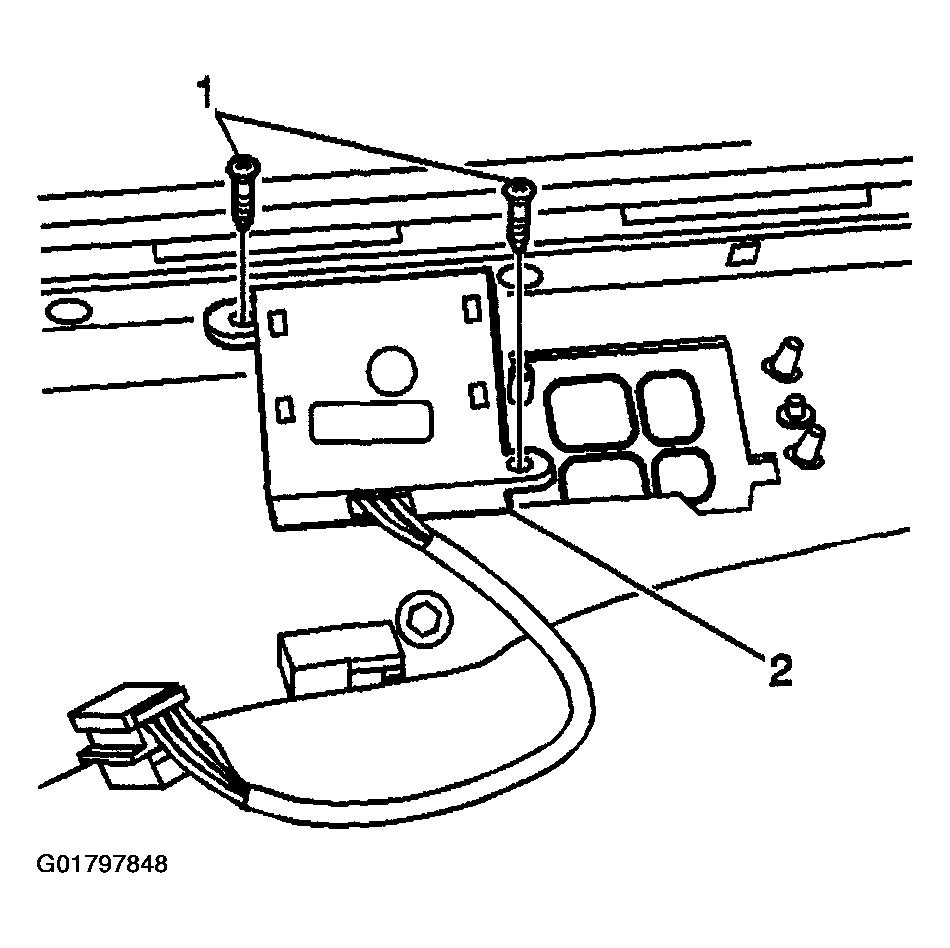

    Fig 1: Memory Seat Switch
    G01797848Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector (2) to the memory seat switch (1).

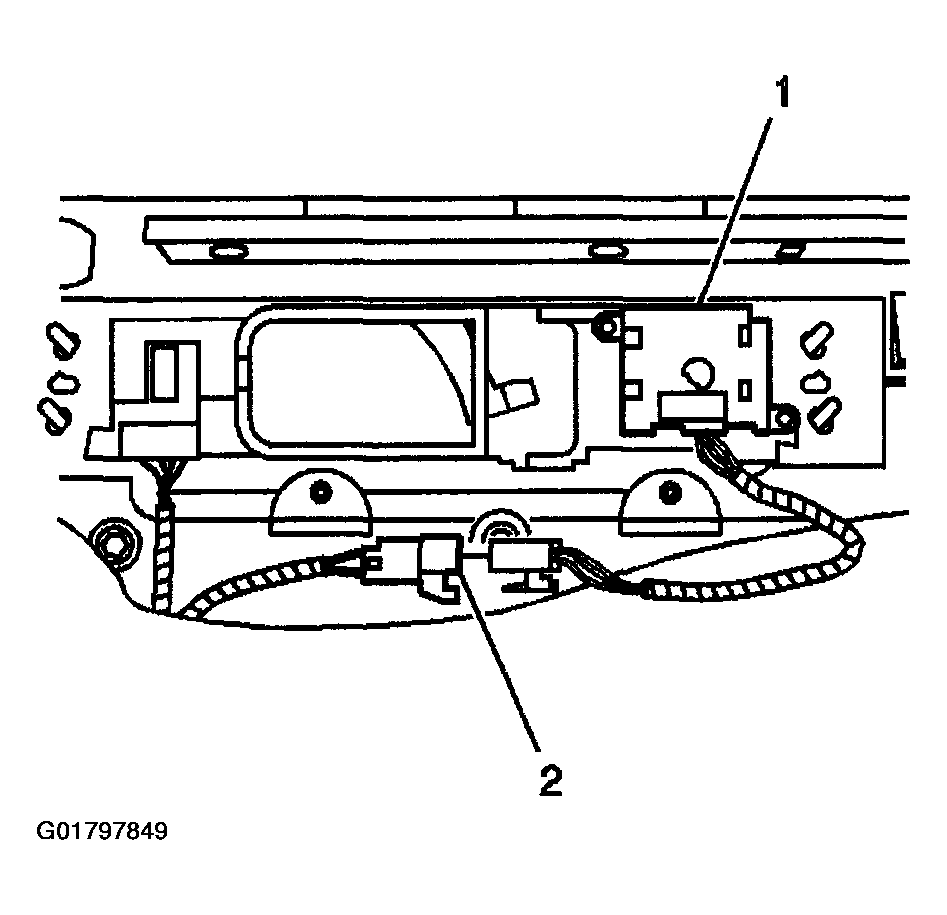

    4. Fig 2: Memory Seat Switch Electrical Connector
    G01797849Courtesy of GENERAL MOTORS CORP.
  4. Install the inside door handle to the door trim panel. Refer to DOOR HANDLE REPLACEMENT - FRONT INSIDE .
  5. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
