Power Windows Inoperative - Express Up Function

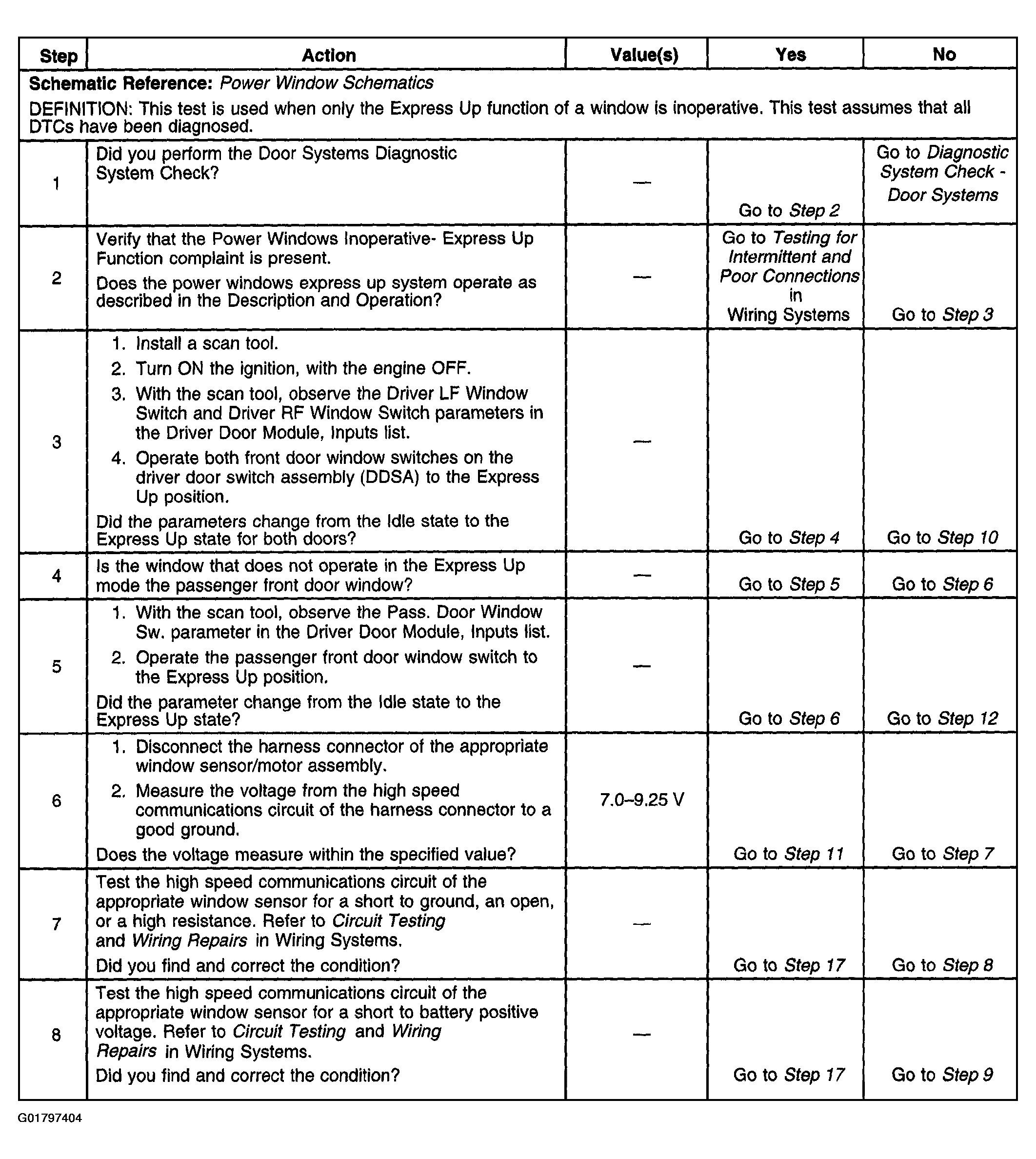

Fig 1: Power Windows Inoperative - Express Up Function Diagnostic Table (Steps 1-8)

Courtesy of GENERAL MOTORS CORP.

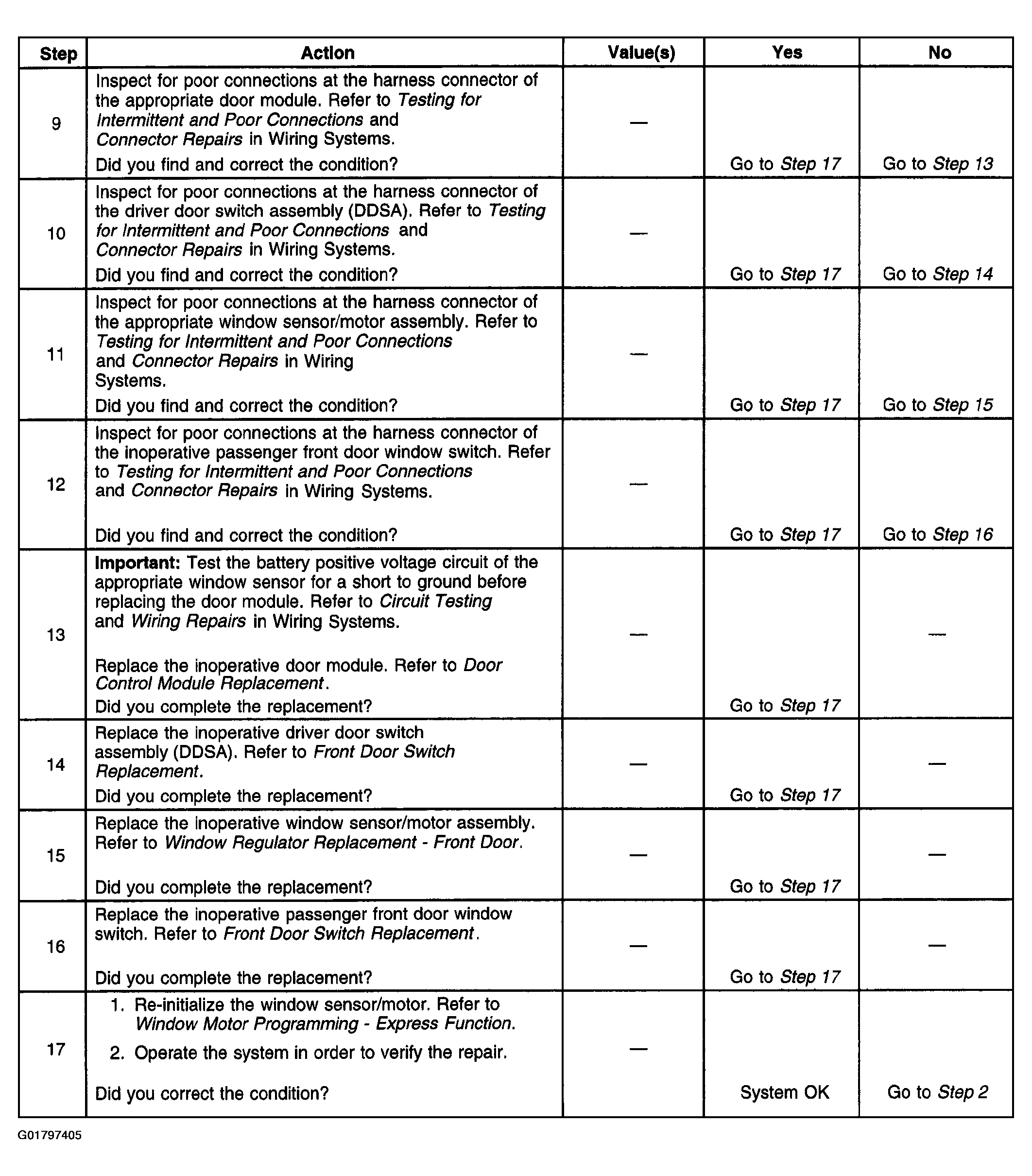

Fig 2: Power Windows Inoperative - Express Up Function Diagnostic Table (Steps 9-17)

Courtesy of GENERAL MOTORS CORP.
