Removal Procedure

Open the door.
Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
Remove the water deflector. Refer to Water Deflector Replacement - Front Door .

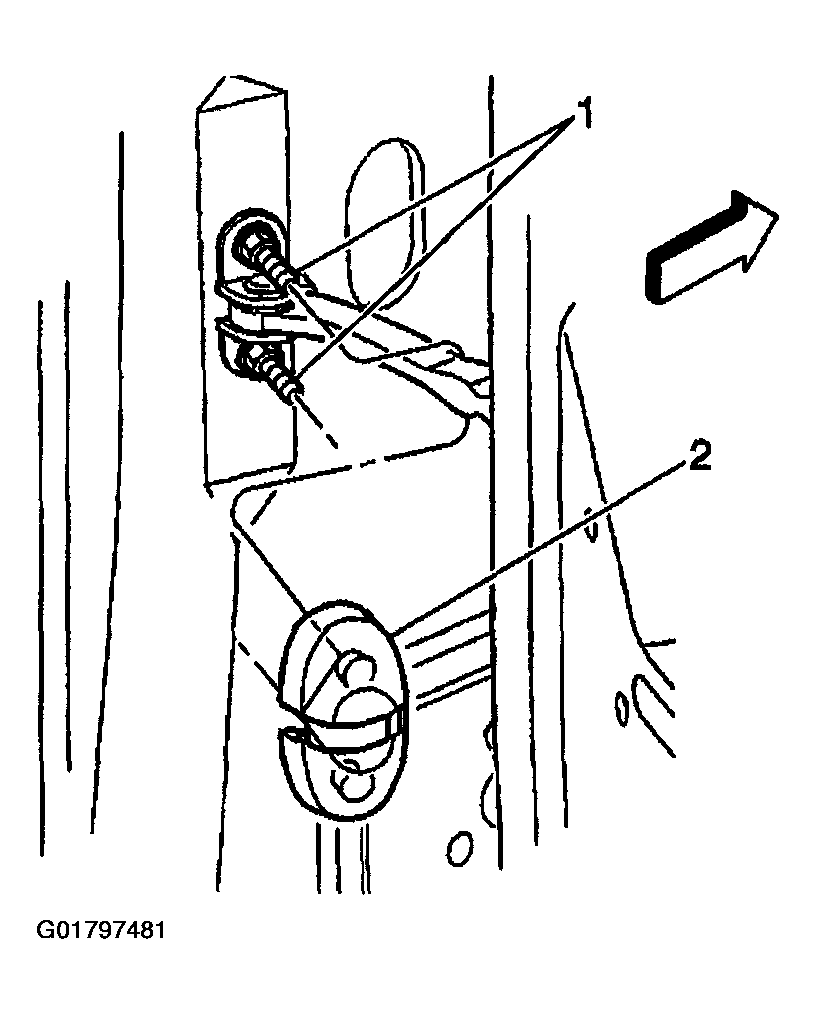

Fig 1: Locating Door Check Link Cover

G01797481

Courtesy of GENERAL MOTORS CORP.

Remove the door check link cover (2).

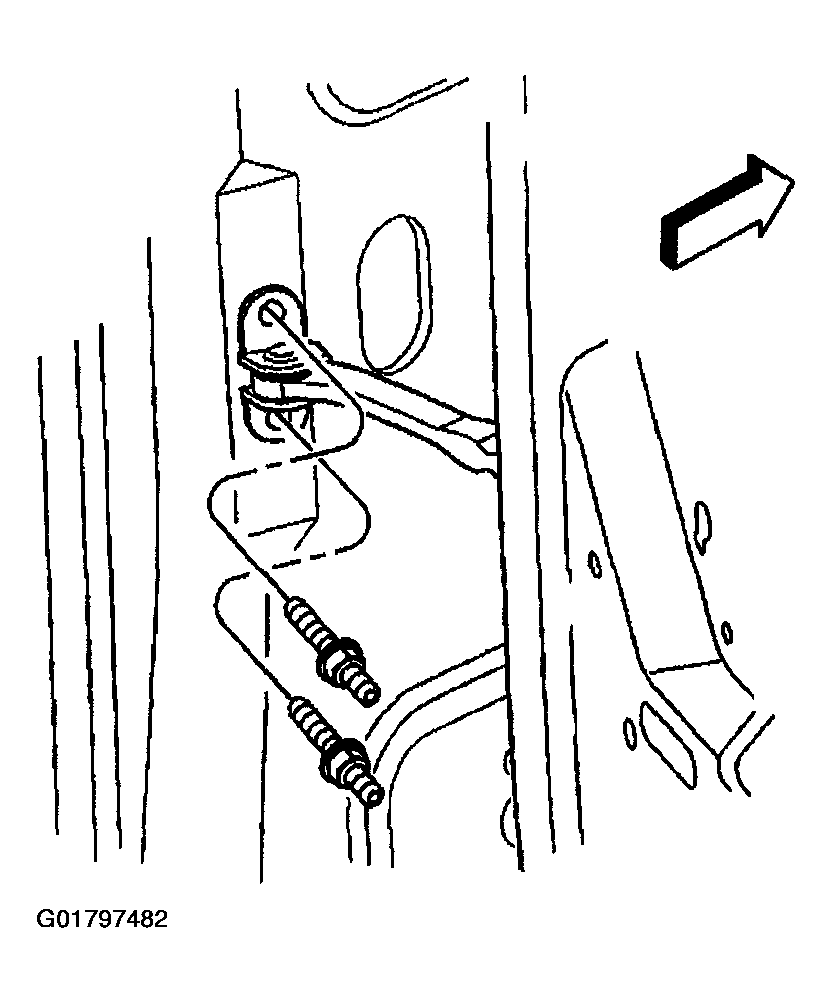

Fig 2: View Of Door Check Link Arm

G01797482

Courtesy of GENERAL MOTORS CORP.

Remove the two studs from the door check link arm.

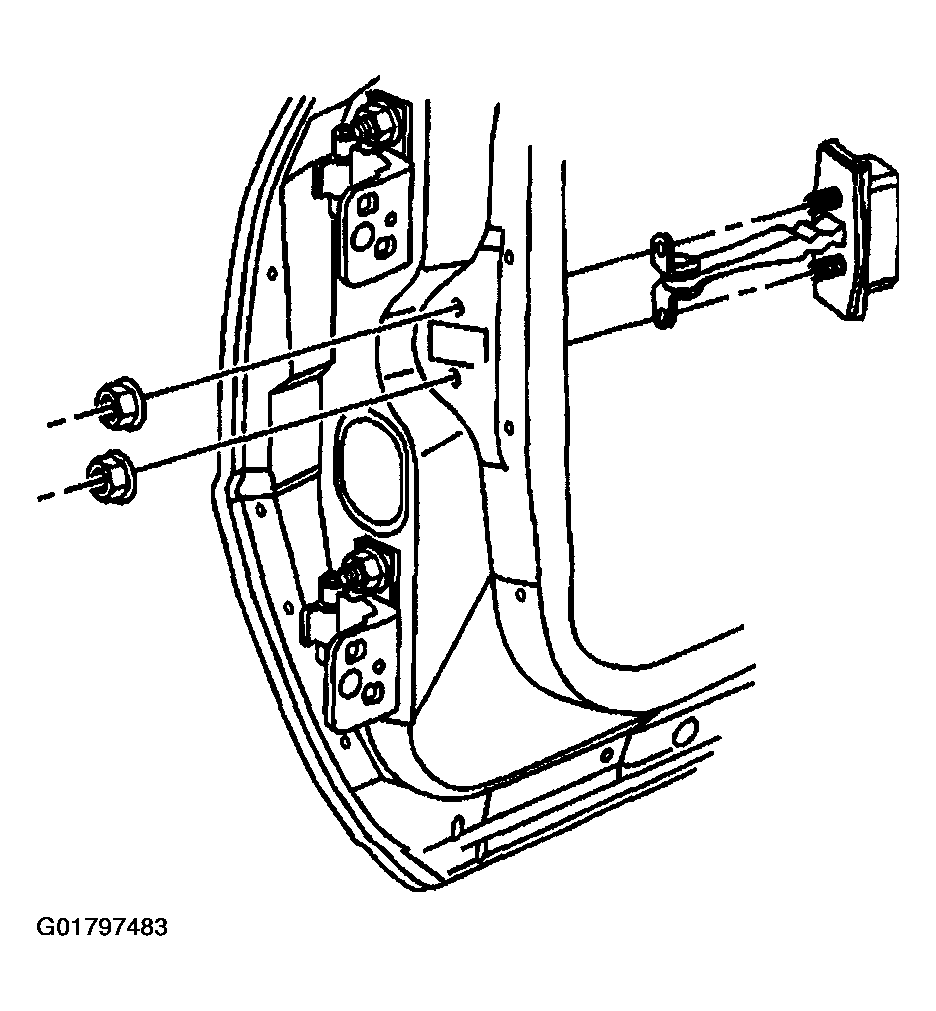

Fig 3: View Of Check Link

G01797483

Courtesy of GENERAL MOTORS CORP.

Note the position of the arrow on the check link arm to aid in reassembly.
Remove the two fasteners from the check link.
Remove the check link from the door.
