Removal Procedure

  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door  or Trim Panel Replacement - Side Rear Door .
  2. Remove the inside door handle. Refer to Door Handle Replacement - Front Inside  or Door Handle Replacement - Rear Inside .
  3. Remove the two screws from the switch.
  4. Remove the door lock switch from the inside of the door panel.

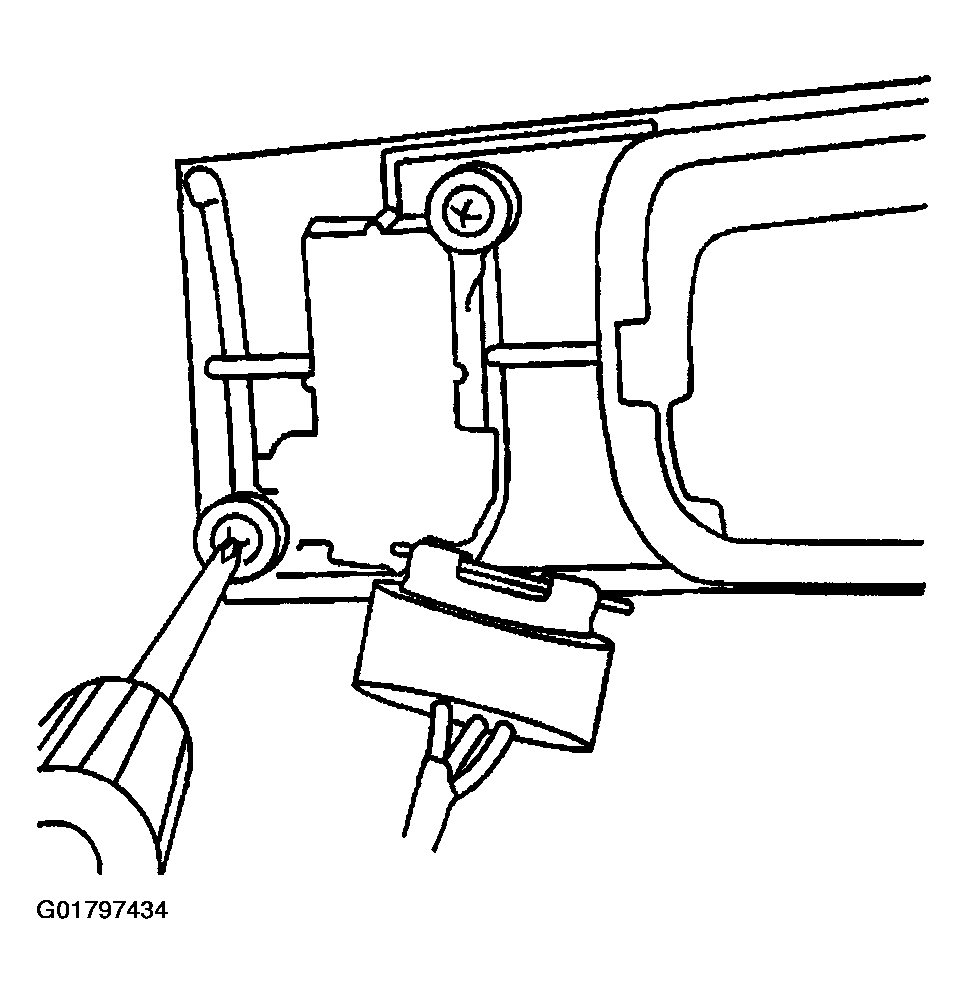

    Fig 1: View Of Power Door Lock Switch
    G01797434Courtesy of GENERAL MOTORS CORP.
