Removal Procedure

  1. Run the window to the full-down position.
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Remove the door window inner belt molding. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  4. Pull the window run channel (1) from the door window reveal molding.

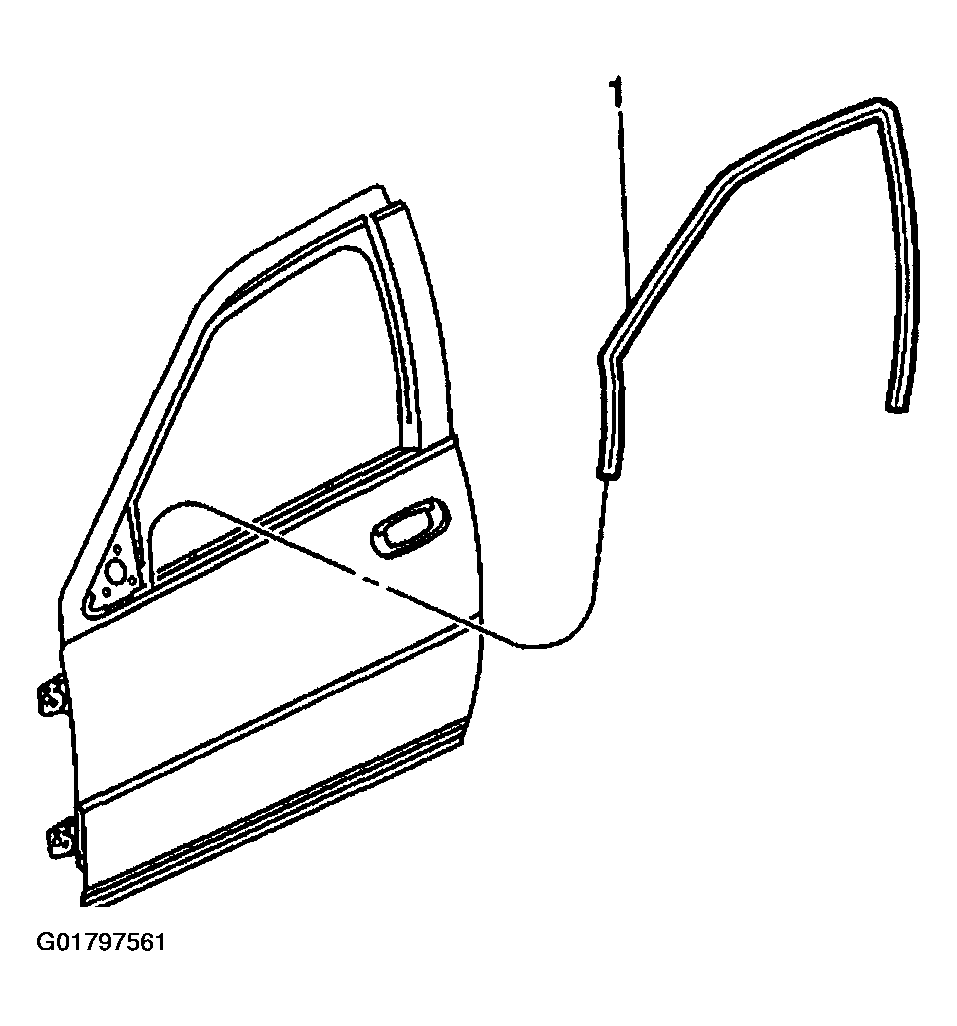

    Fig 1: Window Run Channel
    G01797561Courtesy of GENERAL MOTORS CORP.
