Door Lock/Indicator Schematics

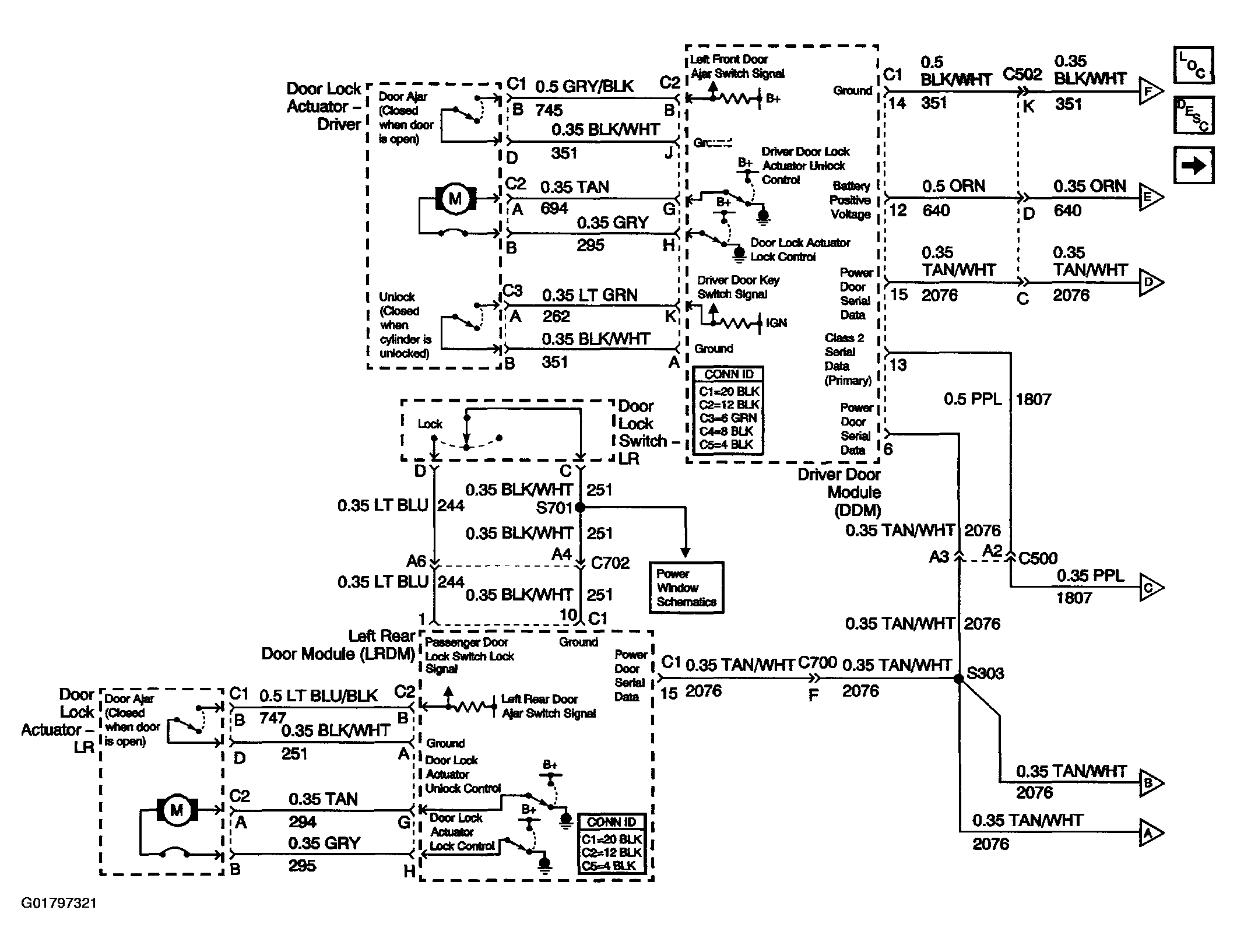

Fig 1: Door Lock/Indicator Schematics (Driver and LR Doors)

Courtesy of GENERAL MOTORS CORP.

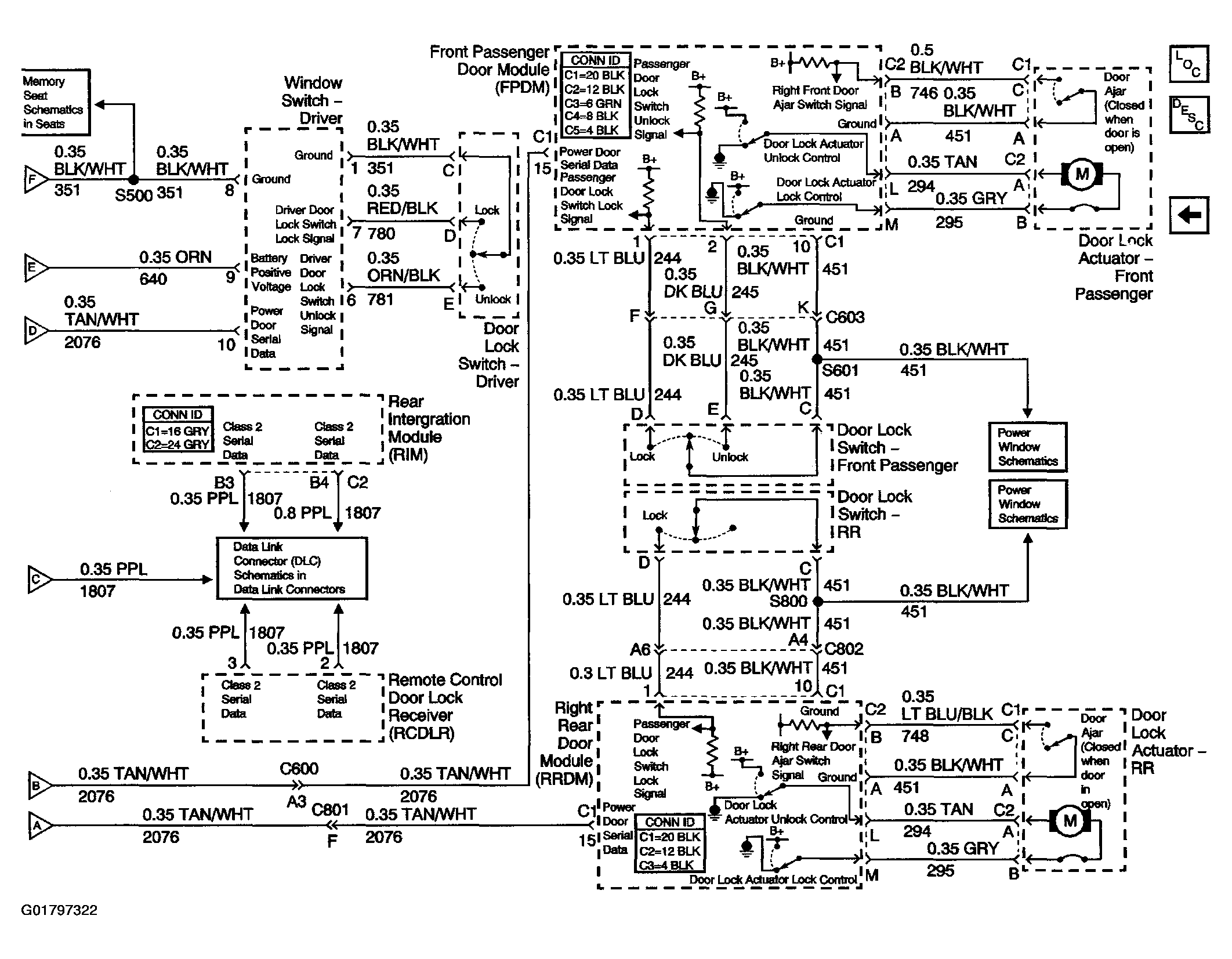

Fig 2: Door Lock/Indicator Schematics (Front Passenger & RR Doors)

Courtesy of GENERAL MOTORS CORP.
